4.2.3 Terminals and units
• Mount the terminal part on a DIN rail.
• Connect the cables to the correct terminals, see the figure below.
• Put the electronics part of the module on the terminal part.

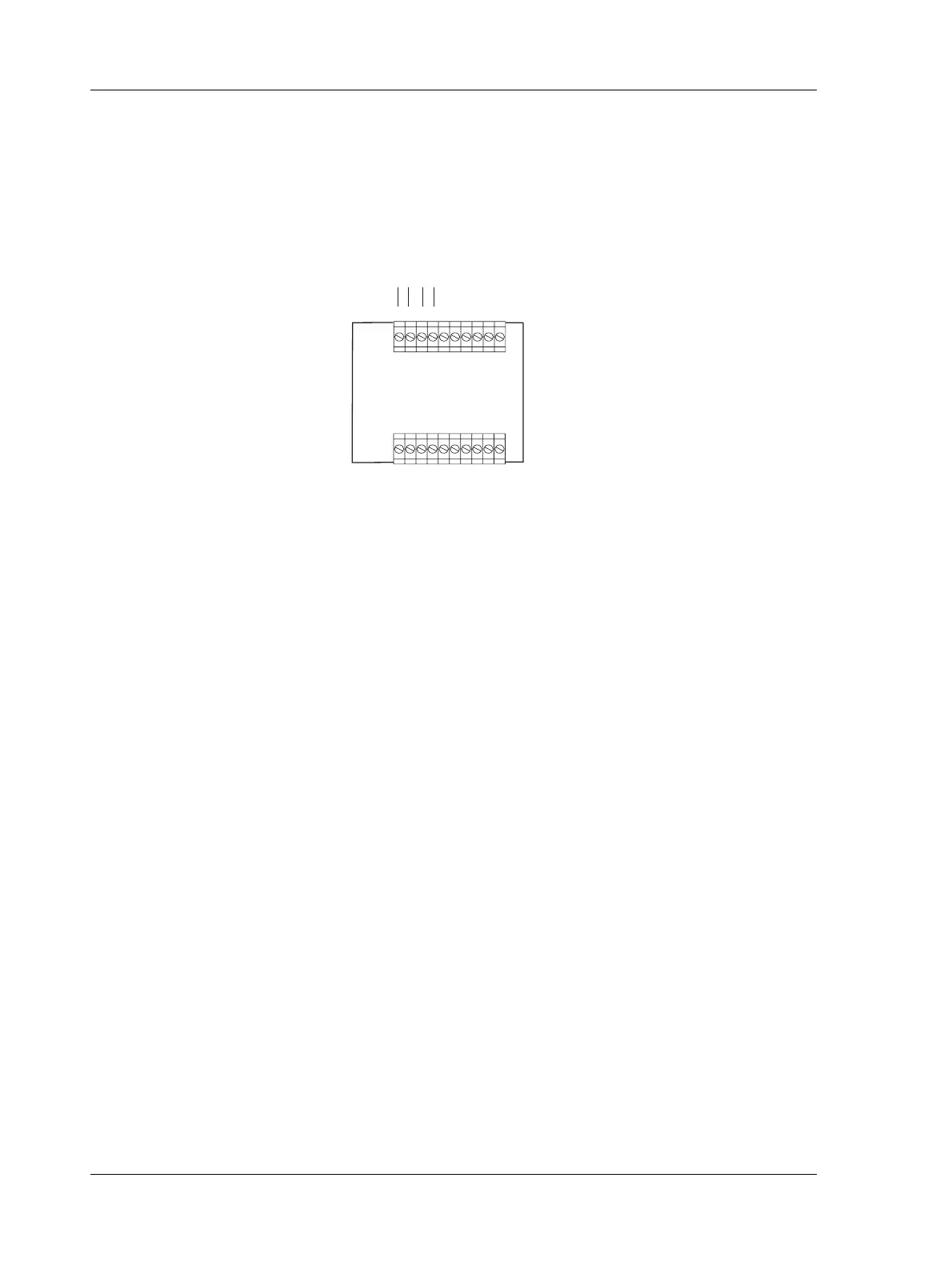

Fig. 4.13: The terminal blocks of a TAC Xenta 400
~ 0
24 V AC
(19-40 V DC)
}
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20
G G0 C1C2
Comm
}
