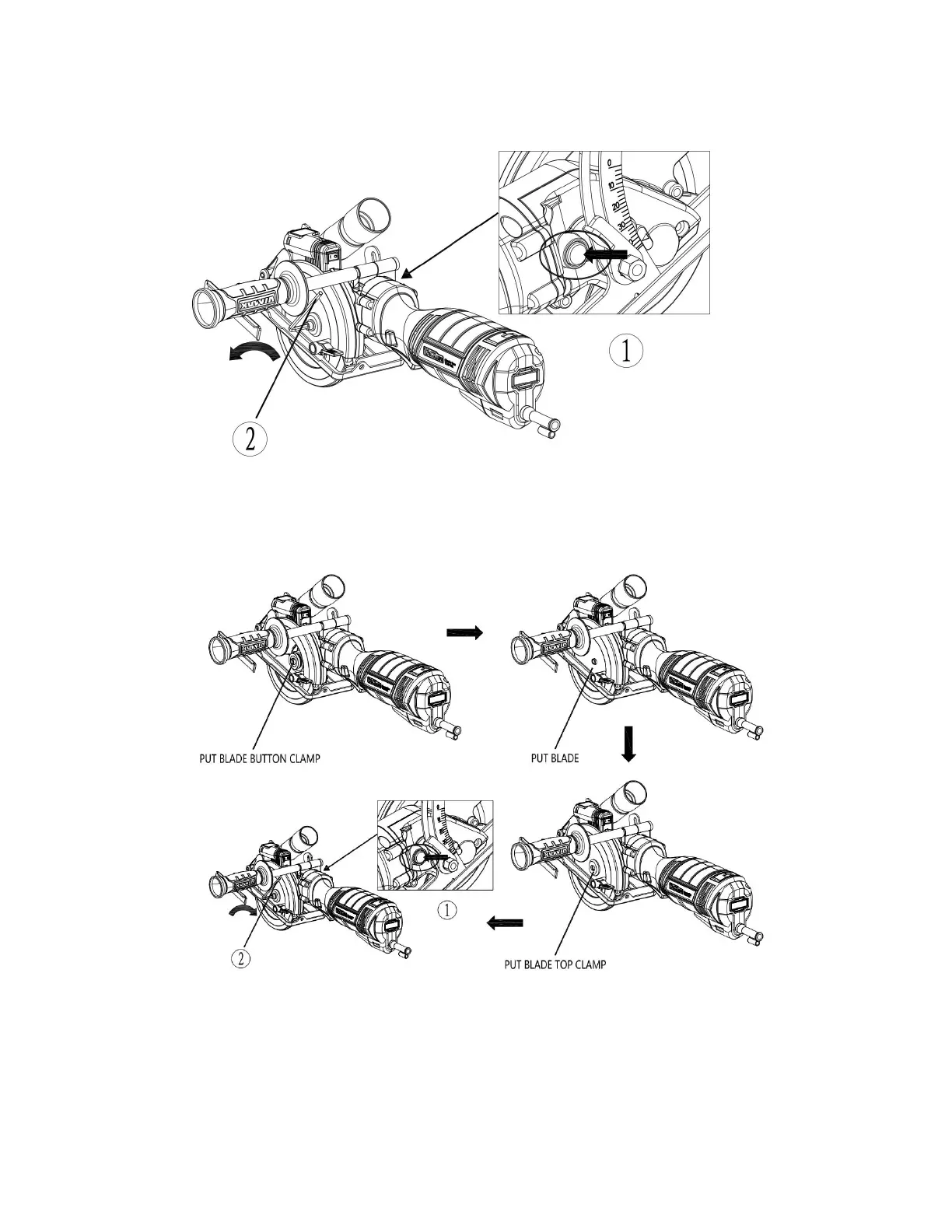

DISASSEMBLE BLADE
1) PRESS LOCK SHAFT BUTTON ;
2) LOOSE SCREW;
ASSEMBLE BLADE
PUT BLADE BUTTOM CLAMP
1) PRESS LOCK SHAFT BUTTON ;
2) WRENCH TIGHTEN SCREW; PUT BLADE TOP CLAMP
