DANGER: Any workpiece that is not adequately clamped in place or properly
supported for cutting may come loose or jamb the blade, causing serious injury.
Never hold the workpiece in your hand.
4. Make sure there are no nails, screws, clamps or foreign materials in the path of
the saw blade.
5. Turn the laser ON.
6. Place the front edge of the sole plate on the workpiece.
7.While firmly gripping the saw, and with the blade NOT in contact with the surface
to be cut, start the saw by depressing the lock-off button and then the trigger switch.
8. Once the saw has reached full speed, gradually bring the moving blade into
contact with the workpiece at the appropriate location.
NOTE: To align the saw blade with the cutting mark, use the guide marks on the
front of the sole plate (Fig. 9). Use the 0° cutting mark (1) and the laser line (2) for
right angle cuts. Use the 45° mark (3) for 45° bevel cuts. The 45° mark will allow for
the extra material needed for the angle cut. Always make a test cut on a scrap
workpiece before cutting the new material.
ASSEMBLY AND OPERATING GENERAL CUTTING - cont'd
WARNING: Do not force the circular saw. Use only enough force to keep the
blade cutting at full speed. Excessive pressure on the blade will cause it to slow
down and overheat, resulting in poor cut quality and damage to the motor.
9. Turn laser OFF.

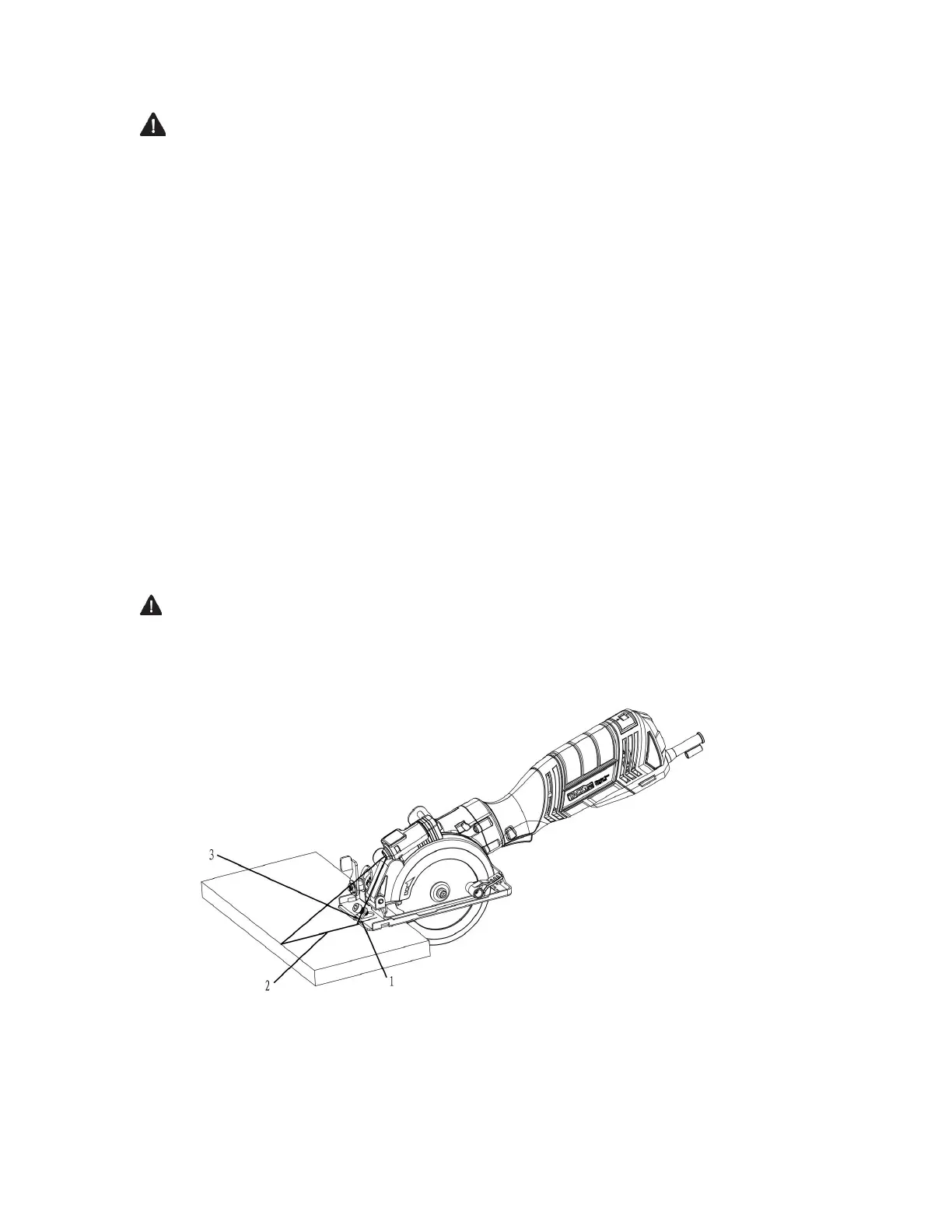

Fig.9
PLUNGE CUTTING
