TM8100 Mobile Radio Service Manual Disassembly and Re-assembly of Radio 139
May 2004 © Tait Electronics Limited

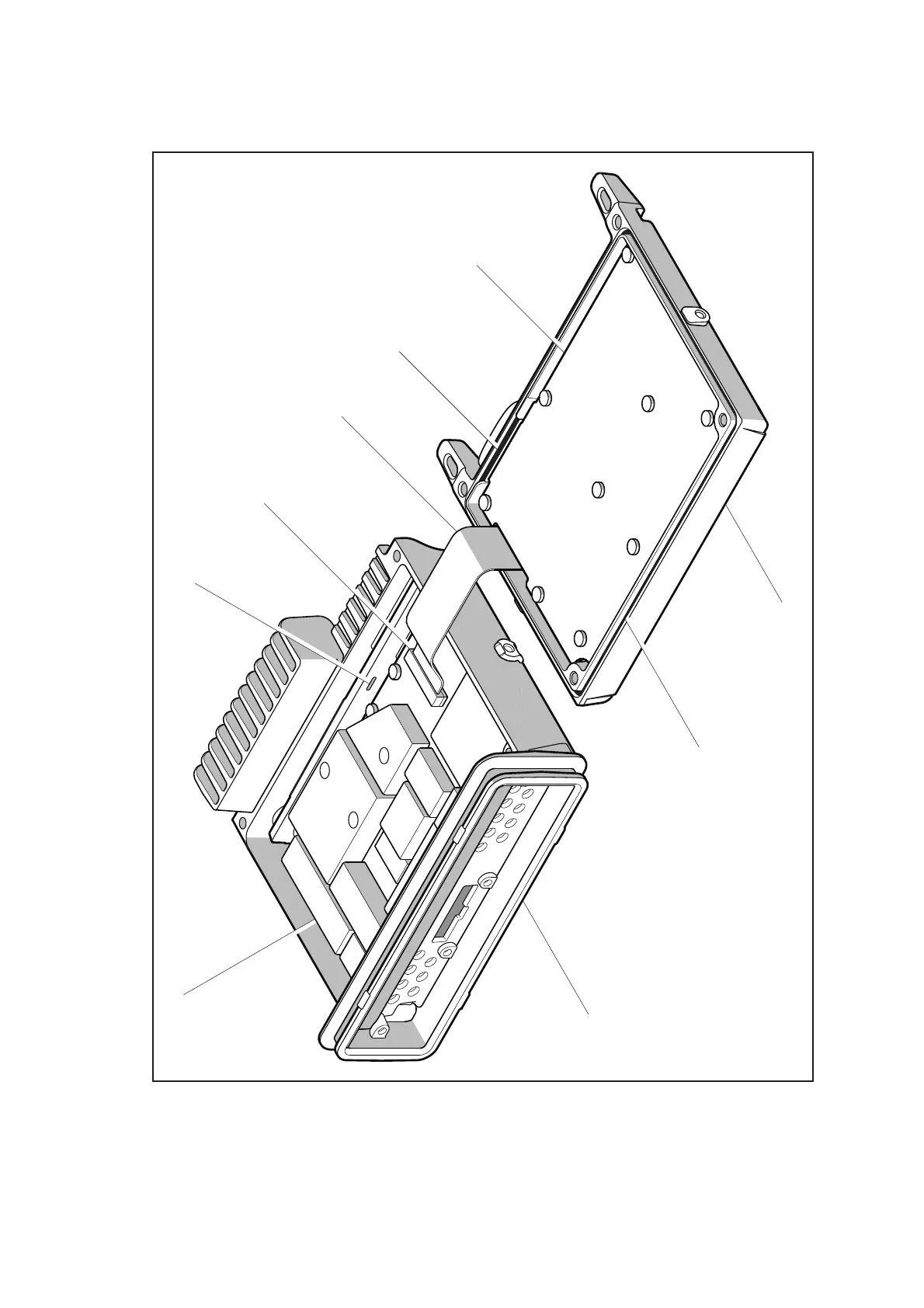

Figure 6.7 Illustration of the lid removed from the chassis of the radio body, with an options board
installed in the lid
SLOT IN HEAT-TRANSFER BLOCK FOR SCREWDRIVER
MAIN SEAL
CHASSIS
LID
MAIN BOARD
INTERNAL OPTIONS BOARD
MAIN SEAL
OPTIONS LOOM
INTERNAL OPTIONS CONNECTOR
