206 Diagnosis of Faults on Main Board TM8100 Mobile Radio Service Manual
May 2004 © Tait Electronics Limited

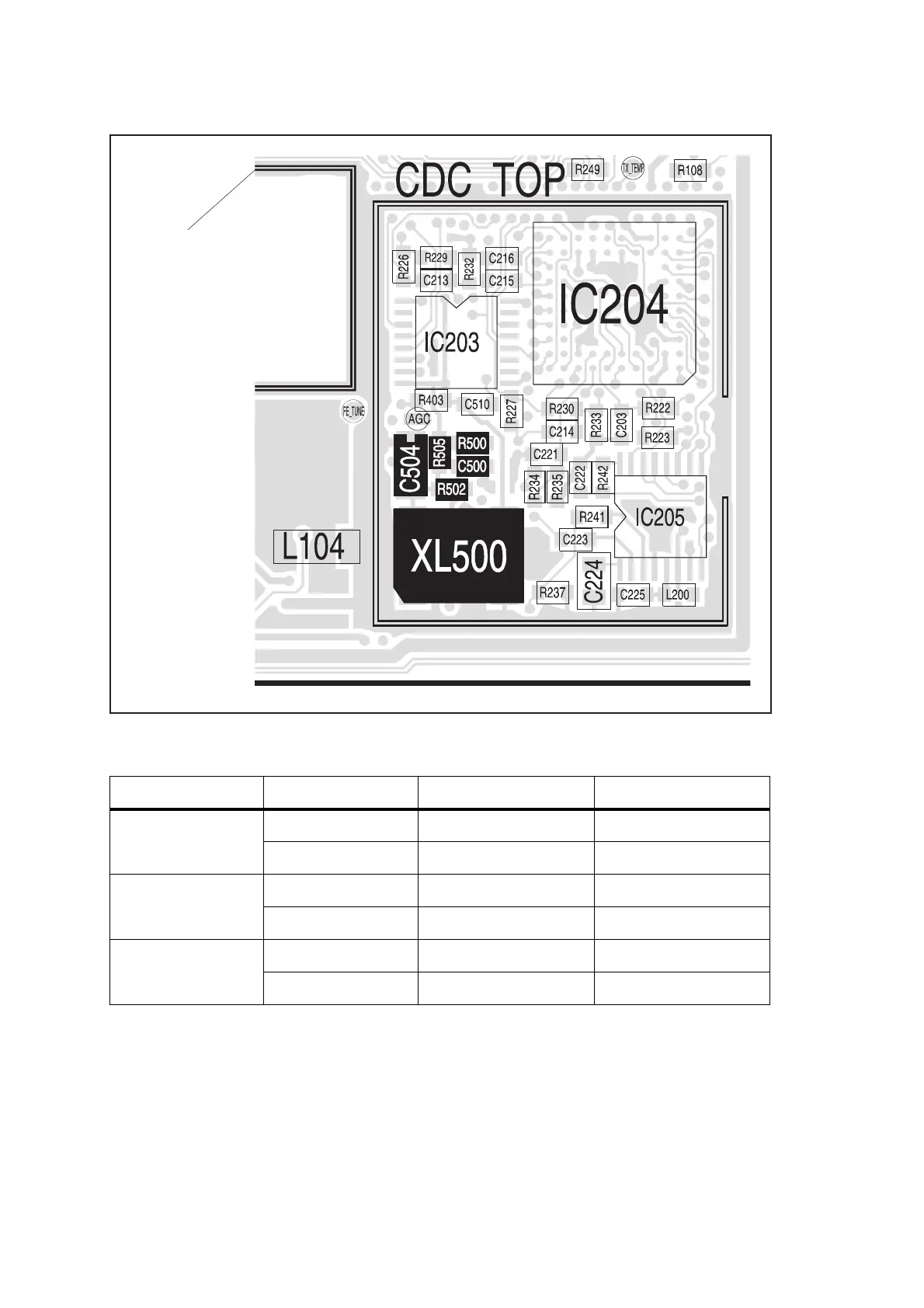

Figure 9.16 TCXO circuitry under the CDC TOP can
Table 9.5 Mute data
Channel spacing SINAD (dB) Minimum noise value Maximum noise value
Narrow (12.5 kHz) 8 1900 2300
20
250 500
Medium (20 kHz) 8
3700 4200
20
1000 1500
Wide (25 kHz) 8
5500 7300
20
2200 3700
IF TOP CAN
