210 Diagnosis of Faults on Main Board TM8100 Mobile Radio Service Manual
May 2004 © Tait Electronics Limited

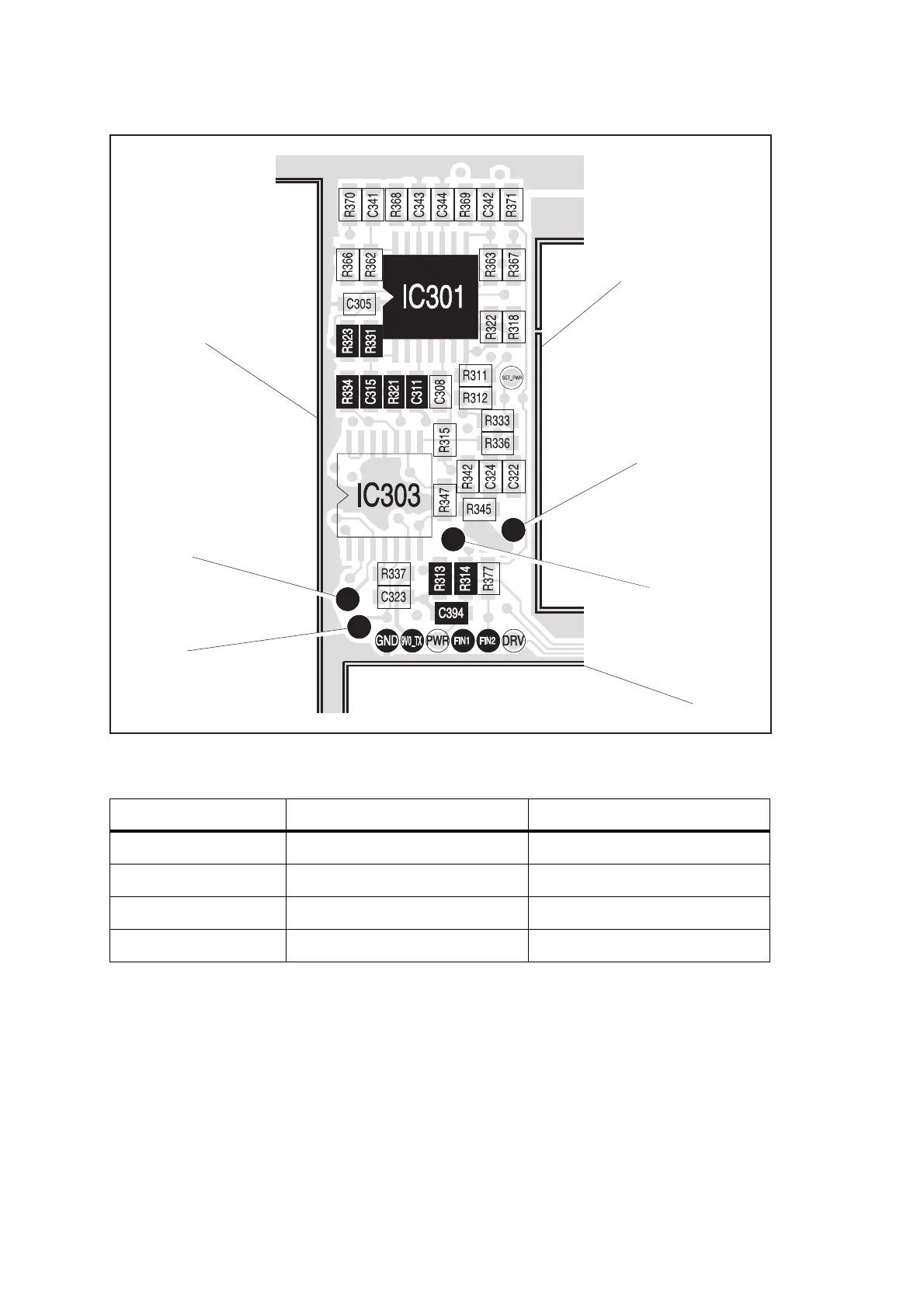

Figure 9.17 Test points and components of the shaping filter
Table 9.6 Voltages in millivolts corresponding to nominal forward and reverse powers
Frequency band Forward power (318 command) Reverse power (319 command)
B1 1200 to 1900 < 500
D1 1700 to 2400 < 700
H5 2600 to 3400 < 1000
H6 2900 to 3800 < 1000
DIRC TOP CAN
IF TOP CAN
VCO TOP CAN (UHF ONLY)
D_TX_INH TEST POINT
TX_INH TEST POINT
REV_PWR
TEST POINT
FWD_PWR
TEST POINT
