214 Diagnosis of Faults on Main Board TM8100 Mobile Radio Service Manual
May 2004 © Tait Electronics Limited

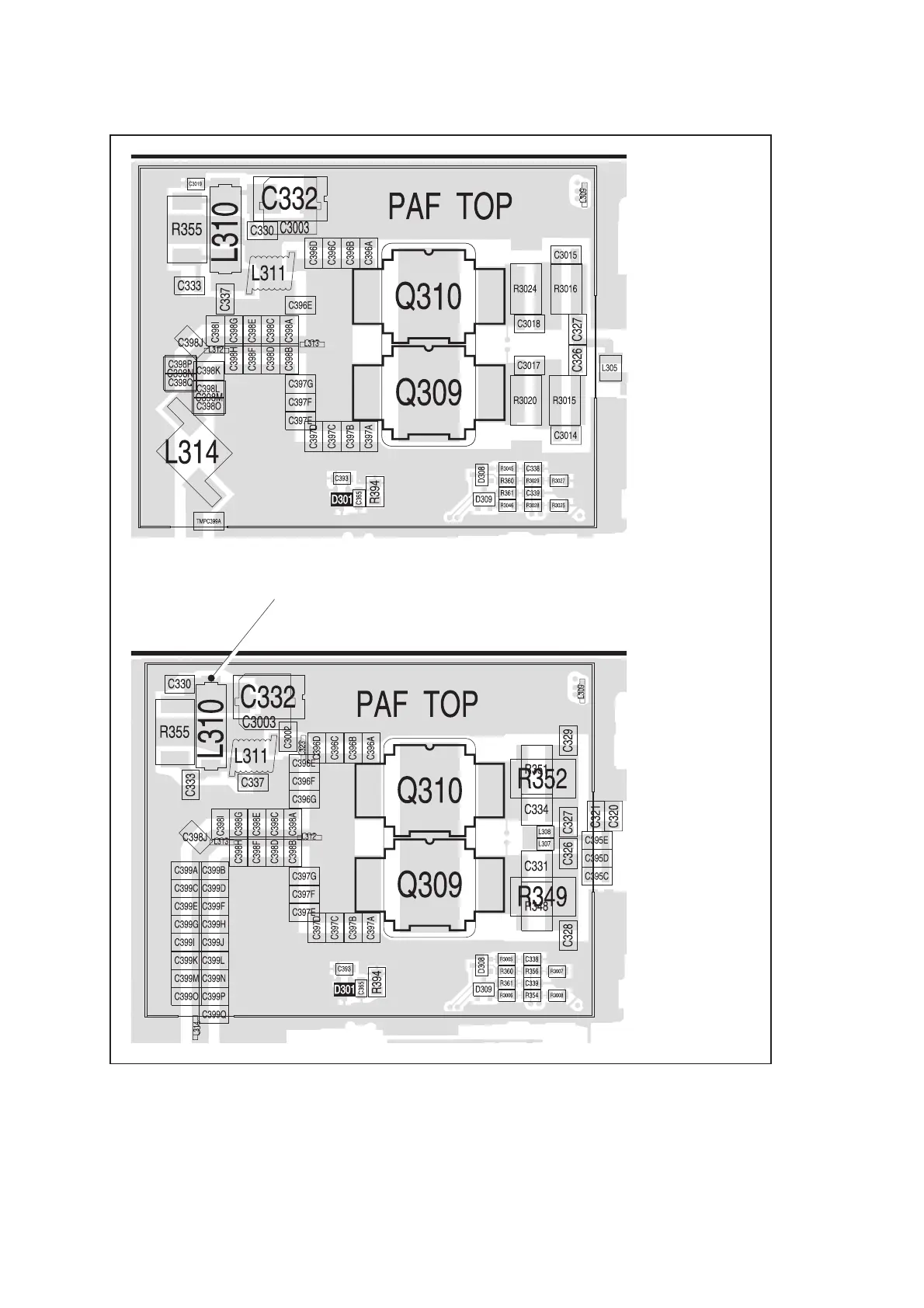

Figure 9.18 PA circuitry under the PAF TOP can (B1, H5 and H6 bands)
H5, H6 BANDS
B1 BAND
MEASUREMENT POINT ON L310
(B1 BAND SIMILAR)
