216 Diagnosis of Faults on Main Board TM8100 Mobile Radio Service Manual
May 2004 © Tait Electronics Limited

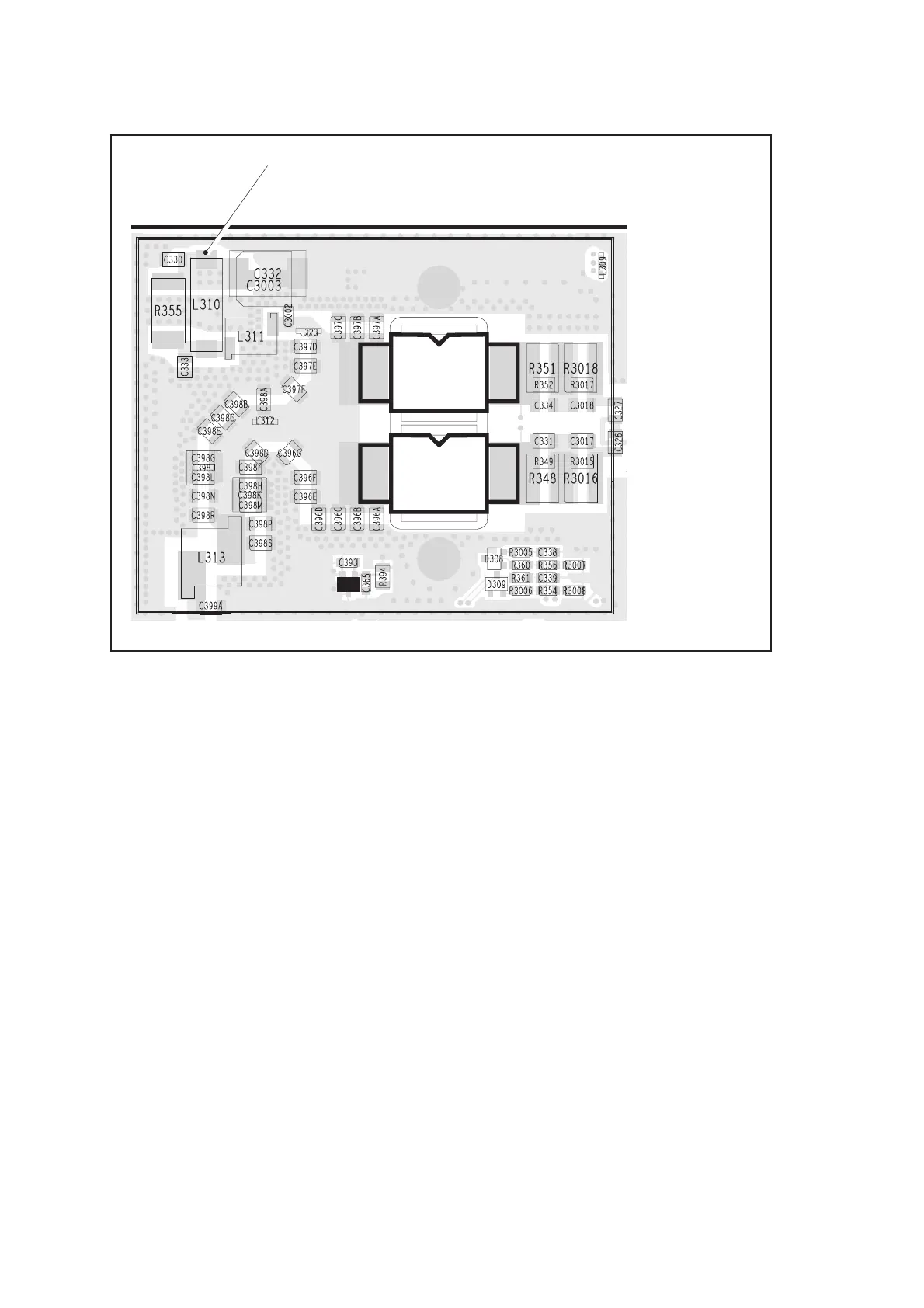

Figure 9.19 PA circuitry under the PAF TOP can (D1 band)
PAF TOP
D301
MEASUREMENT POINT ON L310
Q310
Q309
D1 BAND
