218 Diagnosis of Faults on Main Board TM8100 Mobile Radio Service Manual
May 2004 © Tait Electronics Limited

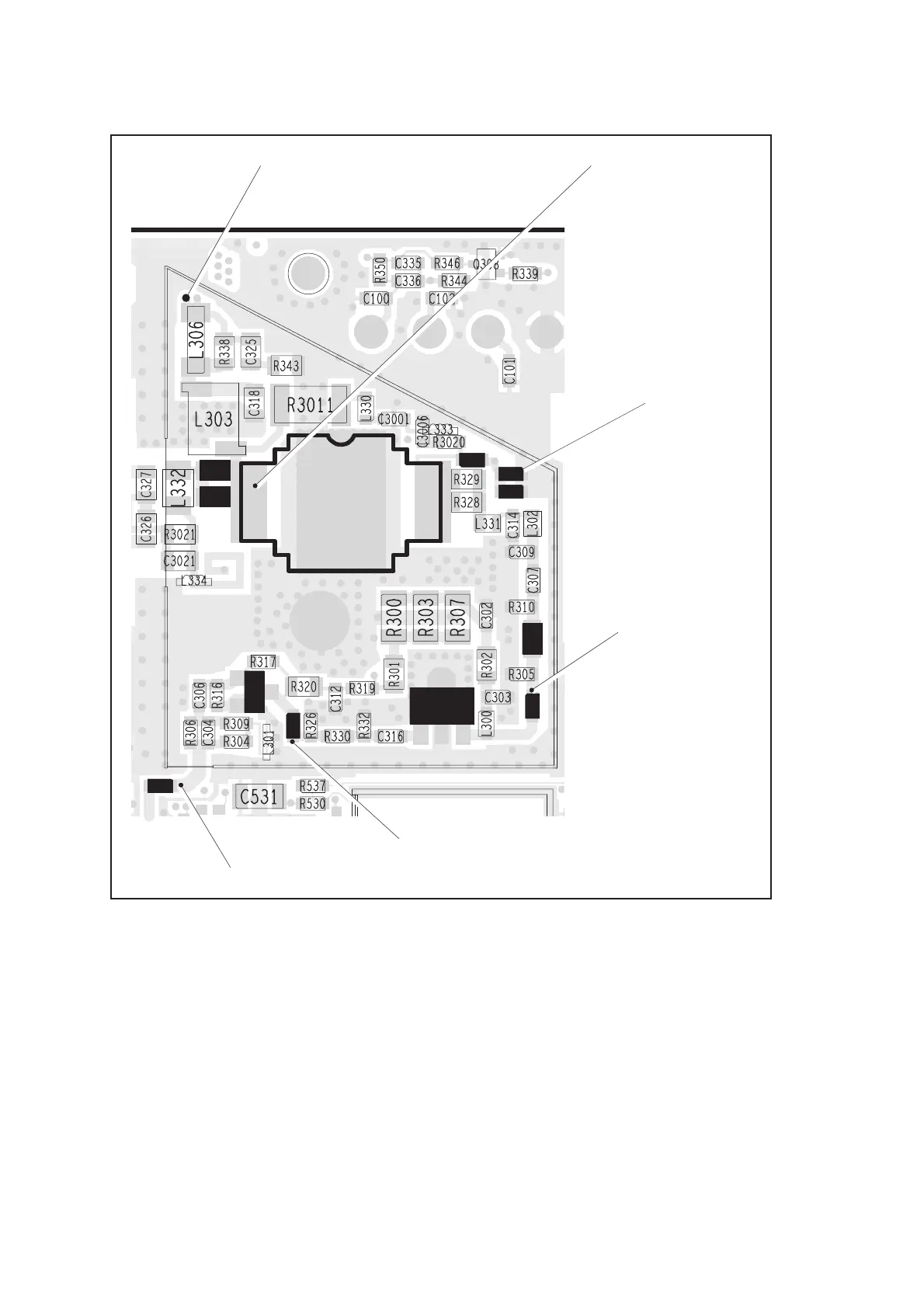

Figure 9.21 PA driver circuitry under the PAD TOP can (D1 band)
R308
R324
C310
R327
C301
Q303
C313
Q300
C300
C317
C389
Q306
PAD TOP
SYNTHESIZER OUTPUT AT C300
BUFFER OUTPUT AT C313
MEASUREMENT POINT ON L306 DRIVER OUTPUT
EXCITER OUTPUT AT C301
D1 BAND
COMPONENTS
C310, R324, R327
