90 General Information TM8100 Mobile Radio Service Manual
May 2004 © Tait Electronics Limited

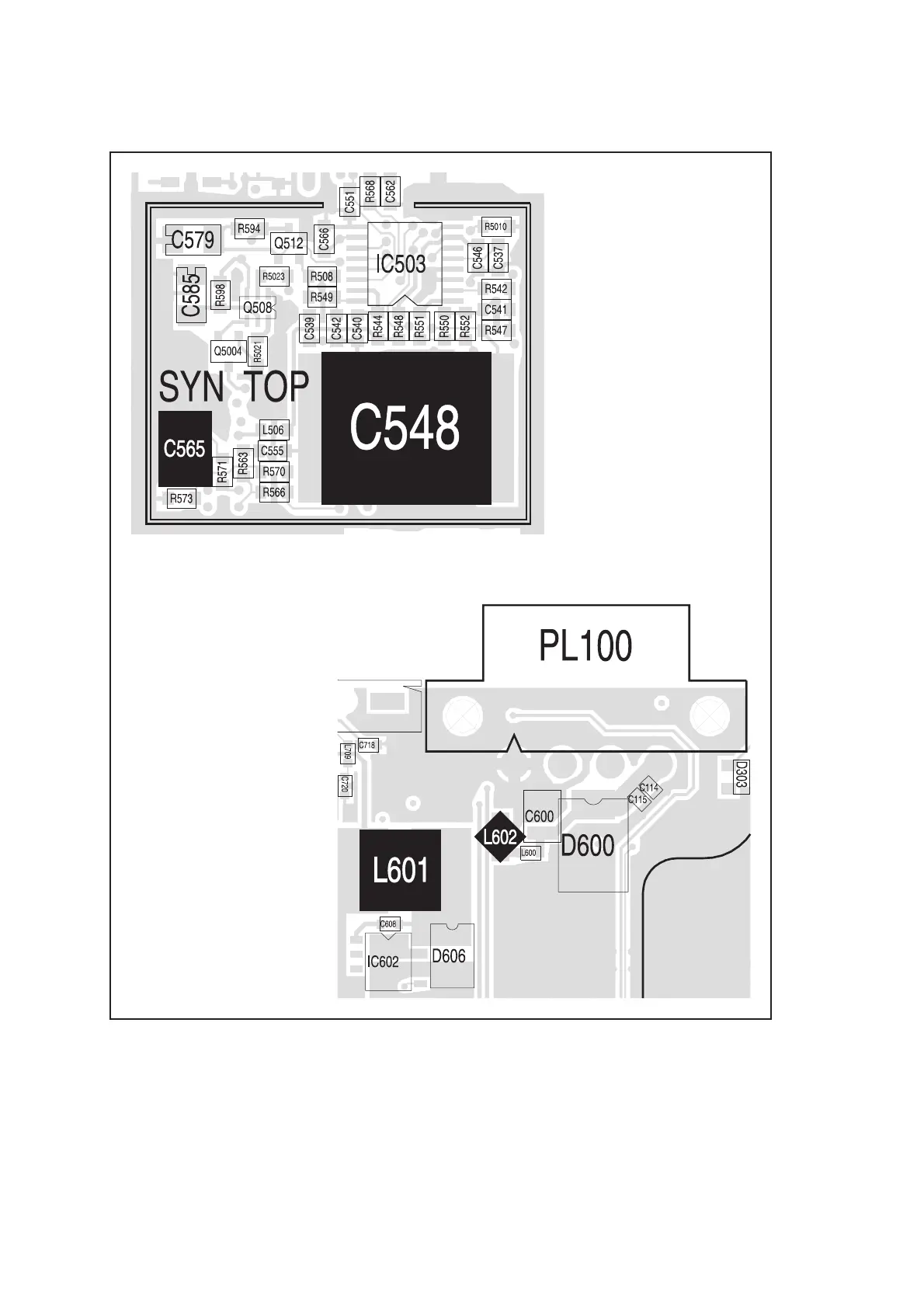

Figure 4.2 Locations of the capacitors C548 and C565 and the inductors L601 and L602 on the main
board
VHF BOARD
(UHF BOARD SIMILAR)
UHF BOARD
(VHF BOARD SIMILAR)
