12 Installation Options TM9300/TM9400 Installation Guide
© Tait Limited December 2015
For full details on mounting the U-cradle install kit and radio, refer to
“Mounting the U-Cradle” on page 28 and “Installing the Radio” on
page 37.

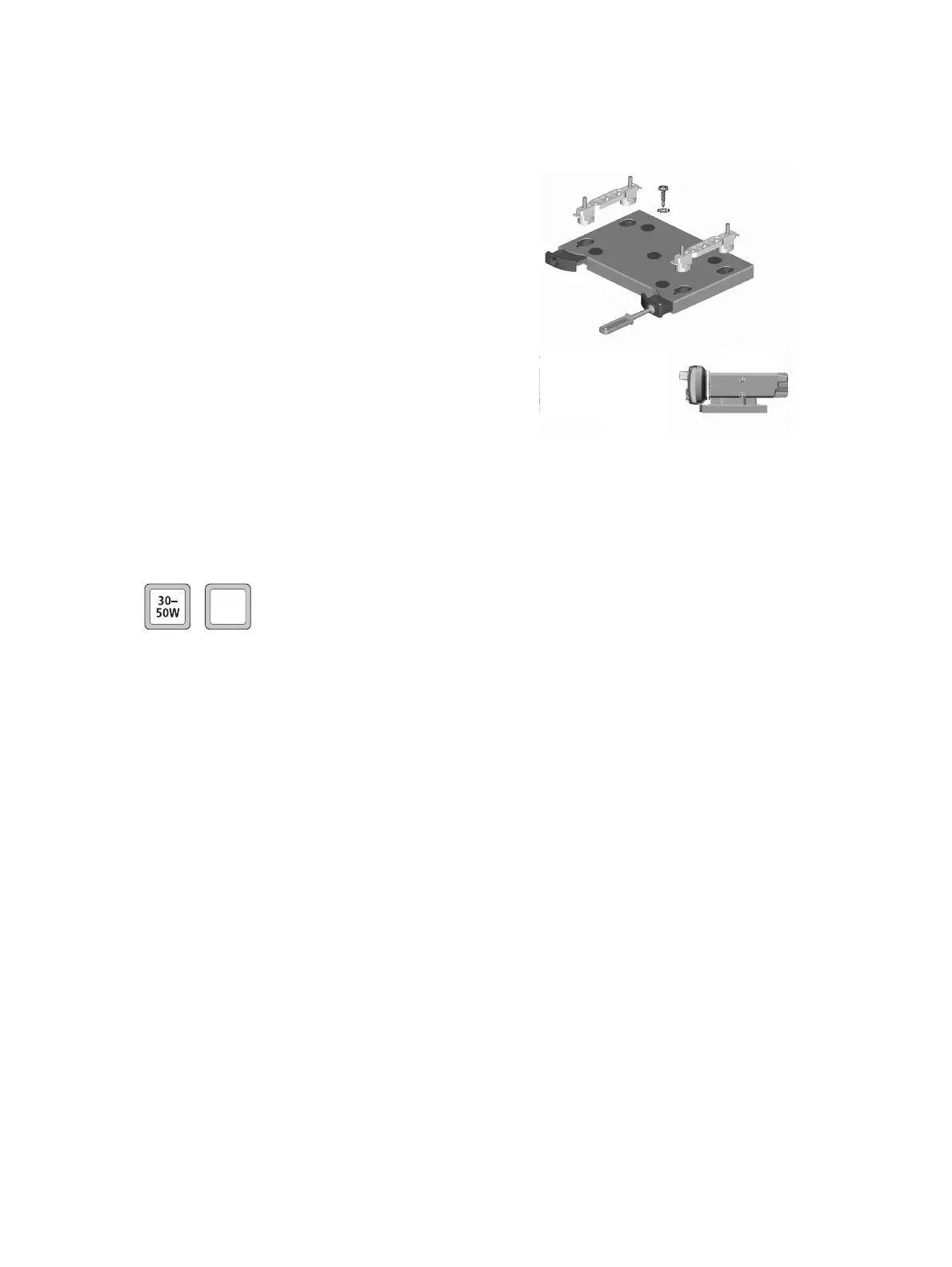

Security Bracket The TMAA03-02 security bracket
can be used in place of the standard
U-cradle in locations where you
want to stop opportunistic removal
of the radio by a third party, or where
you want to have a quick release
setup that allows you to swap over
radios (e.g. leasing situation).
The security bracket also provides
electrical isolation to the radio.
Refer to the installation instructions
(402-00014-xx) provided with the
security bracket for full details.
Re-install Kits Re-install kits allow you to remove radios from one installation and re-
install them at another location without having to remove the wiring from
the old installation.
The following kits are available:
■ TMAA03-20 (30-50W radios with BNC antenna connector)
■ TMAA03-10 (30-50W radios with mini-UHF antenna connector)
■ TMAA03-11 (25W radios with BNC antenna connector)
■ TMAA03-15 (25W radios with mini-UHF antenna connector)
Re-install kits contain the parts left behind after removing the radio:
■ power cable with DC connector
■ fuses
■ in-line fuse holders
■ receptacles for a remote speaker (remote speaker not included)
■ crimp terminals for a remote speaker
■ antenna connector
Assembled
25W
To Next Page
