TM9300/TM9400 Installation Guide Installing the Radio 39
© Tait Limited December 2015
4.11 Installing the Microphone
This section describes the radio’s microphone connector and the
information required to connect the microphone and install the microphone
clip.
Notice The microphone grommet must be installed whenever the
microphone is plugged into the microphone socket:
■ to prevent damage to the microphone socket when there is
movement of the microphone cord, and
■ to ensure that the control head is sealed against water, dust and
other environmental hazards
Connecting the
Microphone
1. Plug the microphone into the microphone socket.
2. Slide the grommet along the microphone cord and push two adjacent
corners of the grommet into the microphone socket cavity.
3. Squeeze the grommet and push the remaining corners into position.
4. Check that the grommet is seated correctly in the cavity.
Installing the
Microphone Clip
Warning Safe radio mounting! Mount the microphone where it
will not interfere with:
■ the deployment of passenger airbags
■ the vehicle operator controls
■ the vehicle operator’s view
Notice Only install the microphone clip provided. If a non-standard
microphone clip is used, the correct operation of the microphone hook-
switch cannot be guaranteed.
Install the microphone clip in the most convenient location using the
screws provided. The microphone must be within reach of the user but in
such a position that the PTT (press-to-talk) key cannot be inadvertently
activated or jammed.

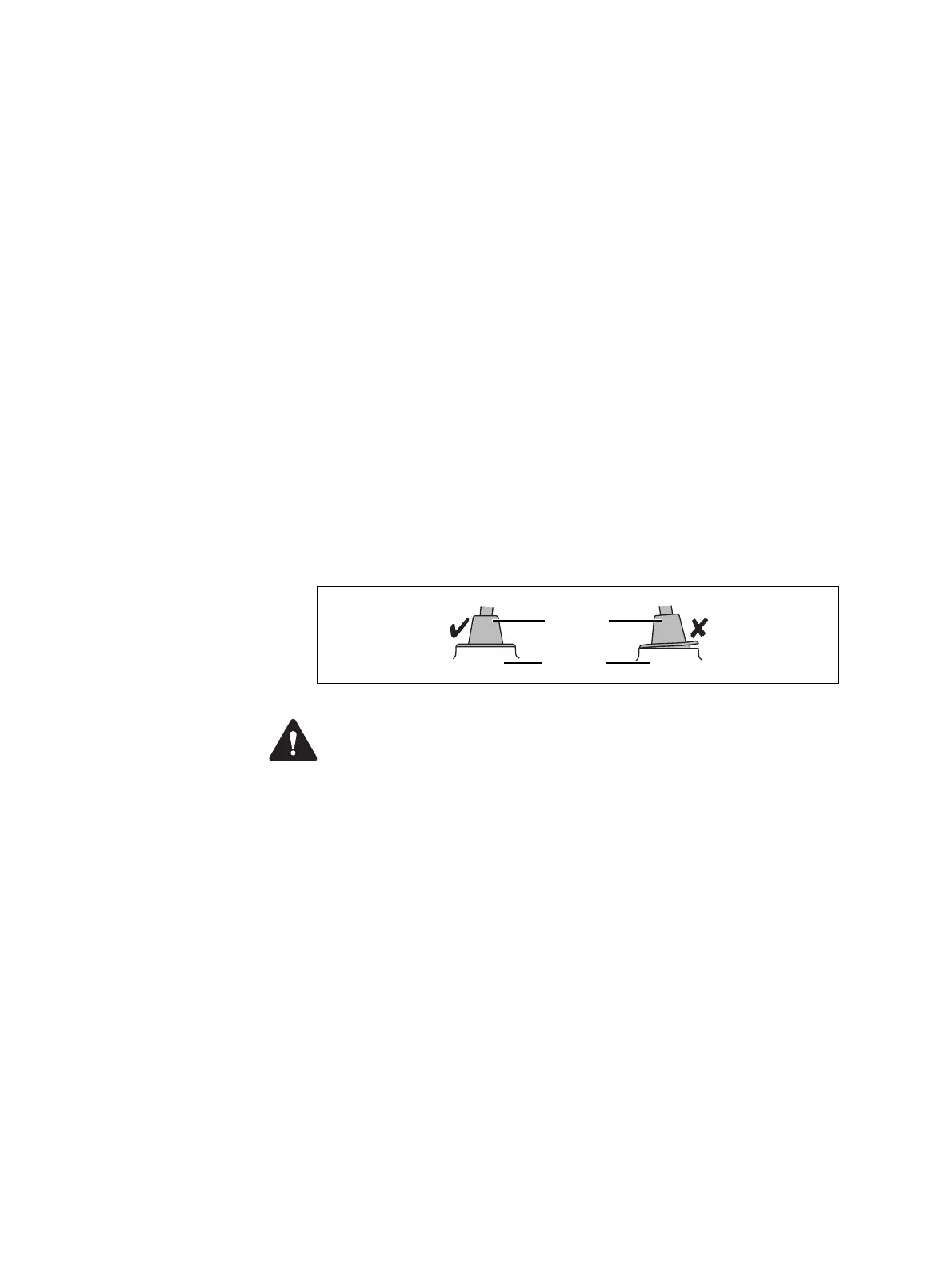

Figure 4.7 Correct remote cable grommet seating
microphone
grommet
control head
