TM9300/TM9400 Installation Guide Installation Options 13
© Tait Limited December 2015
2.2 Remote Control Head
The T02-00061-1xxx remote head kits and the T02-00061-2xxx remote
head upgrade kits can be used to install the graphical control head remotely
from the radio body.
The remote head kits provide a complete remote head whereas the remote
upgrade kits provide a remote control head interface which is fitted to an
existing local control head.
Kits for remote head installations < 20ft (6m) contain one remote cable and
no control head interface box. Kits for remote head installations > 20ft
(6m) contain two remote cables and one control head interface box.

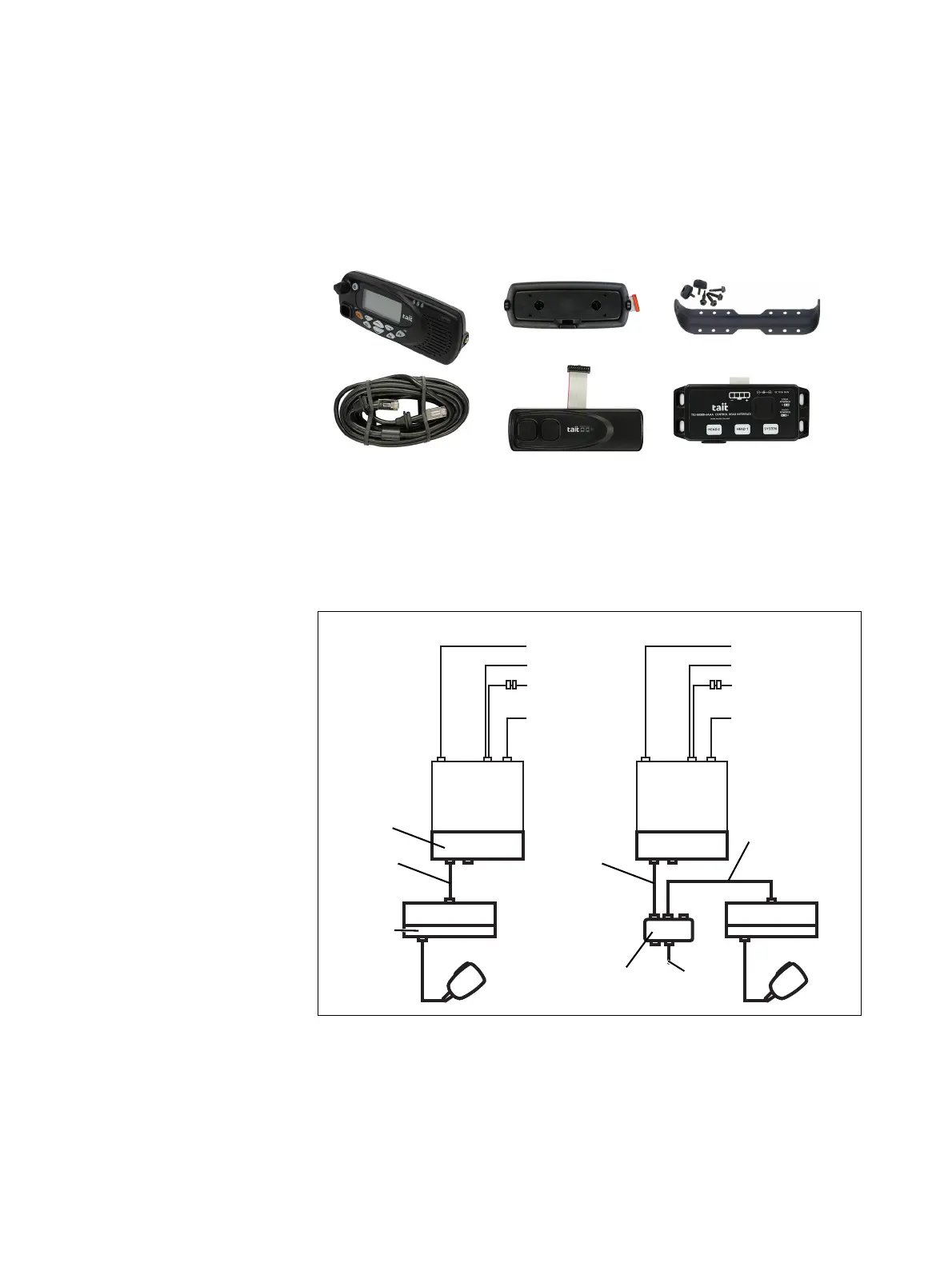

The following diagram summarizes how the components are installed.
Refer to the installation instructions (402-00088-xx) provided with these
kits for full details.
remote head
remote U-cradle (incl. screws)
remote control head interface
remote cable
remote body interface
control head interface box
(incl. power cable)
remote head
remote body
interface
to antenna
to power supply
to external speaker
(optional)
radio body
to
power
supply
control head
interface box
to external I/O
(optional)
remote cable
<20ft (6m)
Remote head installations <20ft (6m) Remote head installations >20ft (6m)
remote cable
<98ft (30m)
to SYSTEM connector
radio body
remote cable
<20ft (6m)
to HEAD 1 connector
