26 Installing the Radio TM9300/TM9400 Installation Guide
© Tait International Limited August 2020

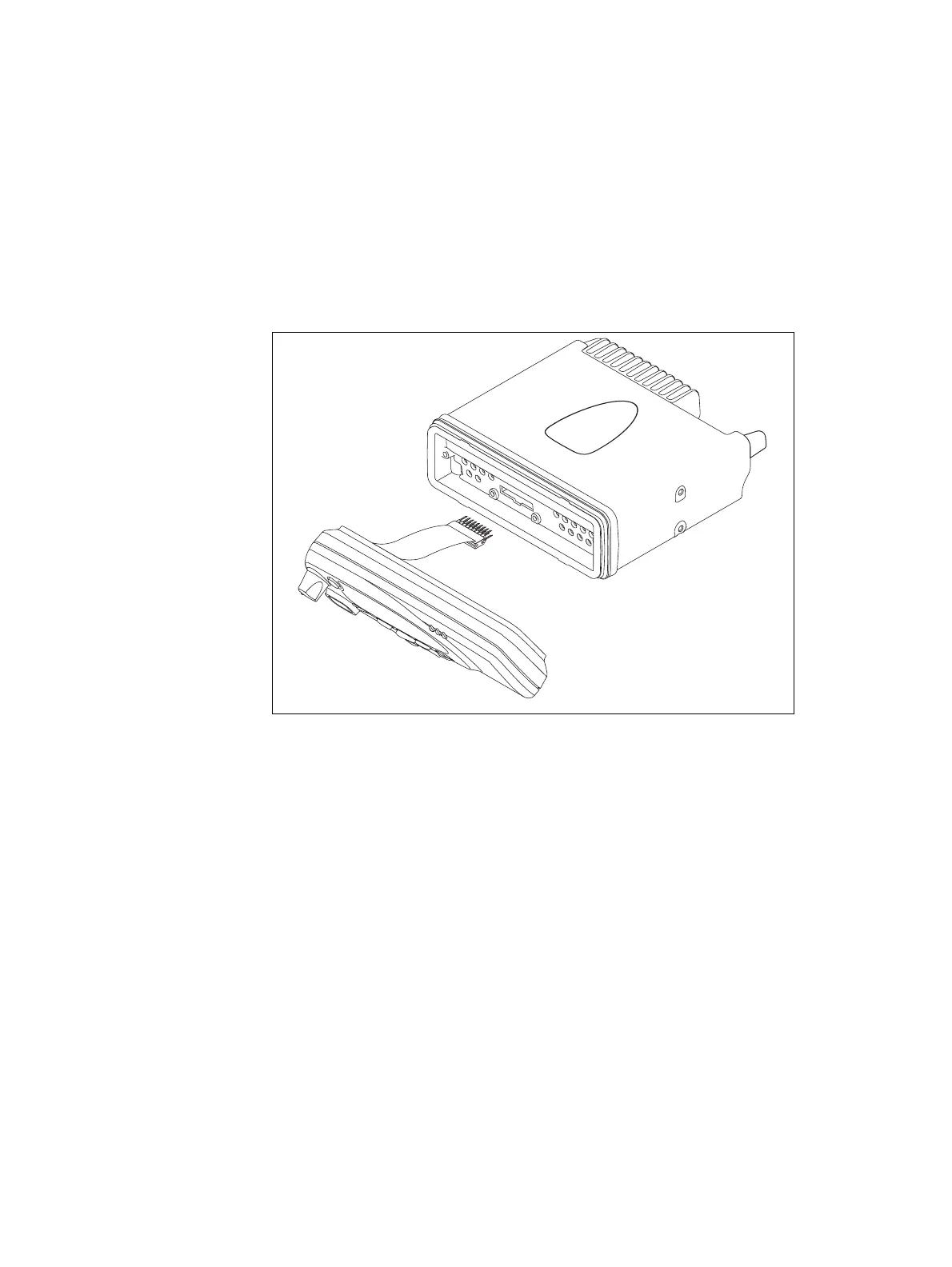

4 Installing the Radio
This section describes the installation of the mobile radio using the
U-cradle. However, the principles described in this manual also apply to
other installation options.
For information on other types of installation, refer to “Installation
Options” on page 12 and the installation instructions provided with the
equipment.
Notice TM9300 only
Ensure that the radio has an analog conventional channel programmed
and available to the installer so that the installation testing can be com-
pleted correctly (see “Checking the Installation” on page 41). TM9300
TDMA digital channels do not give a true power level reading on an
in-line power meter.
4.1 Installation Tools
The following tools are required to install the radio:
■ drill and drill bits
■ Pozidriv screwdriver
■ 5/16 inch (8mm) socket
■ RF connector crimp tool
■ fuse crimp tool
■ in-line RF power meter capable of measuring forward and reflected
power at the operating frequency of the radio
4.2 Checking the Vehicle Before Installation
Complete a pre-installation check of all vehicular functions.
