T2200P serial weighing indicator user’s manual
- 3 -
SECTION 3 INSTALLATION
The weighing indicator should be sited in a location that will not degrade the
accuracy.
Avoid extremes of temperature. Do not place in direct sunlight or near air conditioning
vents.
Avoid unsuitable tables. The tables or floor must be rigid and not vibrate. Do not
place near vibrating machinery.
Avoid unstable power sources. Do not use near large users of electricity such as
welding equipment or large motors.
Avoid high humidity that might cause condensation. Avoid direct contact with water.
Do not spray or immerse the scales in water.
Keep the weighing indicator clean.
Verify the voltage showing on the label matches the voltage in your area.
Attach the mains cable to the connector on the side of the indicator. The power
switch is located next to he mains inlet.

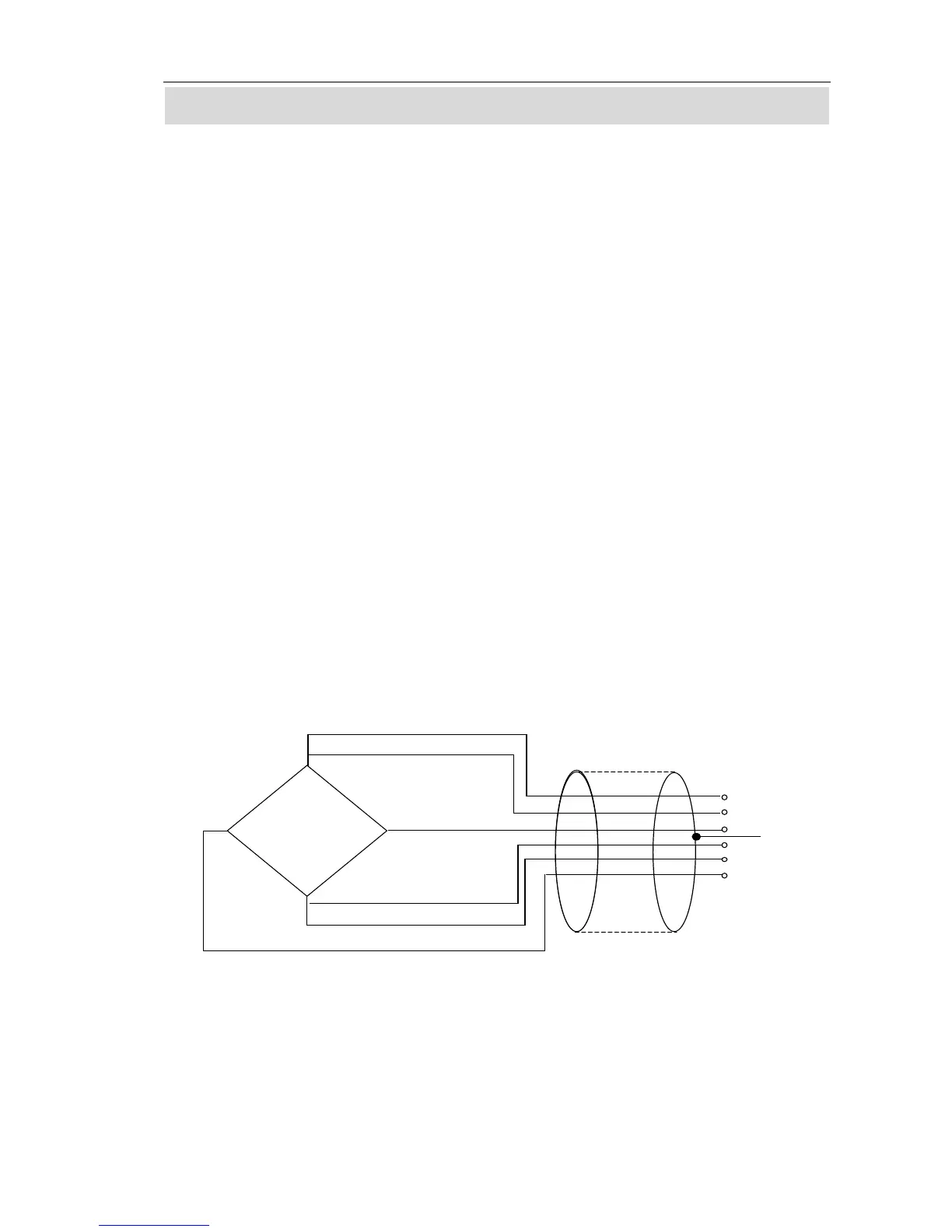

Load cell connect as below( 9 pin D-sub connecter)
+EXC
+SEN
1
+SIG -SIG
2
7
4
5
8
-SEN
-EXC
LOAD CELL
3
