16

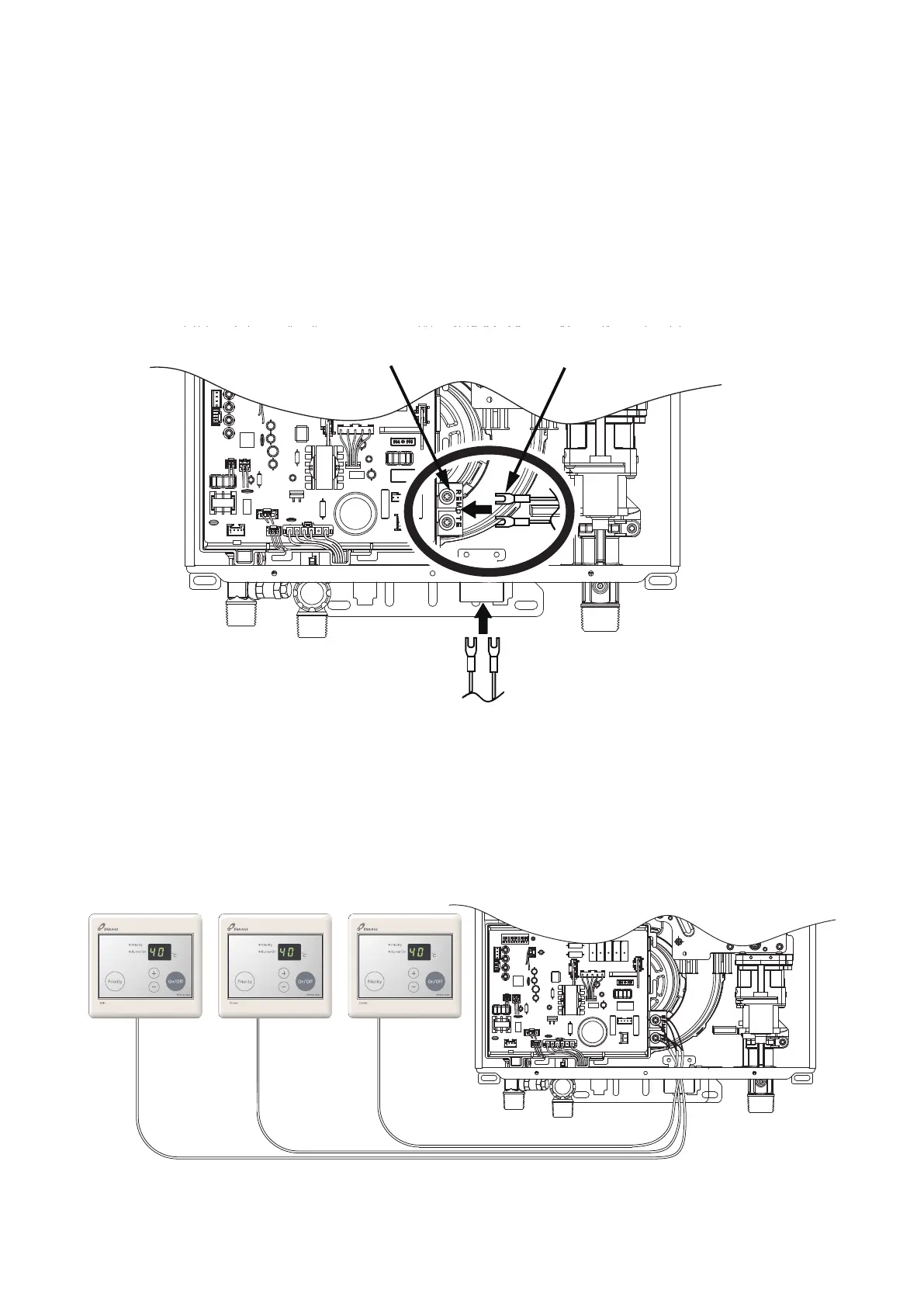

CONNECTION OF REMOTE CONTROLLER WIRING TO THE WATER HEATER
1.
2. Remove the front cover from the water heater. There are 3 screws on the front cover.
3.
4. Connect the remote control wires to the remote terminals directly. (There is no polarity in the
5. Replace the front cover. Then connect the power plug.
Remote control wires
Remote control terminals
Put the remote control wires
the unit’s casing.
TYPICAL CABLE LAYOUT
To Next Page
