OUTPUT TEMPERATURE CHART
Chart is based on properly sized gas line
240 (T-H3J) models
Output Temperature Chart
Owner's Guide
340 (T-H3S) models
*When the set temperature is 130 °F (55 °C) or higher, maximum flow rate is limited to 8.0 GPM.
540 (T-H3) models
Output Hot Water GPM

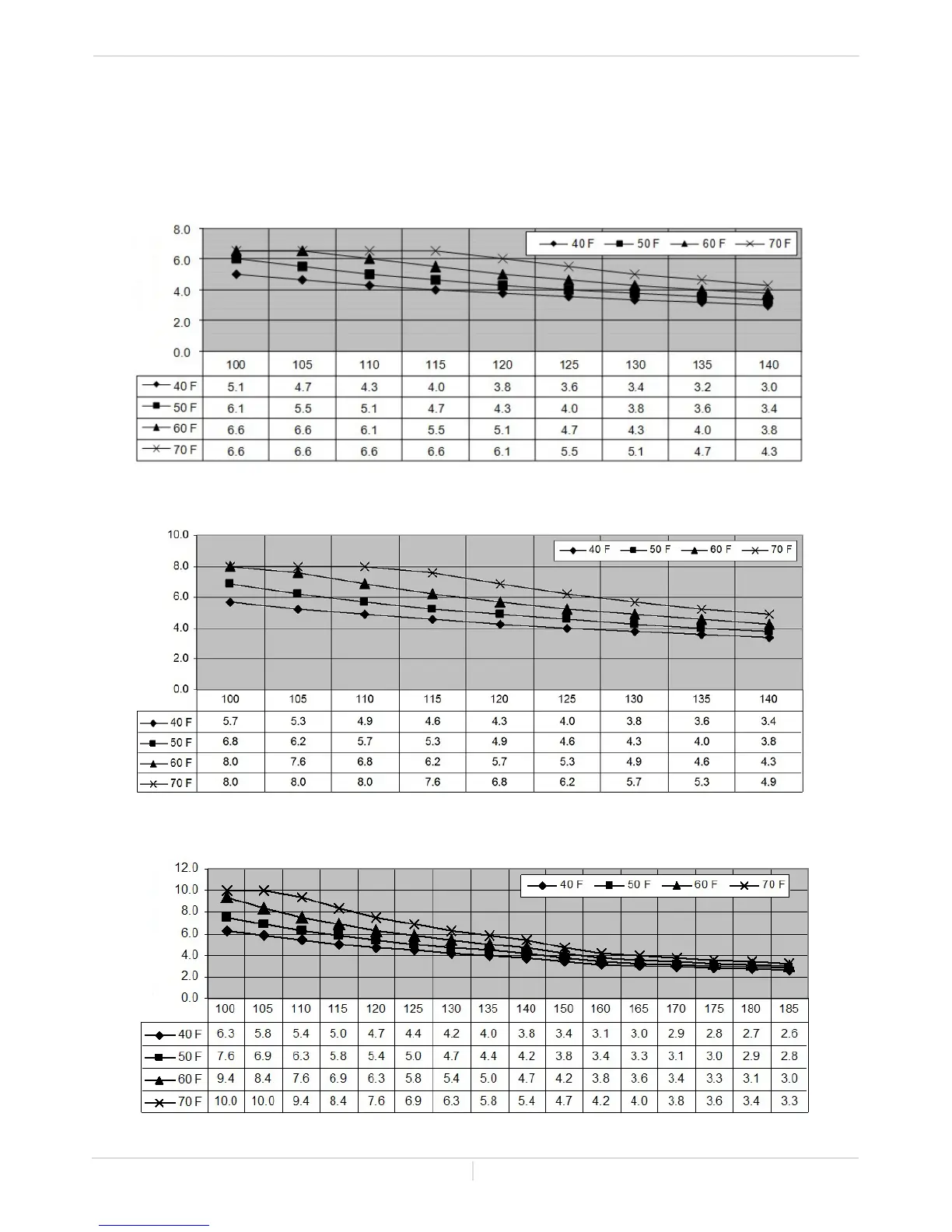

Output Temperature vs. GPM (Max. 10.0 GPM) with Various Inlet Water Temperature
Output Hot Water GPM
Output Temperature vs. GPM (Max. 6.6 GPM) with Various Inlet Water Temperature
Output Temperature vs. GPM (Max. 8.0 GPM) with Various Inlet Water Temperature
Output Hot Water GPM
