2-37
CONTROLS
INSTRUMENT CLUSTER

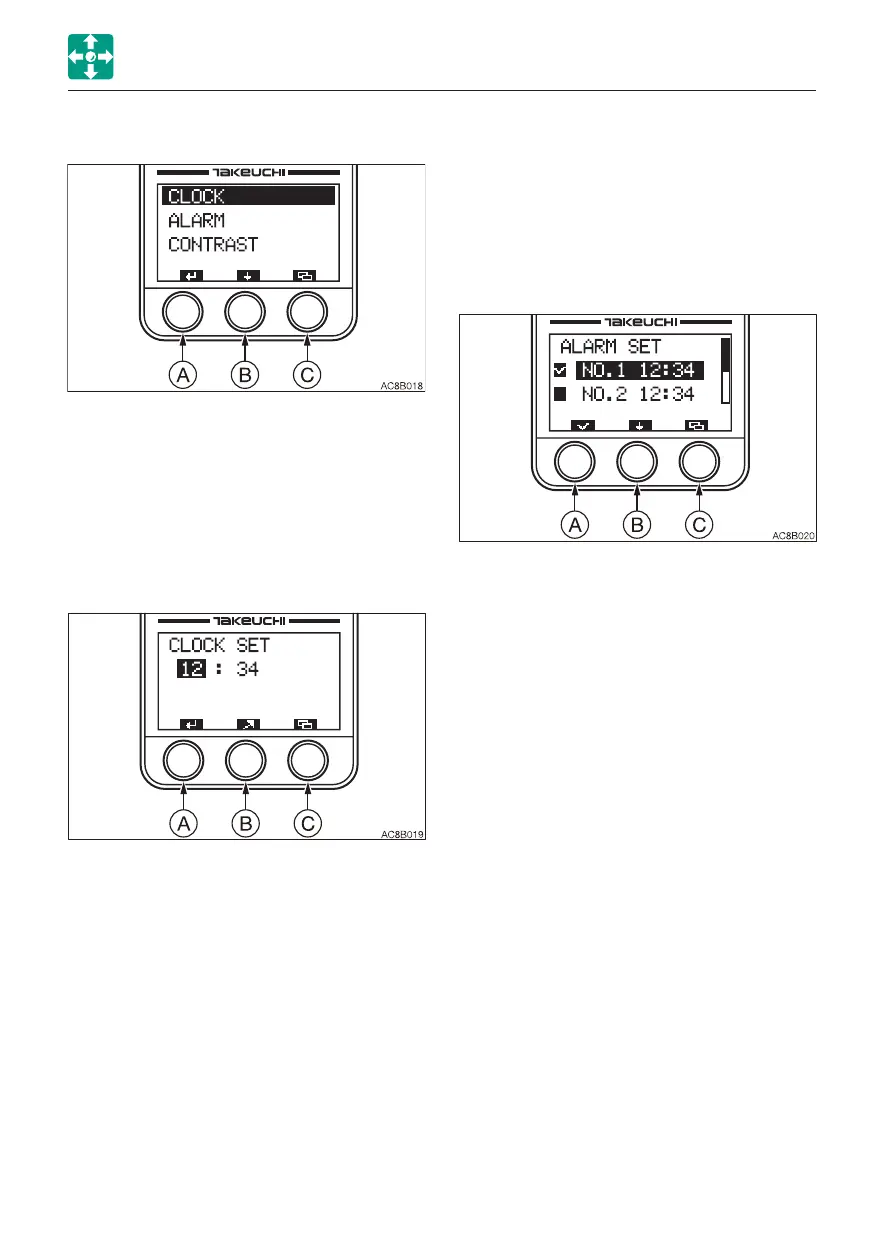

SETTING SELECTION SCREEN (SETTING)
Press the (A) key to proceed to the screen
selected by the bar.
Press the (B) key to move the selection bar.
Press the (C) key to return to the Menu
screen.
• Time setting (CLOCK)
The time to be displayed on the Home
screen can be set here.
a. When the selection bar is at CLOCK,
press the (A) key to proceed to the time
setting screen (CLOCK SET).
b. Pressing the (A) key in this screen moves
the selection bar and flashes the figures
on the bar.
Setting range: hours, 1 to 24; minutes,
00 to 59
c. Press the (B) key to increase the number
value selected.
Press and hold the (B) key to rapidly
increase the number value selected.
d. Press and hold the (A) key for at least
two seconds to complete the setting
and to return to the Setting Selection
screen.
e. Press the (C) key cancels editing and to
return to the Setting Selection screen.
• Alarm setting (ALARM)
Five patterns of alarm setting are
available.
Alarm function can be set to on or off
within the five patterns.
a. When the selection bar is at ALARM,
press the (A) key to proceed to the alarm
setting screen (ALARM SET).
b. Press the (A) key in this screen to place
a checkmark in the box at the left of the
setting bar. Press the (A) key again to
remove the checkmark.
The alarm setting cannot be changed
only by placing or removing a
checkmark.
c. Press and hold the (A) key for at least
two seconds to complete the setting
and to return to the Setting Selection
screen.
Be sure to perform the above operation
when you wish to set the alarm.
A clock symbol is displayed on the
Home screen.
d. Press the (B) key to move the selection
bar.
e. Press and hold the (B) key for at least
three seconds to enter the alarm time
setting mode.
f. Press the (C) key to cancel editing and
to return to the Setting Selection screen.
Checked ............On
Unchecked ........Off
