2-42
CONTROLS
INSTRUMENT CLUSTER

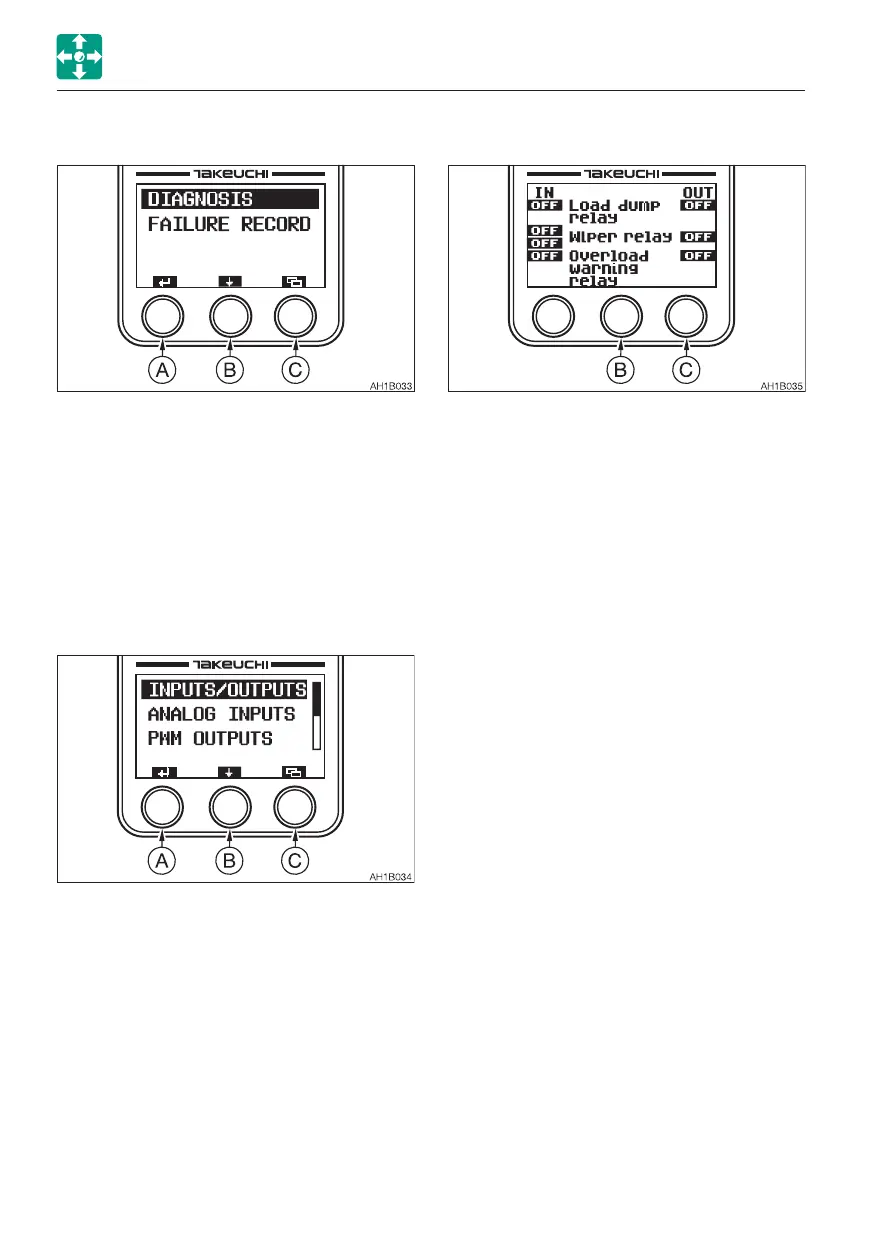

MAINTENANCE
Diagnosis and failure record can be checked.
Press the (A) key to proceed to the screen
selected by the bar.
Press the (B) key to move the selection bar.
Press the (C) key to return to the side menu
screen.
• Diagnosis (DIAGNOSIS)
Input/Output, Analog Input, PWM Output,
Engine Control Module (ECM) can be
checked.
Press the (A) key to proceed to the screen
selected by the bar.
Press the (B) key to move the selection bar.
Press the (C) key to return to the
Maintenance screen.
· Inputs/outputs (INPUTS/OUTPUTS)
The 9-page diagnosis data can be
displayed.
Press the (B) key to display a different
page.
Press the (C) key to return to the
Diagnosis screen.
To Next Page
