Takeuchi TB285 - Angle Dozer Blade

8-12
OPTIONS
ANGLE DOZER BLADE
Warning
•Donotpresstheoatbuttonwhilethe
machine is raised by the dozer blade.
Doing so will cause the machine to fall.
If you must work beneath the raised
machine, always use a secure support
to keep the machine raised.
•Donotpresstheoatbuttonwhilethe
dozer blade is raised. Doing so will
cause the dozer blade to fall. Lower the
dozer blade to the ground before
pressing the float button.
•Donottravelforwardwhilethedozer
blade is in the float mode.
IMPORTANT: Do not raise the machine by
using the angled dozer blade. Or, the
dozer blade may be damaged due to the
load concentrated onto a point on the
dozer blade.
This dozer blade can be angled (to 25° right
or left). Also, it can be used in the float
mode.

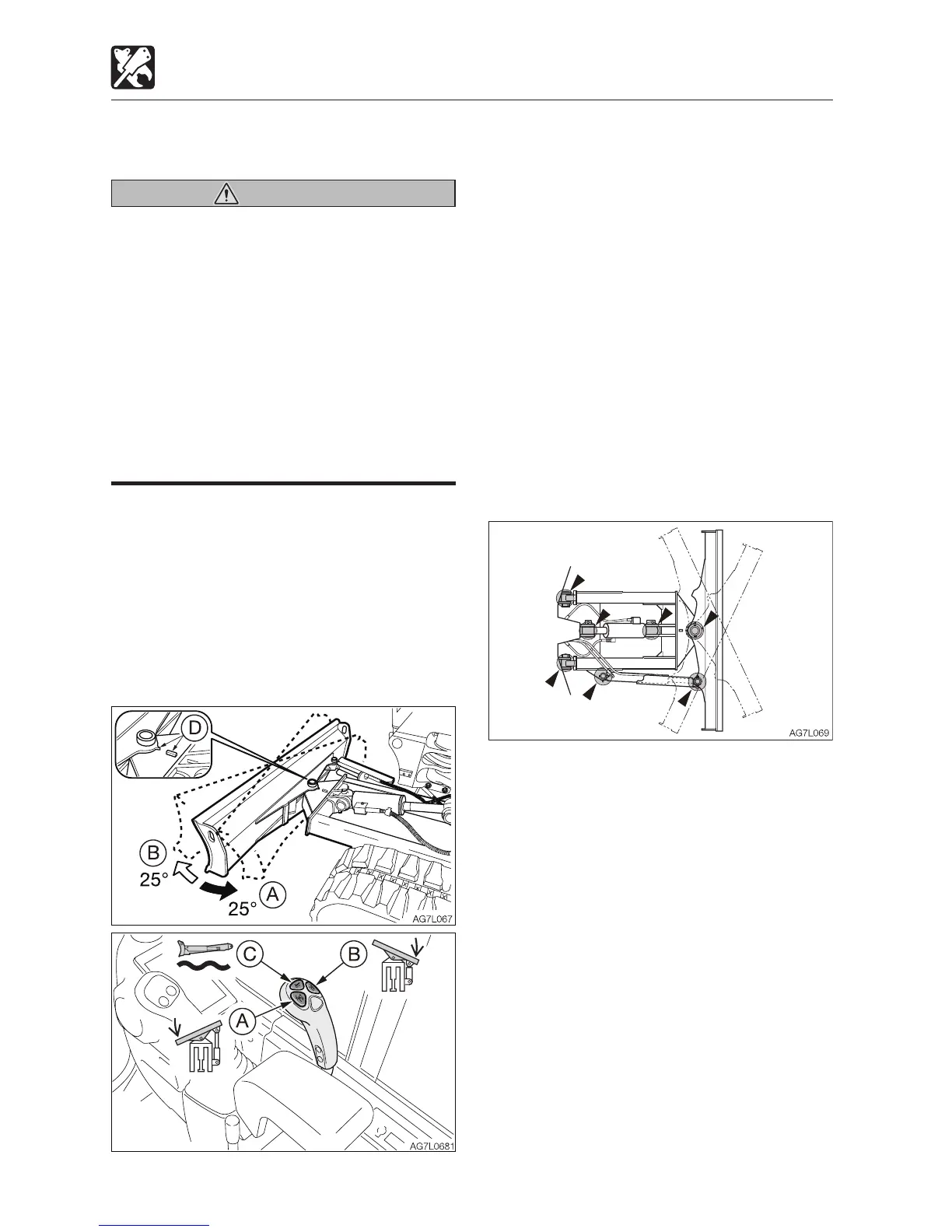

Angle operation
ANGLE DOZER BLADE
Button (A) ......Leftangle(0to25°)
Button (B) ......Right angle (0 to 25°)
The dozer blade angle is
increased/decreased between
0 and 25° as long as the
button is pressed.
To position the dozer blade at
a right angle, align the
matching marks (D) as shown
in the figure.
Float operation
Button (C) ......Float mode
To cancel the float mode,
press the button again.
Daily inspection (every 10 hours)
Lubricating
1.Lowertheworkingequipmenttothe
ground and stop the engine.
2. Use the grease gun to lubricate the grease
fitting.
3. Wipe off the excess grease.
