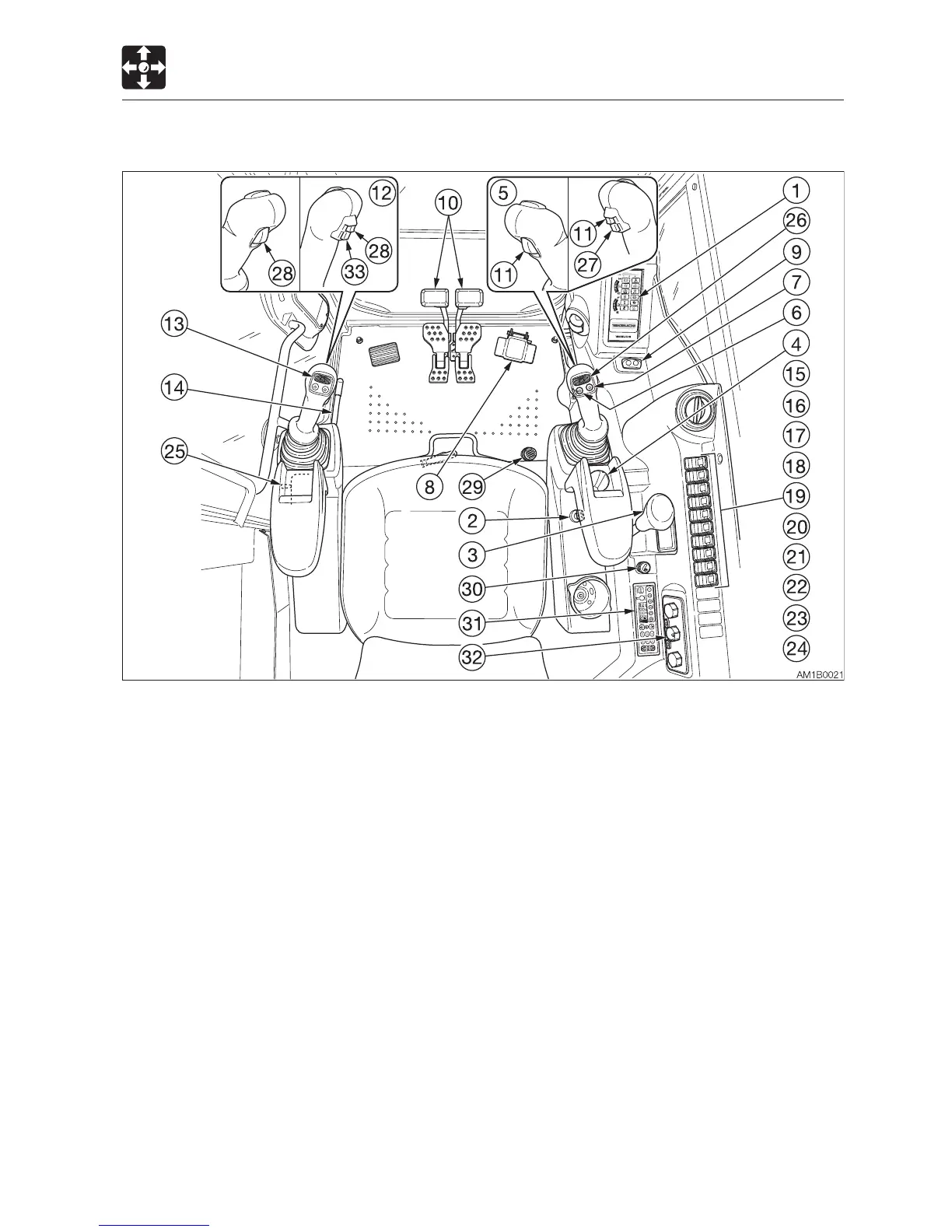

CONTROLS
1. Instrument cluster
2. Starter switch
3. Blade lever
4. Throttle controller
5. Right operating lever*
6.Hornbutton
7. Deceleration button
8. Boom swing pedal
9. Trip/Data switch
10. Travel lever/Pedal
11. Travel speed button
12.Leftoperatinglever*
13. Auxiliary 1st switch*
14. Safety lock lever
15.Lightswitch
16. Wiper switch
17.
Washer switch
NAMES OF COMPONENTS
18. Automatic deceleration switch*
19. ECO mode switch*
20.Highlandmodeswitch*
21. Auxiliary 1st flow rate select switch
22. Detent mode switch
23. Overload warning switch*
24. Beacon lamp switch*
25. Engine shutdown switch
26. Auxiliary 2nd/4th switch*
27. Auxiliary 2/4 select button*
28. Third auxiliary hydraulic button*
29. Third auxiliary hydraulic switch*
30. Cigarette lighter
31. Radio
32. AC Control panel*
33. Swing/ Second boom select button*
*: Subject
tothespecicationsoroptionalproductsselected
