Takeuchi TB295W User Manual

2-72
CONTROLS
ACCESSORIES

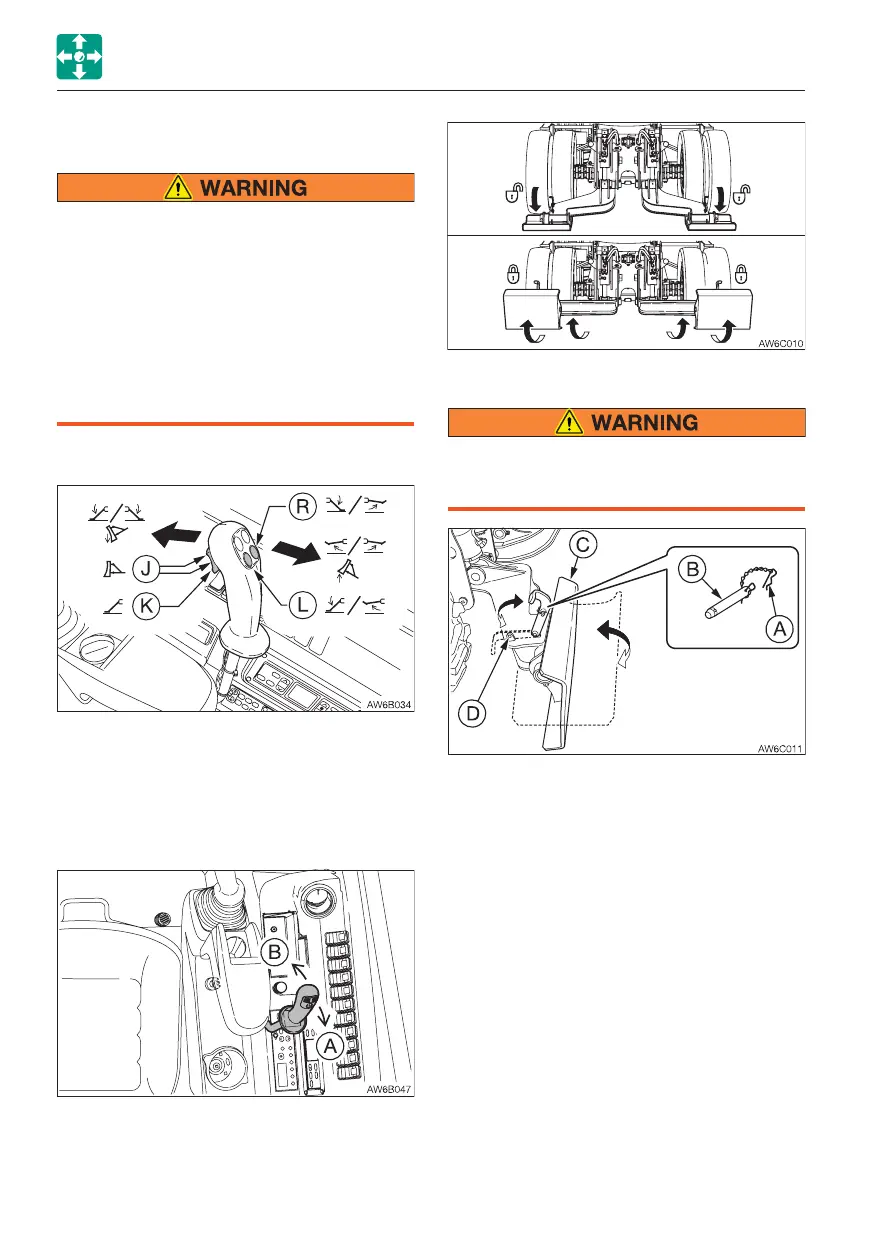

OUTRIGGER (IF EQUIPPED)
• Select a firm and uniform ground for
outrigger pads (surfaces to contact the
ground).
• When traveling on a public road, secure
the outriggers with the stoppers.
When retracting the outriggers, make
sure that the outrigger pads (the
surfaces to contact the ground) are
within the machine width. Failure to do
so could cause minor collisions.
Outrigger switch
(J) .......Dozer blade operation (both sides)
(K) ......Outrigger operation (both sides)
(L) .......Left outrigger operation
(R) ......Right outrigger operation
Operation
The outrigger operation is done by the blade
lever.
(A) .......Outriggers Raise
(B) ......Outriggers Lower
Stoppers
When traveling on a public road, retract
the outriggers within the machine width
and install the stoppers.
IMPORTANT: Remove the stoppers before
lowering the outriggers. Failure to do so
could damage the stoppers.
1. Remove the spring cotter pin (A) and pull
out the stopper pin (B).
2. Slowly lower the outrigger pad (C).
3. Insert the stopper pin (B) into the holder
hole (D) on the rod.
4. Install the spring cotter pin (A) on the
stopper pin (B) groove to prevent the
stopper pin (B) from coming out.
A/C
AUTO
TEMP
OFF
DENSO
