6-7
TROUBLESHOOTING

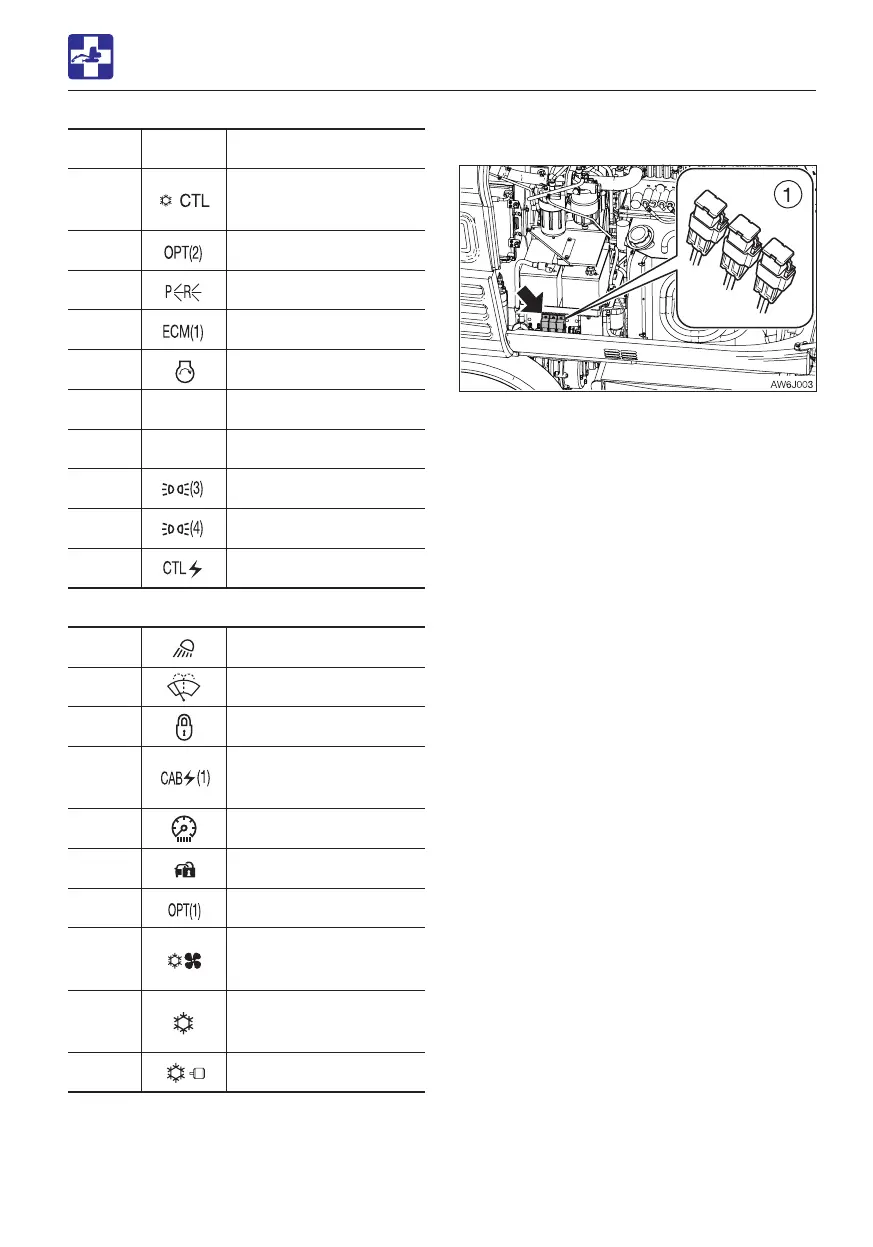

INSPECTING THE FUSIBLE LINK
IF A FUSE BLOWS
If the machine is not turned on after turning
the starter switch to the ON position, the
cartridge type fusible link (1) is likely blown.
Open the right side cover and inspect it. If
the fusible link is blown, contact your sales
or service dealer.
Note: Fusible links are large type fuses used
in high current applications. Like a regular
fuse, they act as fuses by protecting the
electric components and wirings from
damage caused by excessive current draw.
Capacity
Symbol Protected circuit
5A
Air conditioner
controller
15A Option (2)
10A Hazard
10A ECM (1)
10A Starter switch
2A Position lamps (3)
2A Position lamps (4)
20A Controller power supply
20A Light
10A Wiper
10A Lever lock
20A
Cab interior power
supply (1)
20A Instrument cluster
5A Immobilizer
20A Option (1)
15A
Air conditioner blower
motor
10A
Air conditioner
compressor
5A AC motor
To Next Page
