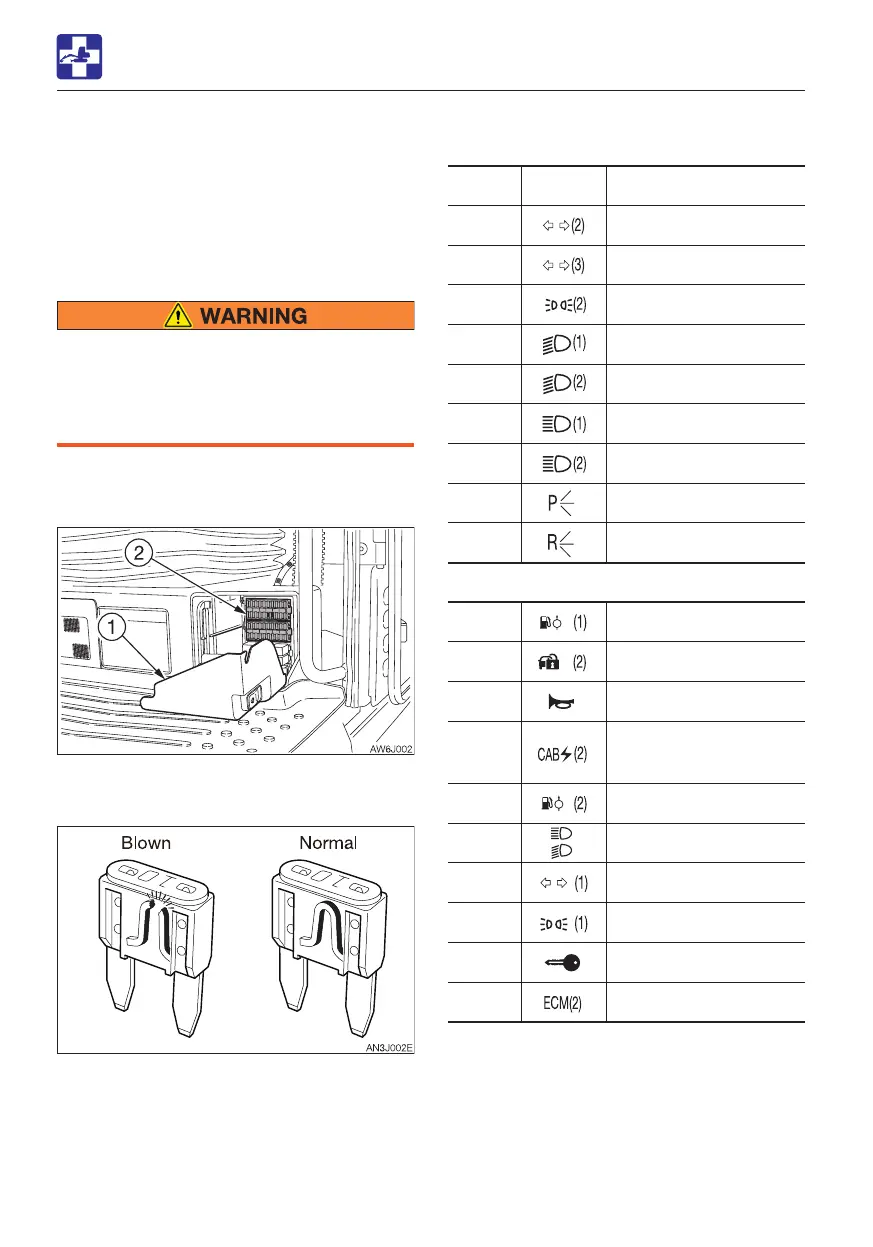

TROUBLESHOOTING
IF A FUSE BLOWS
If a light does not come on or the electrical
system does not work, a fuse may be blown.
Inspect the fuses.
INSPECTING AND REPLACING THE FUSE
If the fuse blows again soon after
replacement, then the electric system is
likely faulty. It may pose a fire hazard if
not properly repaired. Contact your sales
or service dealer for advice.
1. Turn the starter key to the OFF position to
stop the engine.
IF A FUSE BLOWS
2. Open the fuse box cover (1).
3. Check for any blown fuses (2).
4. If a fuse is blown, replace it with a spare
fuse of the same capacity.
Fuse layout and circuits protected
Capacity
Symbol Protected circuit
10A Turn Signal (2)
10A Turn Signal (3)
10A Position lamps (2)
10A Head light low Beam (1)
10A Head light low Beam (2)
10A Head light high Beam (1)
10A Head light high Beam (2)
10A P flash
10A R flash
5A Feed pump (1)
5A Immobilizer (2)
10A Horn
10A
Cab interior power
supply (2)
20A Feed pump (2)
5A Head light
10A Turn Signal (1)
20A Position lamps (1)
20A Starter key
25A ECM (2)
To Next Page
