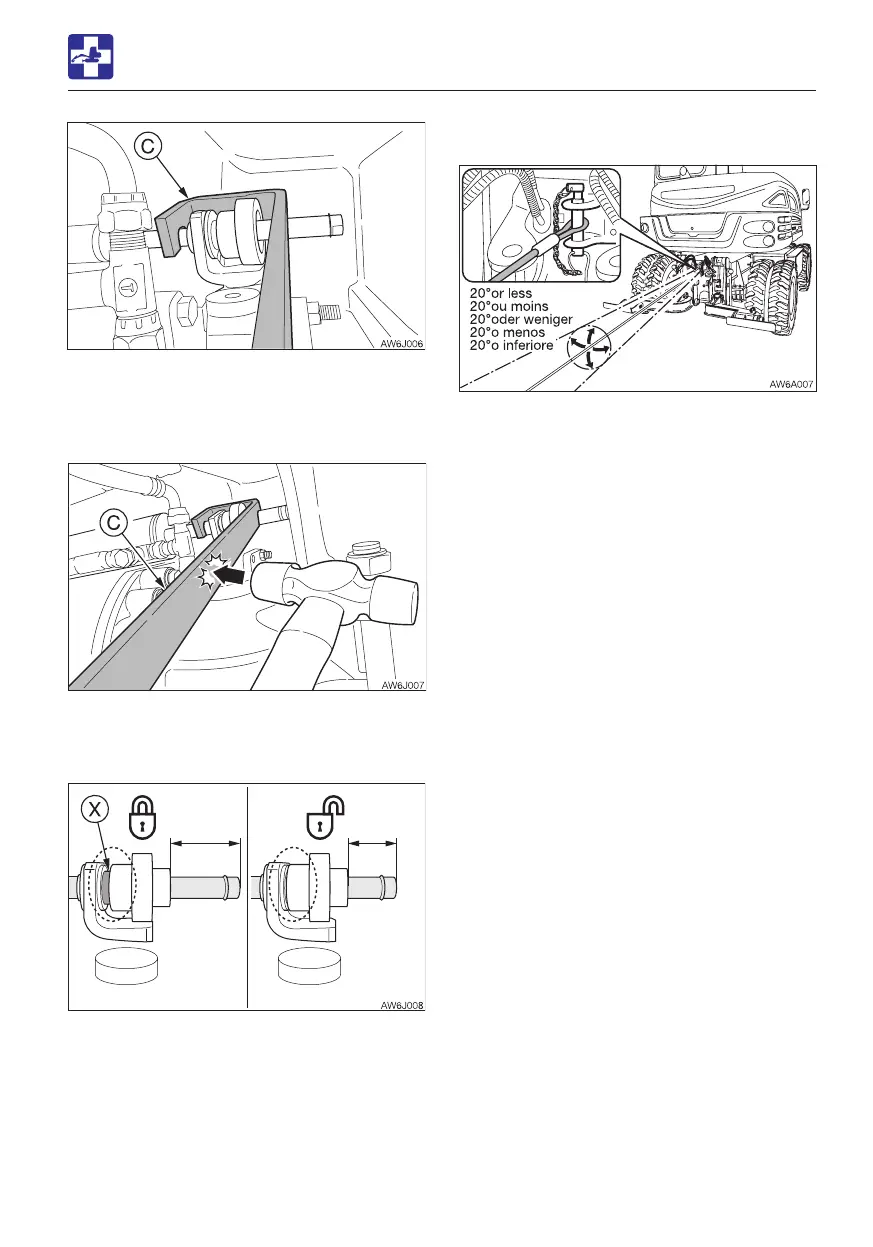

5. Place the notch of the special tool (C) onto
the shaft.
Special tool (C) part number: 05692-
00019
6. Hammer the tool toward the brake
cylinder several times while supporting the
special tool (C) by hand.
7. Once the brake is released, the shaft is
pulled to clear the clearance (X).
Note: The released parking brake is returned
to the original position once the engine is
restarted.
Towing the machine
• Permissible forces: 158.8 kN (35700 lbf)
1. Attach the wire rope to the shackle (1).
2. Make sure that the wire rope is horizontal
and is lined up straight with the travel
frame.
3. Remove the chocks, and then release the
brake lock.
4. Move the machine to tension the wire
rope.
5. Move the machine slowly and tow.
· Towing speed: 2 km/h (1.24 mph) or less
· Towing distance: 5 km (3.1 miles) or less
