2-3

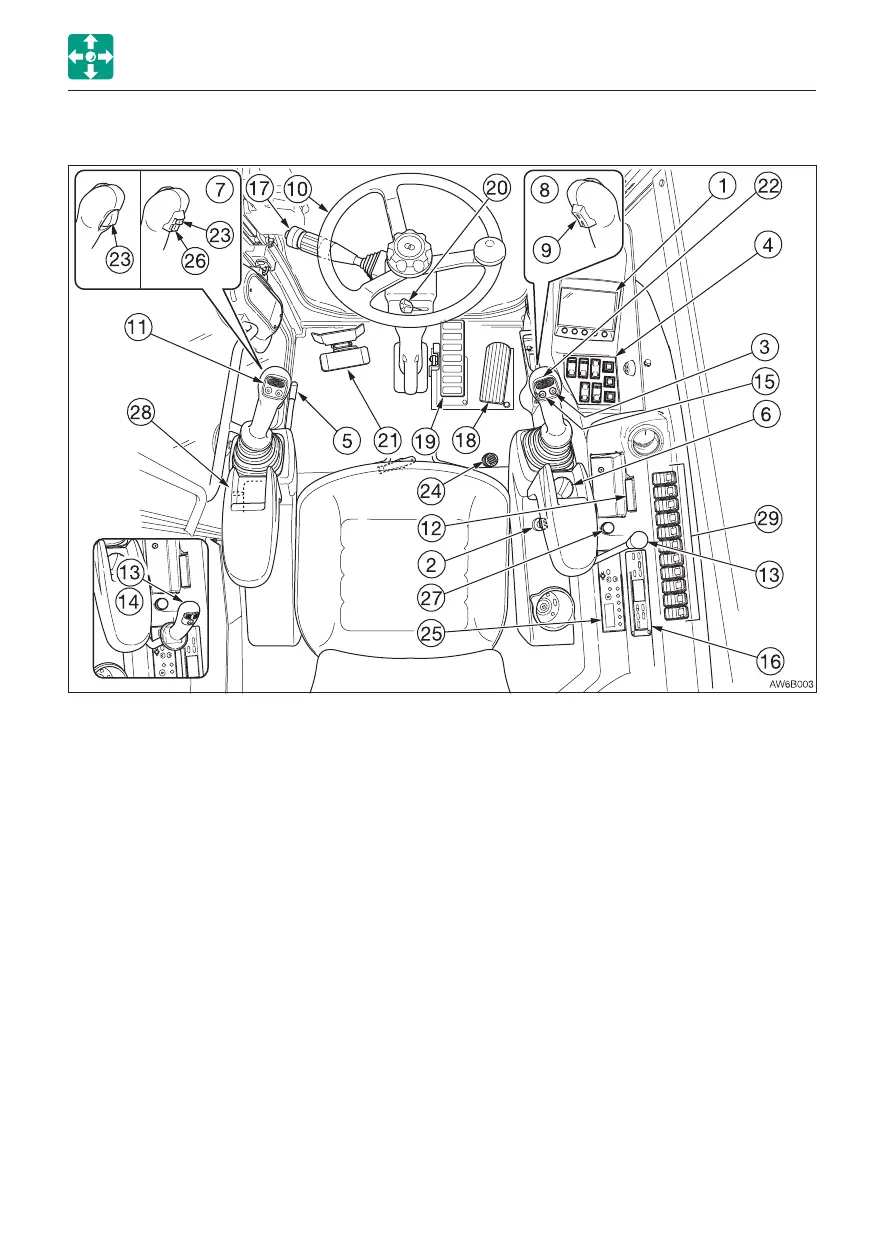

CONTROLS
1. Multi-information display
2. Starter switch
3. Deceleration button
4. Control console
5. Safety lock lever
6. Throttle controller
7. Left operating lever
8. Right operating lever
9. Travel select button
10. Steering wheel
11. Auxiliary 1st switches
12. Ashtray
13. Blade/Outrigger lever*
14. Outrigger switch*
15. Horn button
16. AC Control panel
17. Turn signal lever
18. Travel pedal
19. Brake pedal
20. Tilt steering lever
NAMES OF COMPONENTS
21. Boom swing/Second boom pedal*
22. Auxiliary 2nd/4th switch*
23. Third auxiliary hydraulic button*
24. Third auxiliary hydraulic switch*
25. Radio
26. Aux. 2/4 select button*
27. Cigarette lighter
28. Engine shutdown switch
29. Switches*
Ram lock switch
DPD manual regeneration/inhibit select switch
Light switch
Swing/Second boom select switch*
Automatic deceleration switch
Power mode switch
Detent mode switch
Auxiliary 1st auto tank switch*
Lift overload warning switch*
Beacon lamp switch*
Diff- lock switch*
*: Subject to the specifications or optional products selected
