CONTROLS
SEAT AND SEAT BELT

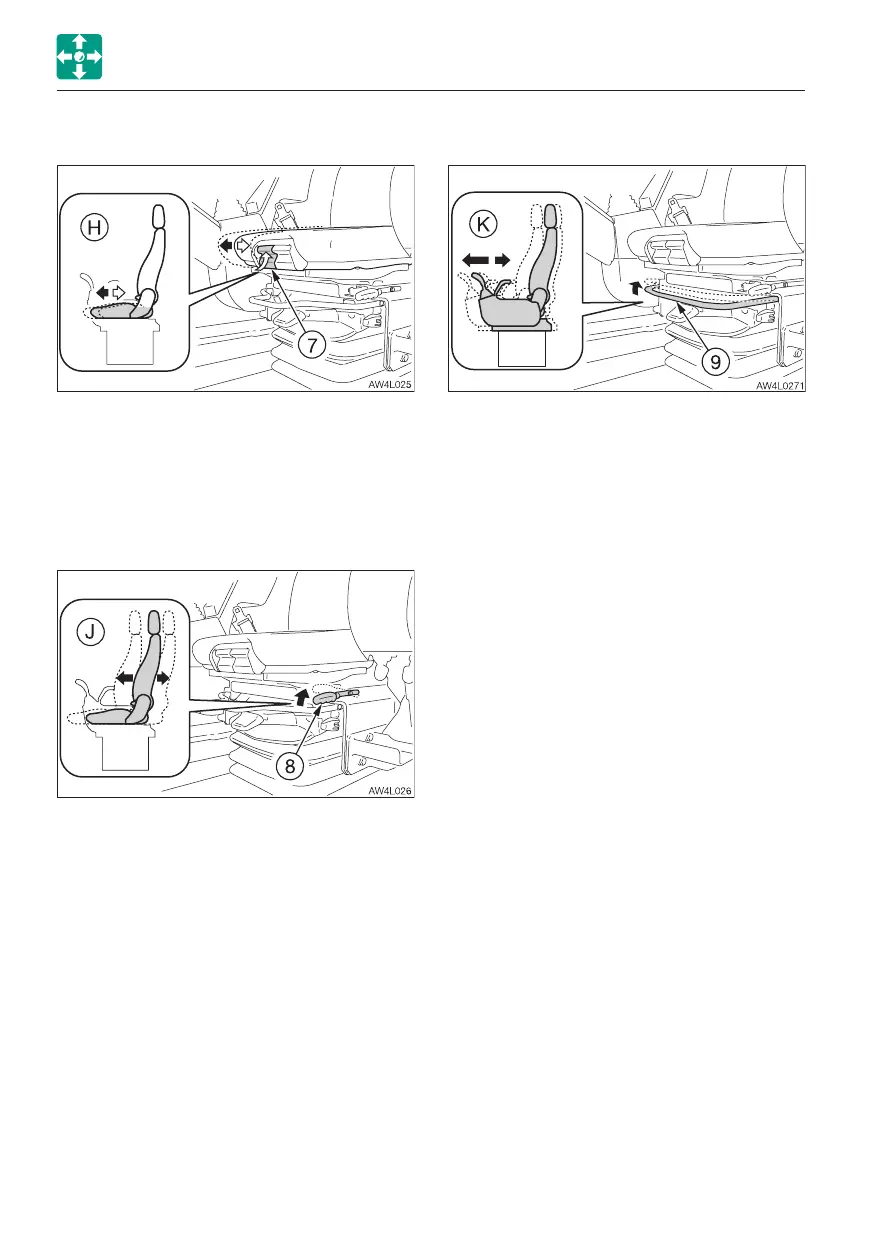

(H) Adjusting the seat depth
The depth of the seat pan can be individually
adjusted.
To adjust, lift the right side handle (7). Move
the seat cushion forward or backward until
the desired seat depth is obtained.
(J) Adjusting fore-and-aft
1. Pull up the lever (8) and slide the seat
backward or forward to the optimum
position for operation.
2. Release the lever (8) at the optimum
position to secure the seat.
Adjustment range: 17 positions, in 170
mm (6.7 in.)
(K) Adjusting the operating lever stand
1. Pull up the lever (9) and slide the lever
stand (seat).
2. Release the lever (9) at the optimum
position to secure the lever stand (seat).
Adjustment range: 9 positions, in 90 mm
(3.5 in.)
