CONTROLS
MULTI-INFORMATION DISPLAY

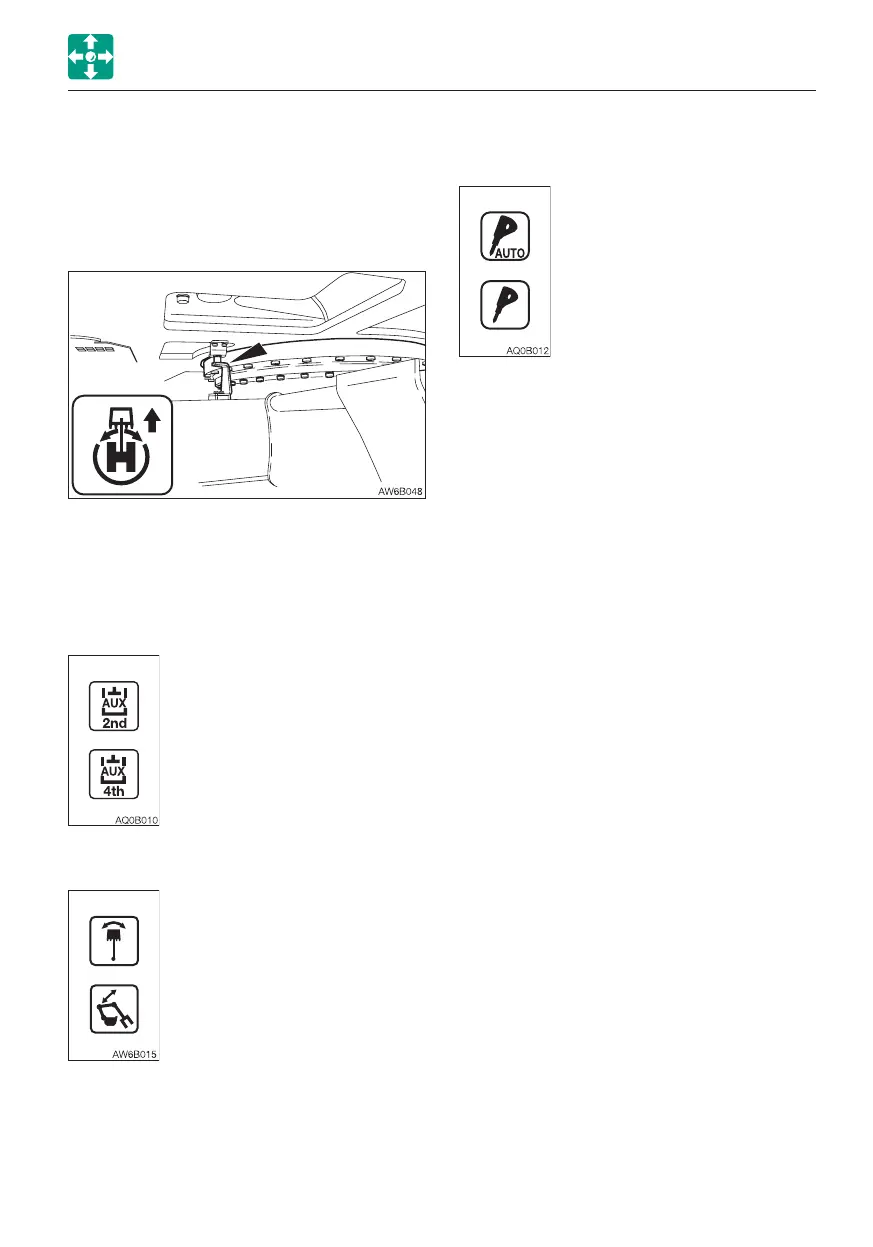

22. Lift overload warning indicator lamp
This lamp turns on when the lift overload
warning switch is turned on.
23. Upperstructure position warning lamp
(traveling mode)
........ Auxiliary 2nd is selected.
........ Auxiliary 4th is selected.
24. Swing/Second boom indicator lamp
........ Swing is selected.
........ Second boom is selected.
This lamp lights if the upperstructure and
the undercarriage become misaligned to
the right or left while traveling.
23. Auxiliary 2nd/4th select indicator lamp
(digging mode)
25. Auxiliary 1st one-way (one-way
circuit) indicator lamp
........ Auxiliary 1st auto tank is
selected.
........ Auxiliary 1st one-way is
selected.
No display: Two-way (two-way circuit) is
selected.
26. Attachment lock indicator lamp
This lamp lights to indicate that the
operation of working equipment is
locked.
27. Water temperature gauge
Indicates the temperature of the engine
coolant water. The indicator level must
be within the green range during
machine operation. The red range
indicates overheating.
28. Fuel gauge
Indicates the amount of fuel in the tank.
Be sure to fill up the tank before running
out of fuel.
29. Turn signal indicator lamp (L)
This lamp lights to indicate that the left
turn signal indicator is flashing.
30. Turn signal indicator lamp (R)
This lamp lights to indicate that the right
turn signal indicator is flashing.
