MULTI-INFORMATION DISPLAY

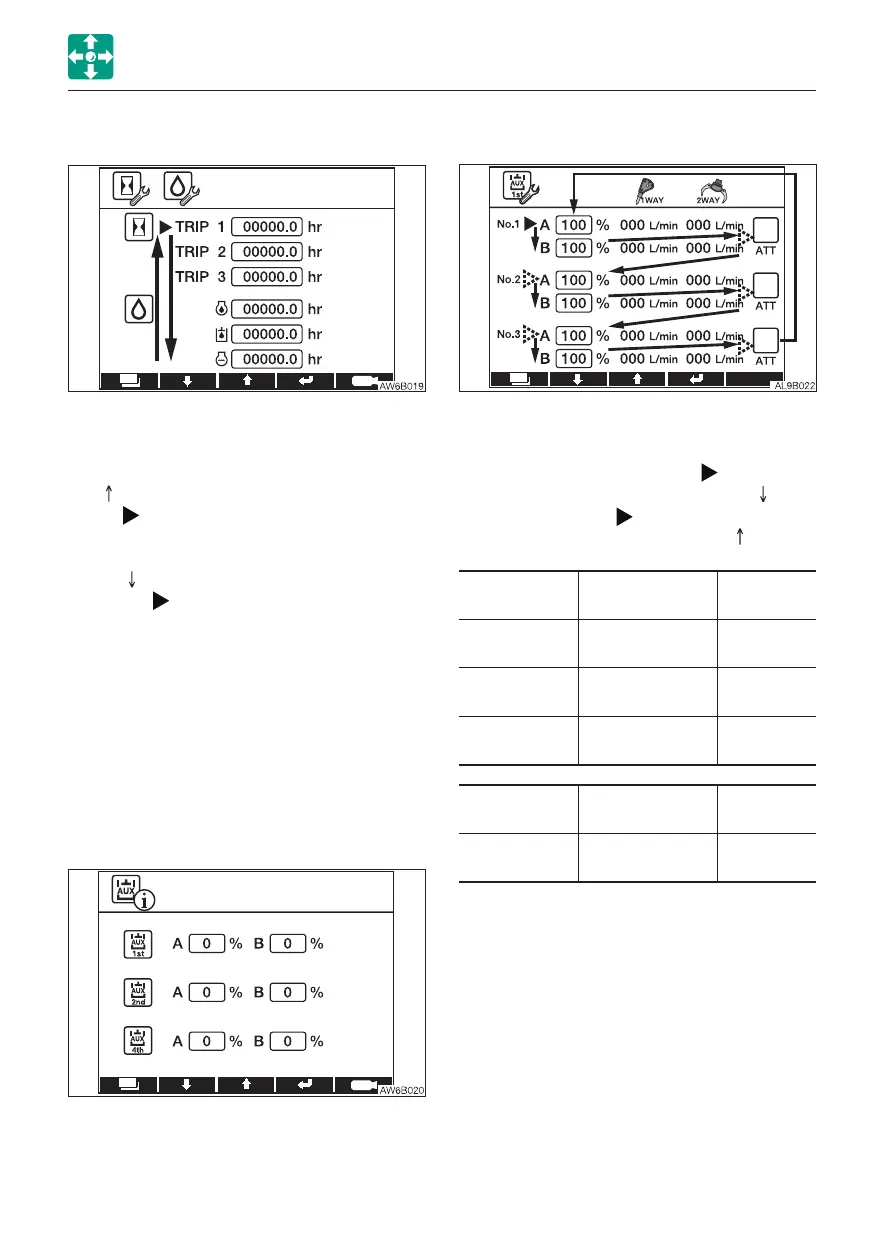

(1) TRIP METER SETTING
Six patterns of desired operating hours can
be set.
To start setting, press the Enter key. The
value flashes while being set.
Up (
) key: Increases the value or moves the
cursor
upward. Rapidly increases the
value when pressed and held for one
second.
Down (
) key: Decreases the value or moves
the cursor
downward. Rapidly decreases
the value when pressed and held for one
second.
Enter key: Confirms setting
Menu key: Cancels setting or returns to the
Menu screen.
Pressing and holding the Enter key for three
seconds clears the trip meter pointed by the
cursor.
(2) AUXILIARY LINE FLOW RATE DISPLAY
Displays the flow rate of the Auxiliary 1st,
2nd and 4th.
The flow rate cannot be changed.
(3) AUXILIARY 1ST FLOW RATE SETTING
Three flow rate patterns can be set in the
auxiliary 1st.
Refer to the trip meter setting for the key
operation. To move the cursor
in the
direction of the arrow, use the Down (
) key.
To move the cursor
in the opposite
direction of the arrow, use the Up (
) key.
Initial
condition
A/B common,
standard flow
Variable
range
Auxiliary 1st-1
100%=70L/min
(18.5 US gpm)
10 to 100%
Auxiliary 1st-2
75%=52L/min
(13.7 US gpm)
10 to 100%
Auxiliary 1st-3
50%=35L/min
(9.2 US gpm)
10 to 100%
Maximum
flow rate
A/B common,
high-flow
Variable
range
Auxiliary
1st-1, 2, 3
170%=120L/min
(31.7 US gpm)
101 to
170%
The table shows the 1-way flow rate when
there is no load.
