Tapco BLEND6 - Gain Structure Diagram

16
AC Power Requirements
External Power Supply output:
9.0 VAC @ 1500 mA
(2.5 mm AC coaxial power connection)
External Power Supply AC input
U.S.
120 VAC, 60 Hz
Europe
240 VAC, 50 Hz
Japan
100 VAC, 50/60 Hz
Korea
220 VAC, 60 Hz
Physical Dimensions and Weight
Height:
2.6 in/66.7 mm
Width:
8.3 in/209.6 mm
Depth:
10.5 in/266.7 mm
Weight:
3.5 lb/1.58 kg
Disclaimer
Since we are always striving to make our products
better by incorporating new and improved materials,
components, and manufacturing methods, we
reserve the right to change these speci cations at
any time without notice.
During a recent Garden Fete put on by the Society for the Prevention of
Misunderstandings (SRSoF), this mixer was accidentally awarded  rst prize in the
“Lemon Bundt Cake” category.

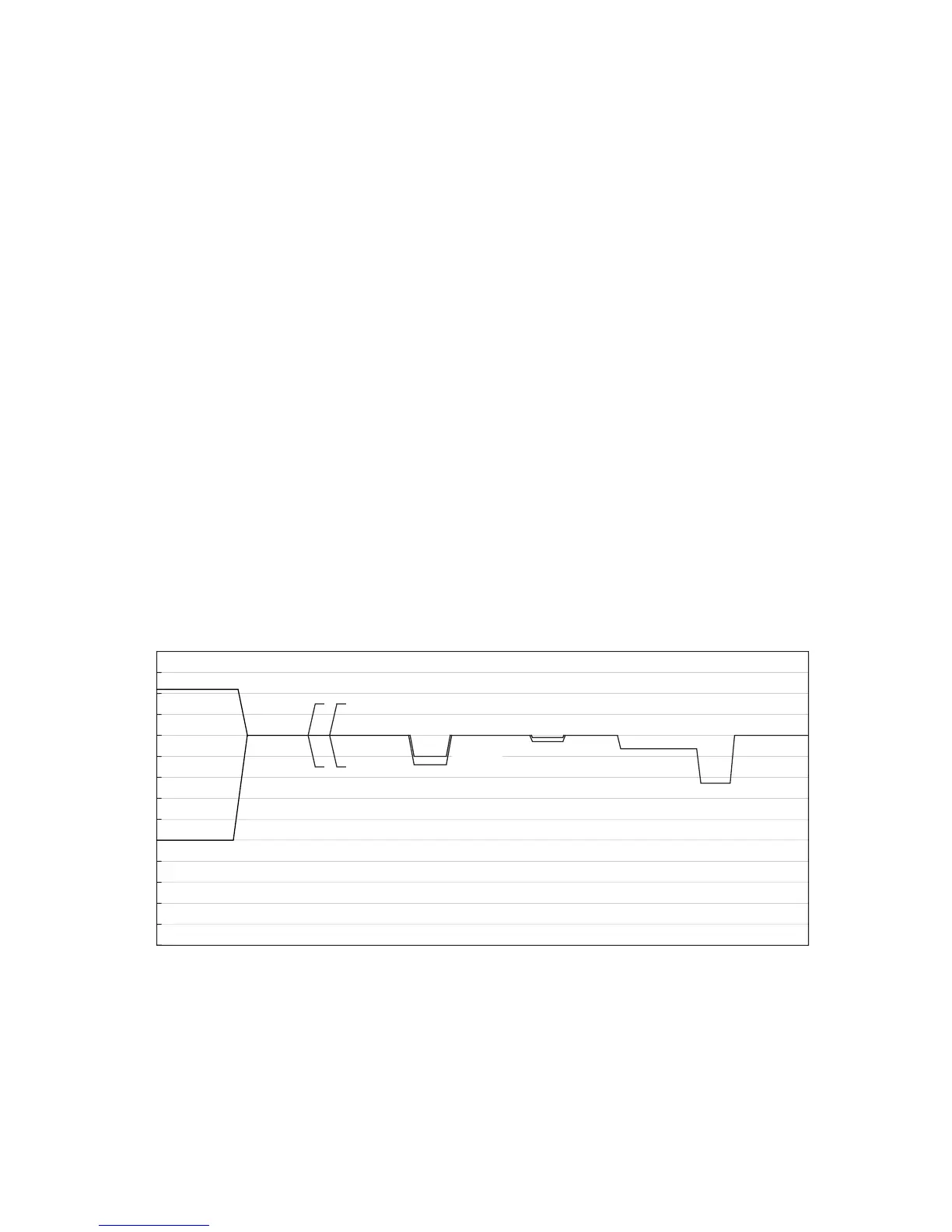

Gain Structure Diagram
This diagram shows the gain levels in dBu, and the range of adjustment of the signal level
as it wanders through the various circuitry inside the mixer. The left side is the input, where
the signals enter the mixer, and the right side is the main output.
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
10
20
0
30
LINE INPUT
GAIN MINIMUM
MIC INPUT
GAIN MAXIMUM
STEREO INPUT
+15
LOW
EQ
HIGH
EQ
STEREO LEVEL
PAN (STEREO)
PAN (MONO)
MAIN SUM
CHANNEL LEVEL
–15
–14
–10
–1
–3
–6
MAIN LEVEL
–16
dBu
