4. OPTIONS
IOM manual Tapflo Metal Series 28

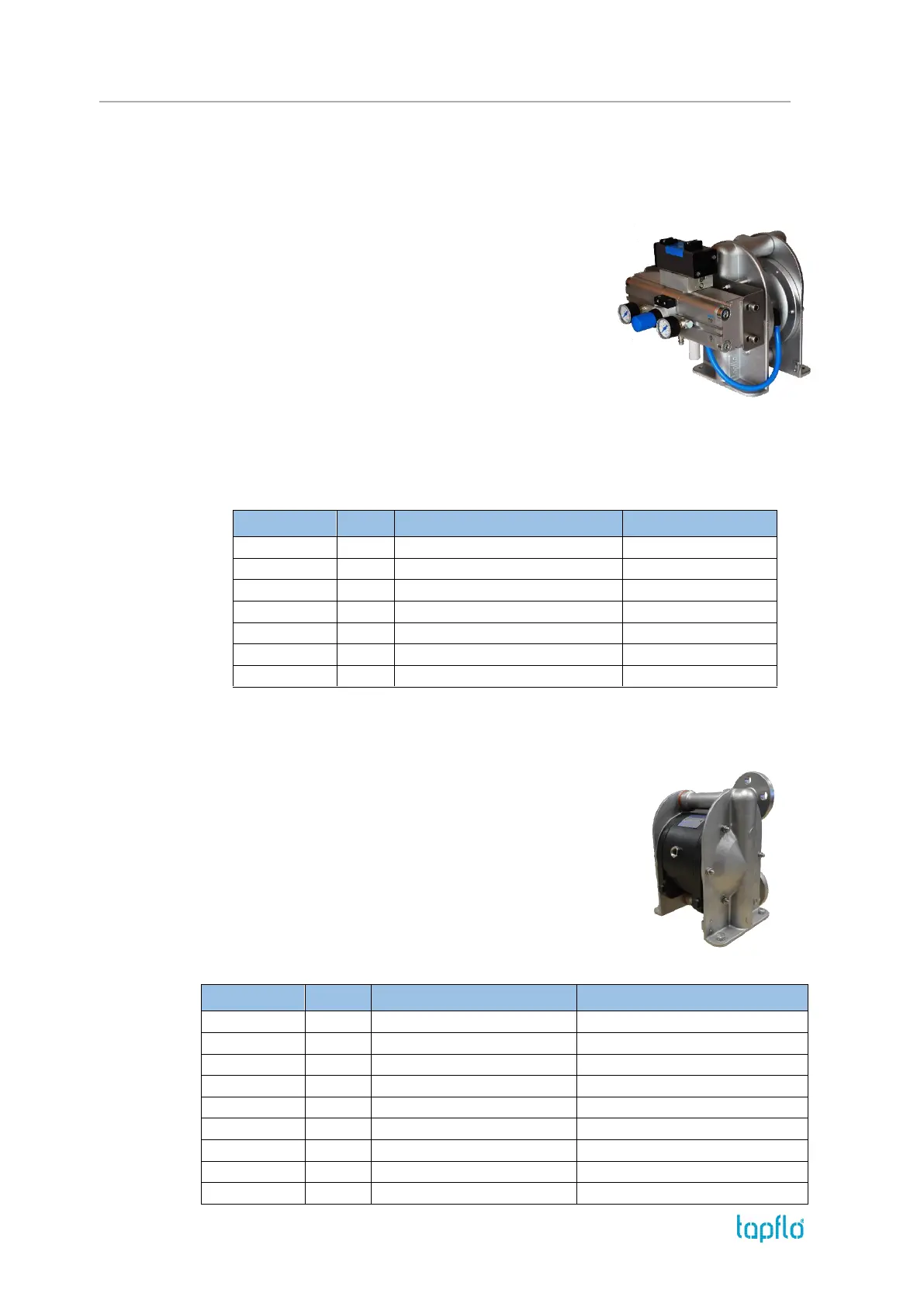

4.3. Filter press pump – TF…
The Tapflo filter press pump is a ready, compact product
that can be installed directly on the filter press. The pump is
equipped with a booster which amplifies the pressure in a
2:1 ratio. As a result we can achieve up to 16 bar on the
discharge of the pump (depending on pump size). As a
standard the booster is equipped with a pressure regulator
and two manometers. In comparison to a standard pump
the TF version is equipped with special pin screws and a
special air valve with PET piston (6-xxx-61-318).
In stainless steel pump series we also recommend to use
aluminium centre body (-6A option) instead of standard PP
for better durability.
Available for pump sizes:
• TF70, TF120, TF220 and TF420
Additional / different parts:
Art. no
Q-ty
Description
Material
6-xxx-147
4
Pin screw with longer thread
A4-80 / AISI 316L*
6-xxx-37
4/8*
Additional nuts
A4-70
6-xxx-38
4
Additional washers
A4-70
6-xxx-99
1
Complete booster
-
6-xxx-990
1
Booster mounting plate
AISI 304
6-xxx-996
4
Booster mounting screws
A4-70
6-xxx-997
4
Booster mounting washers
A4-80
* Stainless steel series / Aluminium and cast iron series
4.4. Barrier pump – TB…
With its special construction and control system the barrier
pump is perfect when diaphragm rapture has to be
immediately detected in order to avoid product leak to the
environment and the air distribution system. When rapture
is detected the pump is automatically stopped and an
alarm can be generated.
Available for pump sizes:
• TXB70, TXB120, TXB220 and TXB420
Additional / different parts:
Art. no
Q-ty
Description
Material
6-xxx-129
2
Spacer
PP, PE, AISI 316L, Aluminium
6-xxx-139
2
Long inlet/outlet
Aluminium, AISI 316L
6-xxx-149*
6/8**
Pin screw
AISI 304
6-xxx-151
2
Diaphragm – air side
EPDM, PTFE, NBR
6-xxx-152
2
Diaphragm – liquid side
EPDM, PTFE, NBR
6-xxx-153
4/8***
O-ring
FKM, NBR, EPDM
6-xxx-159
2****
Diaphragm spacer
PP, PE, AISI 316L, Aluminium
6-xxx-169
1
Diaphragm shaft
AISI 316L
6-xxx-339
2
Spacer plug
PP, PE
