5. SPARE PARTS
IOM manual Tapflo Metal Series 31
5. SPARE PARTS
5.1. Aluminium and cast iron pumps

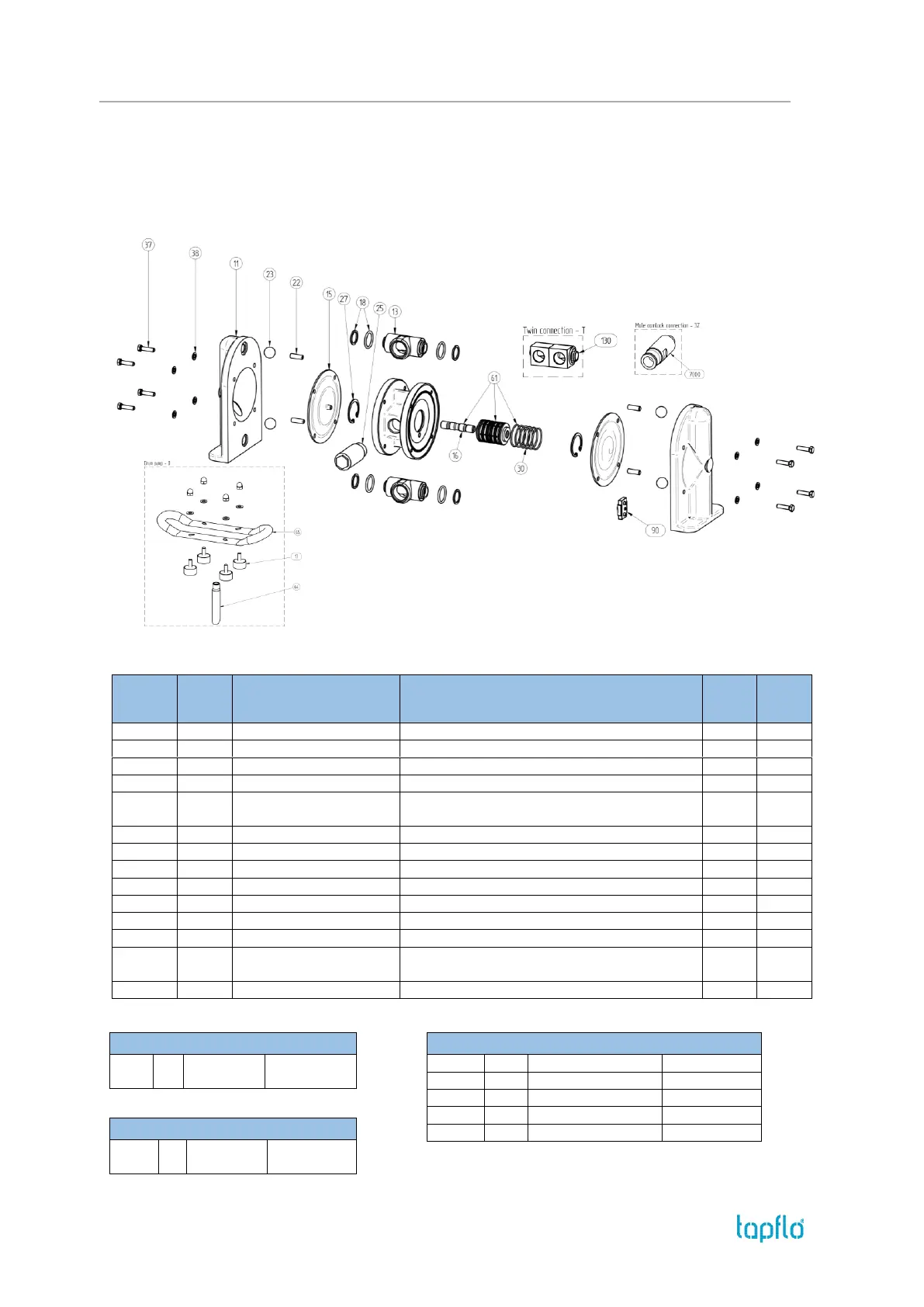

5.1.1. TX25 - Spare parts drawing
5.1.2. TX25 – Spare parts list
Pos.
Q-ty
Description
Material
KIT
LIQ
KIT
AIR
11
2
Housing
AK9 aluminium, cast iron, PTFE coated aluminium
12
1
Centre block
AK9 aluminium, cast iron, PTFE coated aluminium
13
2
In/Outlet
PA6 aluminium, cast iron, AISI 316L
15
2
Diaphragm
EPDM, PTFE, NBR or FKM
x
18
4
O-ring set (in/outlet)
Klingerseal/NBR (std), Klingerseal/EPDM,
Klingerseal/FKM
x
x
22
4
Stopper
AISI 316L
23
4
Valve ball
EPDM, PTFE, AISI 316L. PU, NBR, ceramic, FKM
x
25
1
Muffler
PP
x
27
2
Circlip
Cr3 coated steel
30
6
O-ring
NBR (standard), EPDM, FKM
37
8
Screw
Zinc plated steel / A4-70 *
38
8
Washer
Zinc plated steel / A4-70 *
61
1
Air valve complete
Body: brass (standard), AISI 316L or PET,
O-rings: NBR (standard), EPDM or FKM
x
90
1
Grounding set
AISI 316L
* = Aluminium / PTFE coated pump
Twin connection
130
2
Twin
in/outlet
Aluminium,
CI
Camlock connection
7000
2
Male
camlock
Aluminium
Drum pump
64
1
Pump tube
Aluminium
65
1
Handle
AISI 316L
17
4
Rubber foot
NBR
172
4
Washer
A4-70
173
4
Domed nut
A4-70
