5. SPARE PARTS
IOM manual Tapflo Metal Series 35

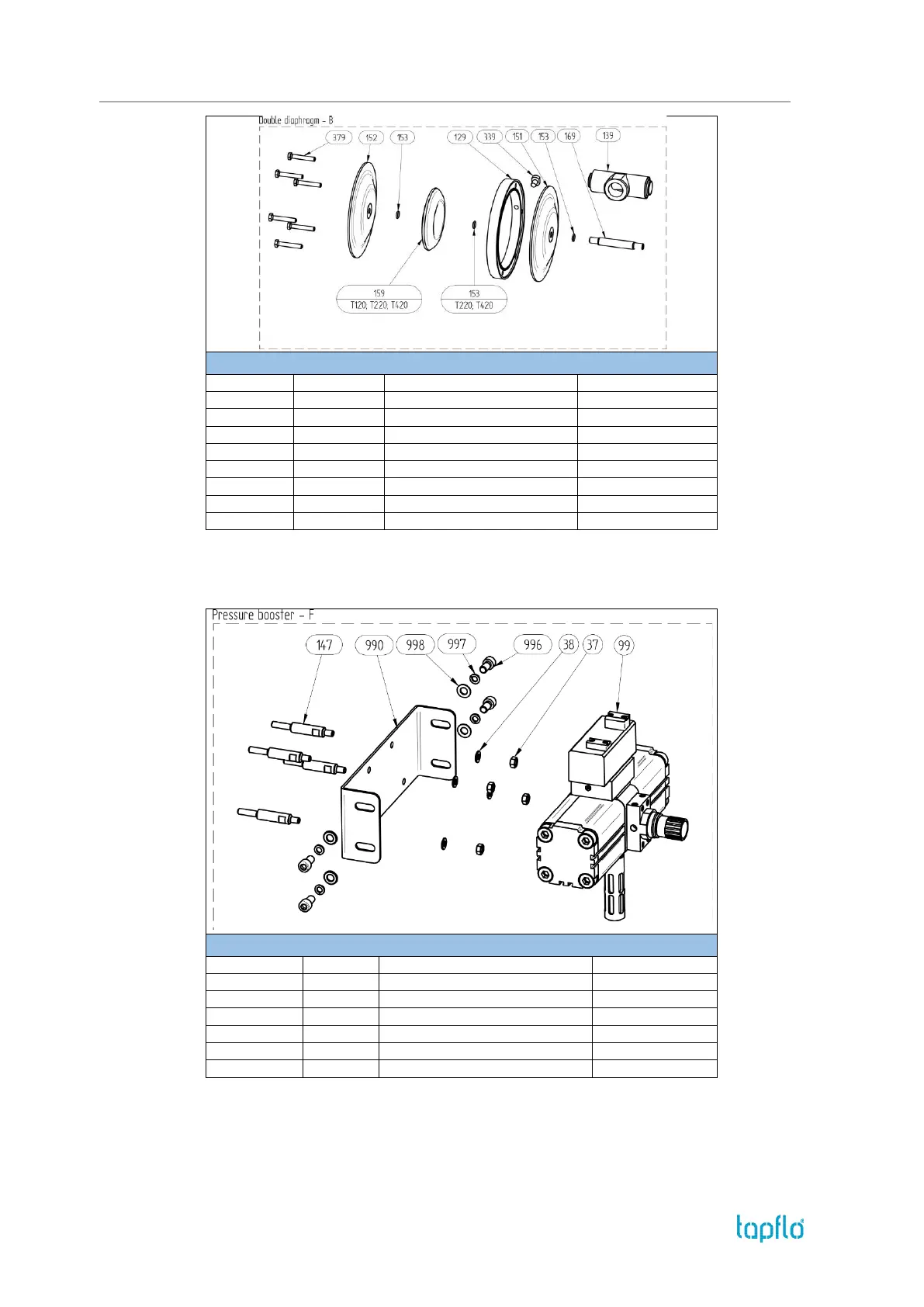

Double diaphragm system - TB
129
1
Set of spacers (right + left)
PA6 Aluminium
139
2
In/outlet
AISI 316L
151
2
Air side diaphragm
EPDM, PTFE, NBR
152
2
Liquid side diaphragm
EPDM, PTFE, NBR
153
4/6*
Diaphragm O-ring
EPDM, FKM, NBR
159
2**
Diaphragm spacer
PA6 Aluminium
169
1
Diaphragm shaft
AISI 304L
339
2
Spacer plug
PE1000
379
12/16***
Screw for TB pump
Zinc plated steel
* 4 for TXB70, TXB120 / 6 for TX220, TXB420
** TXB120, TX220, TXB420 only
*** 12 for TXB70, TXB120 / 16 for TX220, TXB420
Pump with pressure booster - TF
99
1
Booster
-
990
1
Booster mounting plate
AISI 304
996
4
Booster mounting screw
A4-70
997
4
Booster mounting washer
A4-80
147
4
Pin screw
AISI 316L
37
4
Additional nuts
AISI 304
38
4
Additional washers
AISI 304
