Target Windham - Step 7: Prepare Right Side Frame

13

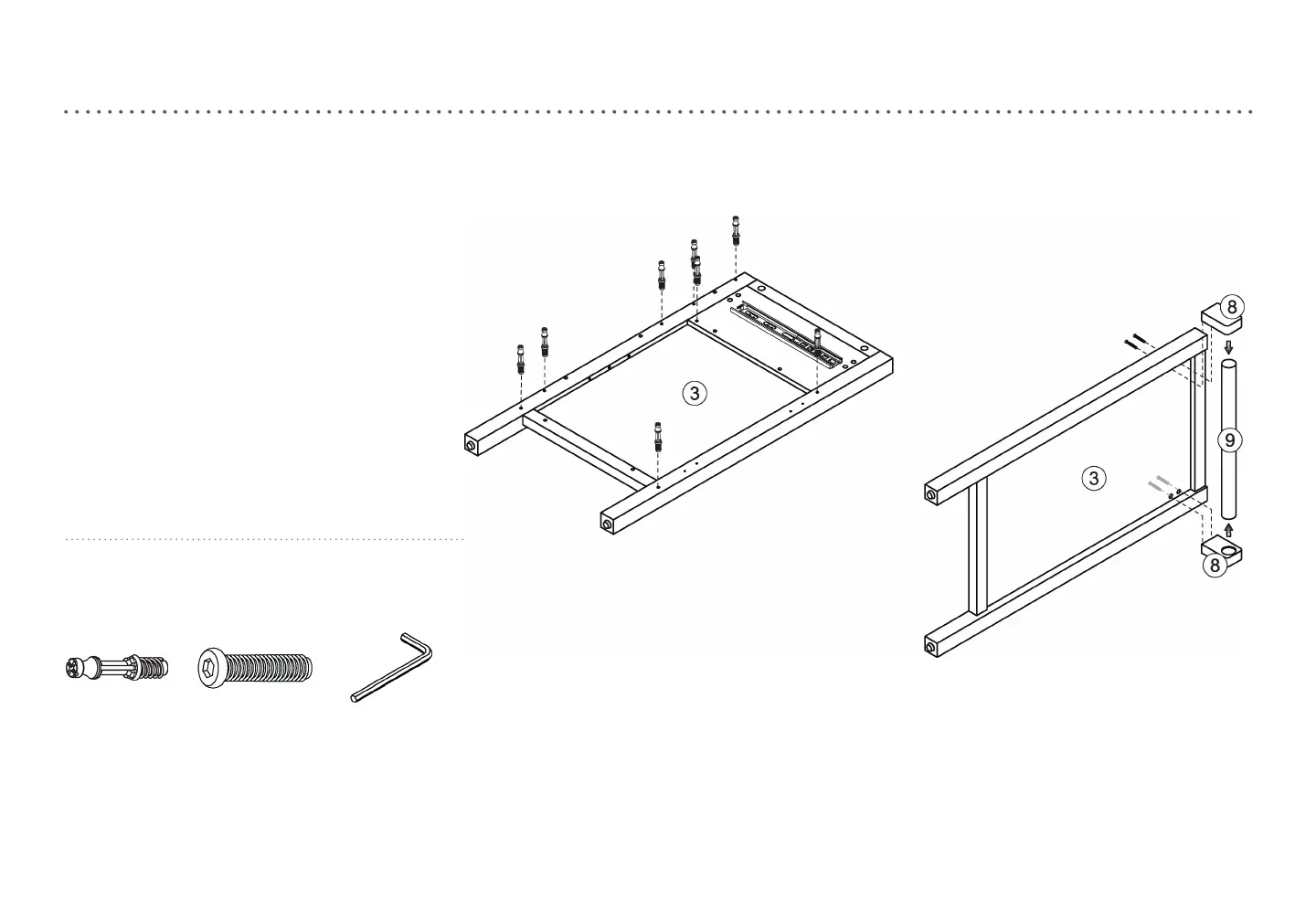

step 7: prepare right side frame
(H2) x 8
cam bolt
(H7) x 4
bolt
(H12) x 1
allen wrench
7.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
7.2. Screw-In cam bolts must be screwed down ush.
7.3. Refer to page 6 for instructions on how to use the cam lock system.
7.4. Do not over tighten bolts.
