Target Windham - Step 3: Attach Fixed Panel

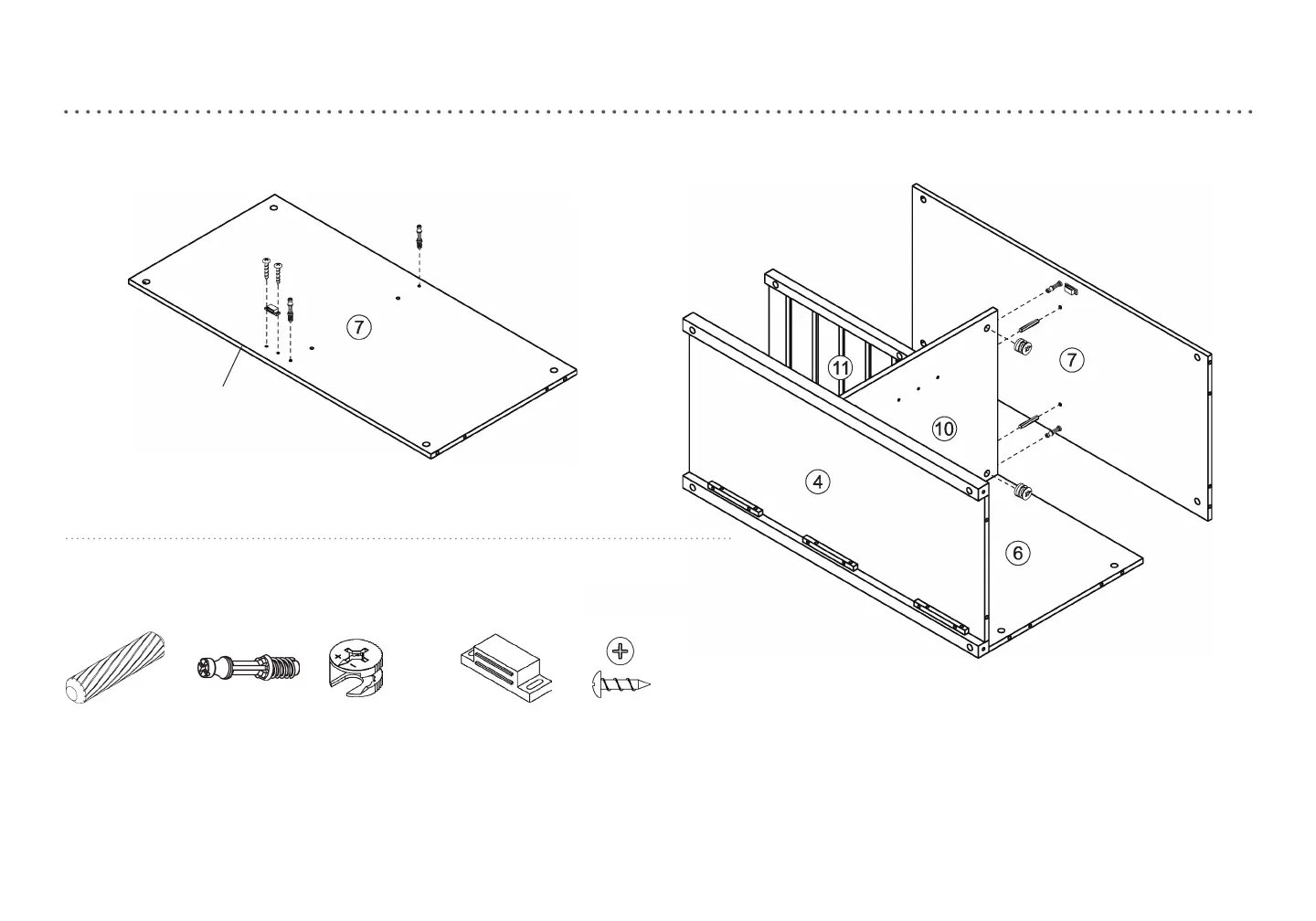

step 3: attach xed panel
(H1) x 2
wooden dowel
(H2) x 2
cam bolt
(H3) x 2
cam
(H10) x 1
magnet
(H4) x 2
pan head screw
3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
3.2. Screw-In cam bolts must be screwed down ush.
3.3.
Refer to page 6 for instructions on how to use the cam lock system.
3.4. Do not over tighten screws.
9
nished edge
pan head screw
