Target Windham - Step 2: Attach Bottom Panel

8

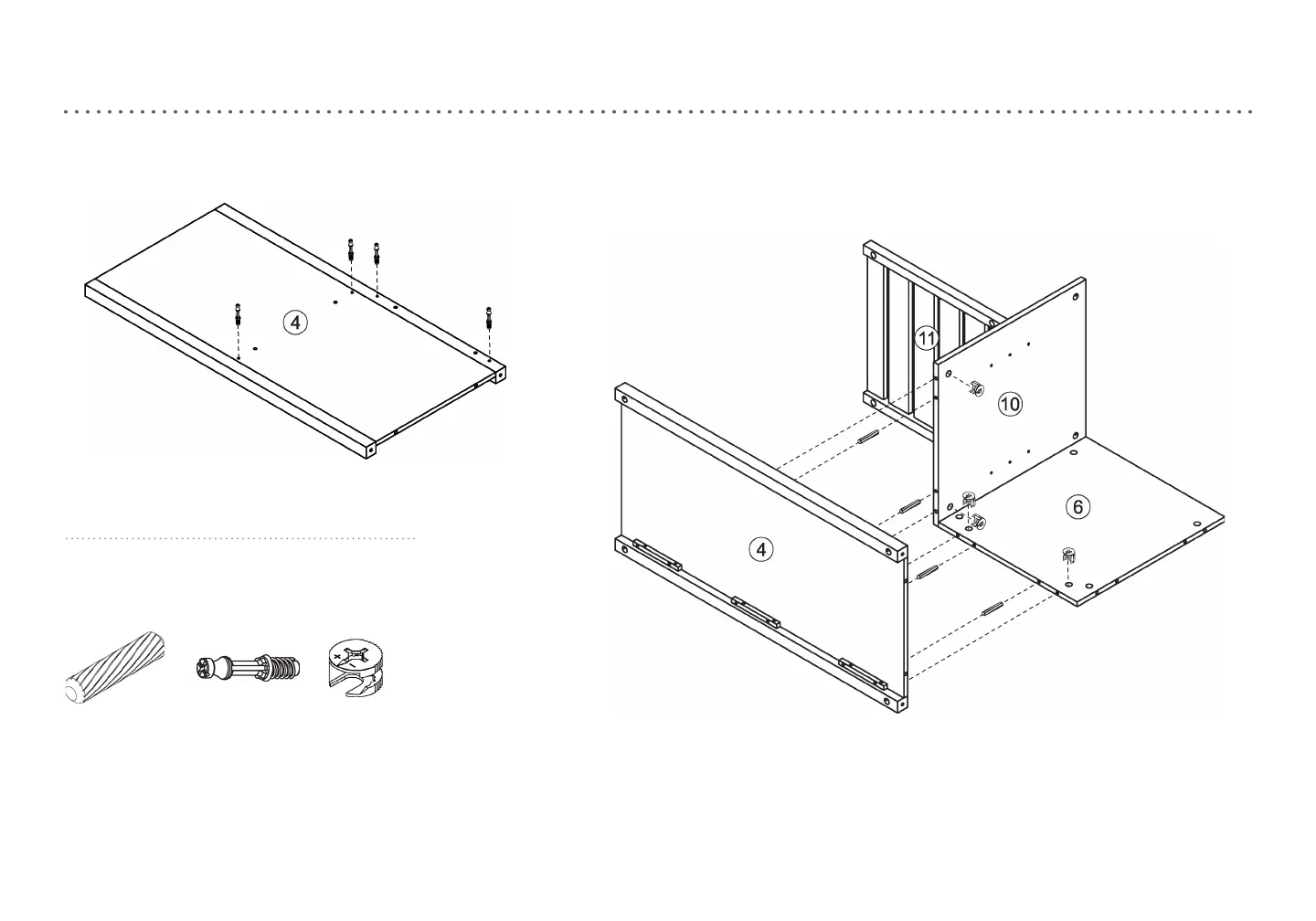

step 2: attach bottom panel
(H1) x 4
wooden dowel
(H2) x 4
cam bolt
(H3) x 4
cam
2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
2.2. Screw-In cam bolts must be screwed down ush.
2.3.
Refer to page 6 for instructions on how to use the cam lock system.
