18

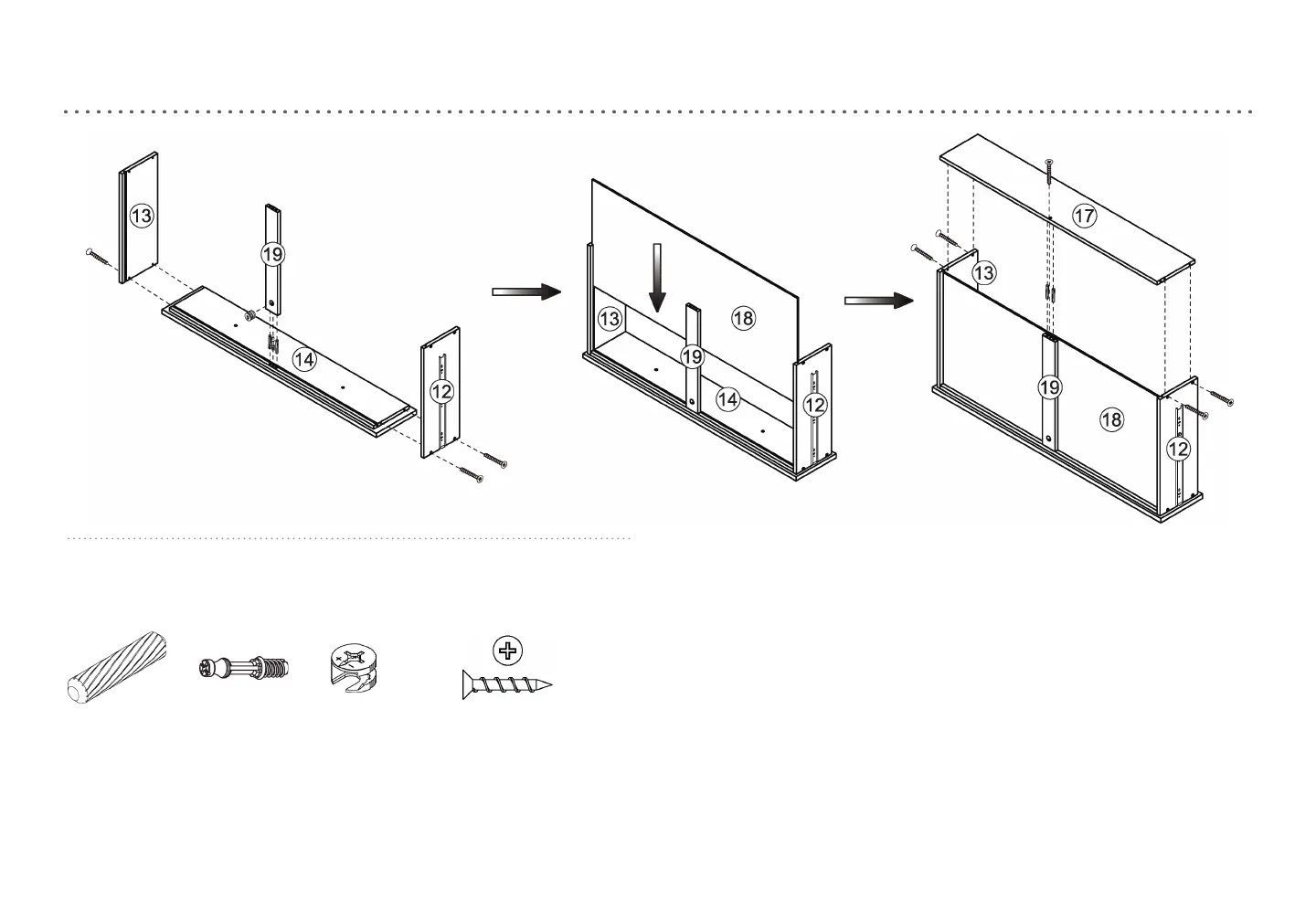

step 12: attach drawer face, left/right sides, support, bottom and back
(H1) x 4
wooden dowel
(H2) x 1
cam bolt
(H9) x 1
small cam
(H5) x 9
1” at head screw
12.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
12.2. Screw-In cam bolts must be screwed down ush.
12.3. Refer to page 6 for instructions on how to use the cam lock system.
12.4. Do not over tighten bolts or screws.
