Target Windham - Step 9: Attach Top Panel

step 9: attach top panel
(H1) x 6
wooden dowel
(H2) x 6
cam bolt
(H3) x 6
cam
(H13) x 3
small wooden
dowel
(H16) x 4
7/8” at head
screw

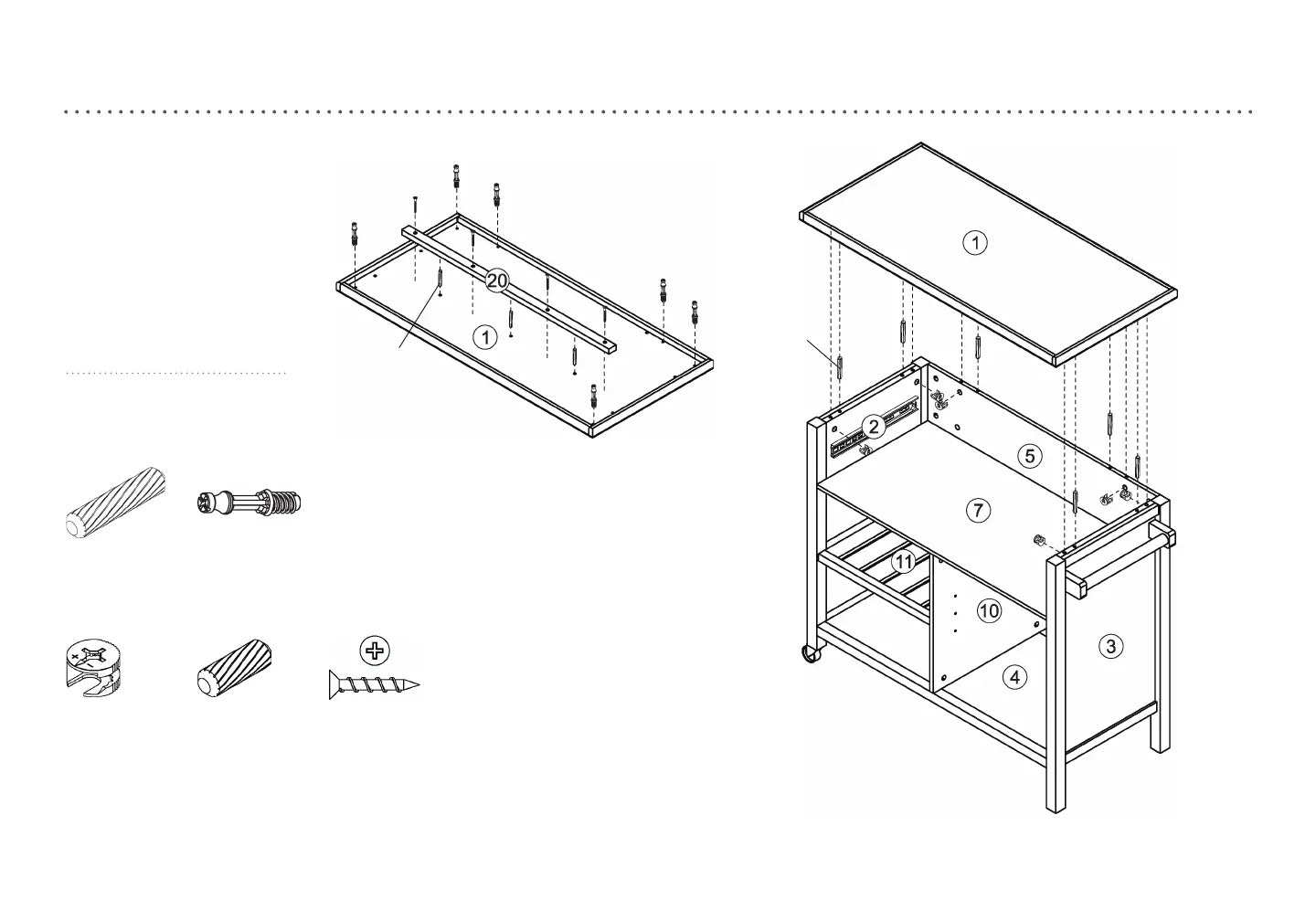

9.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
9.2. Screw-In cam bolts must be screwed down ush.
9.3. Refer to page 6 for instructions on how to use the cam lock system.
9.4. Align screws with pre-drilled holes.
9.5. Do not over tighten screws.
15
H13
H1
