TASCAM Model 16
2 - Names and Functions of Parts

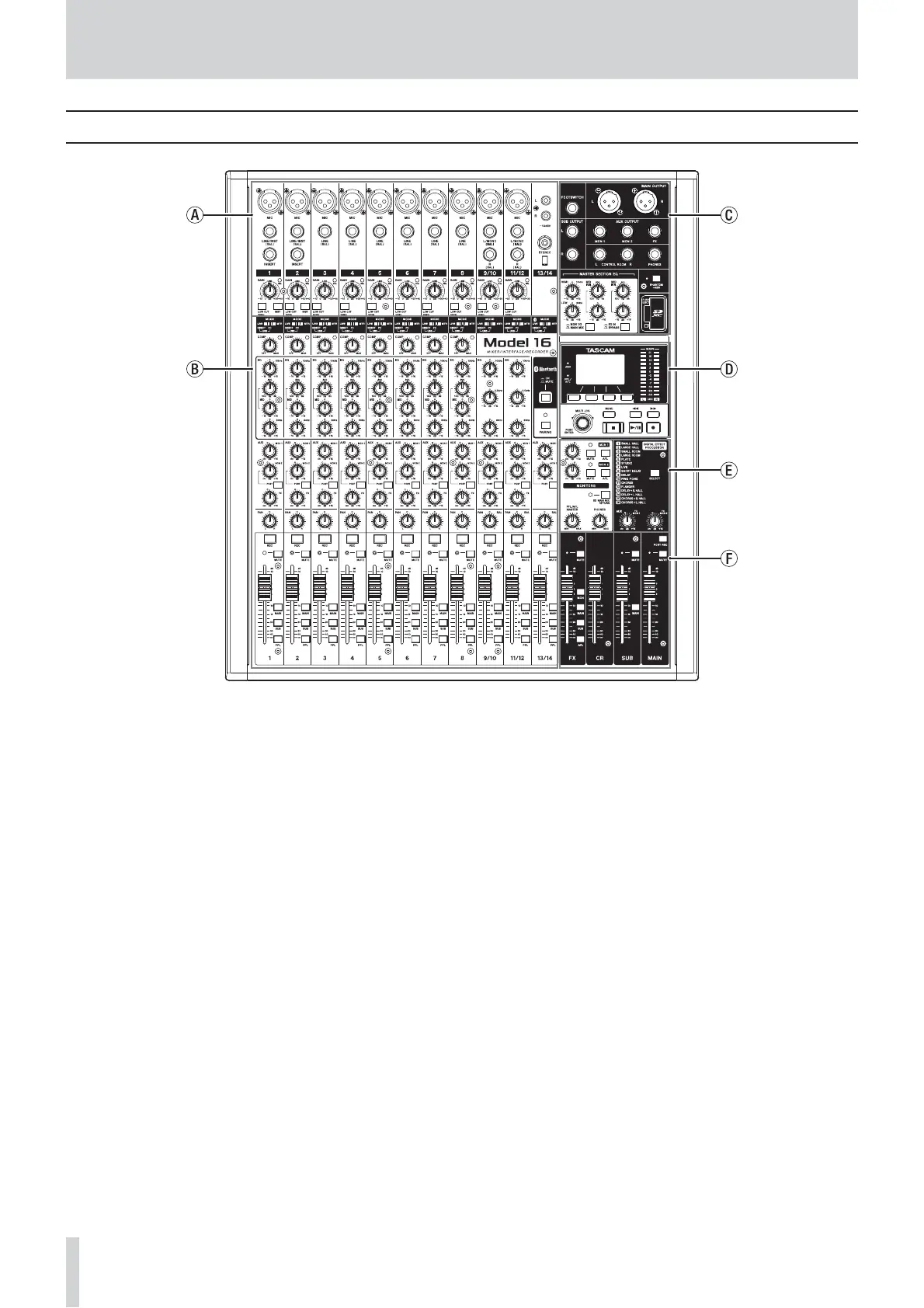

Top panel
a Analog input jack section
Use this section to connect the input jacks for each channel
and to adjust the input levels.
b Input channel mixing section
Use this section to choose input sources for each channel,
adjust compressors and equalizers, and set levels sent to
each bus (MAIN MIX L/R, PFL/AFL L/R, MONITOR OUT 1/2, FX,
SUB L/R).
c Analog output jack section
Use this section to connect the output jacks and adjust the
output equalizer.
d Screen operation section
Use this section to operate the meter, home and NFOV screens
shown on the display.
e Built-in effects operation section
Operate the built-in effects and adjust the output levels for
each output in this section.
f Analog output adjustment section
Adjust the output levels from the FX, MAIN OUTPUT, SUB
OUTPUT and CONTROL ROOM output connectors.
