3 – Preparations
Making connections

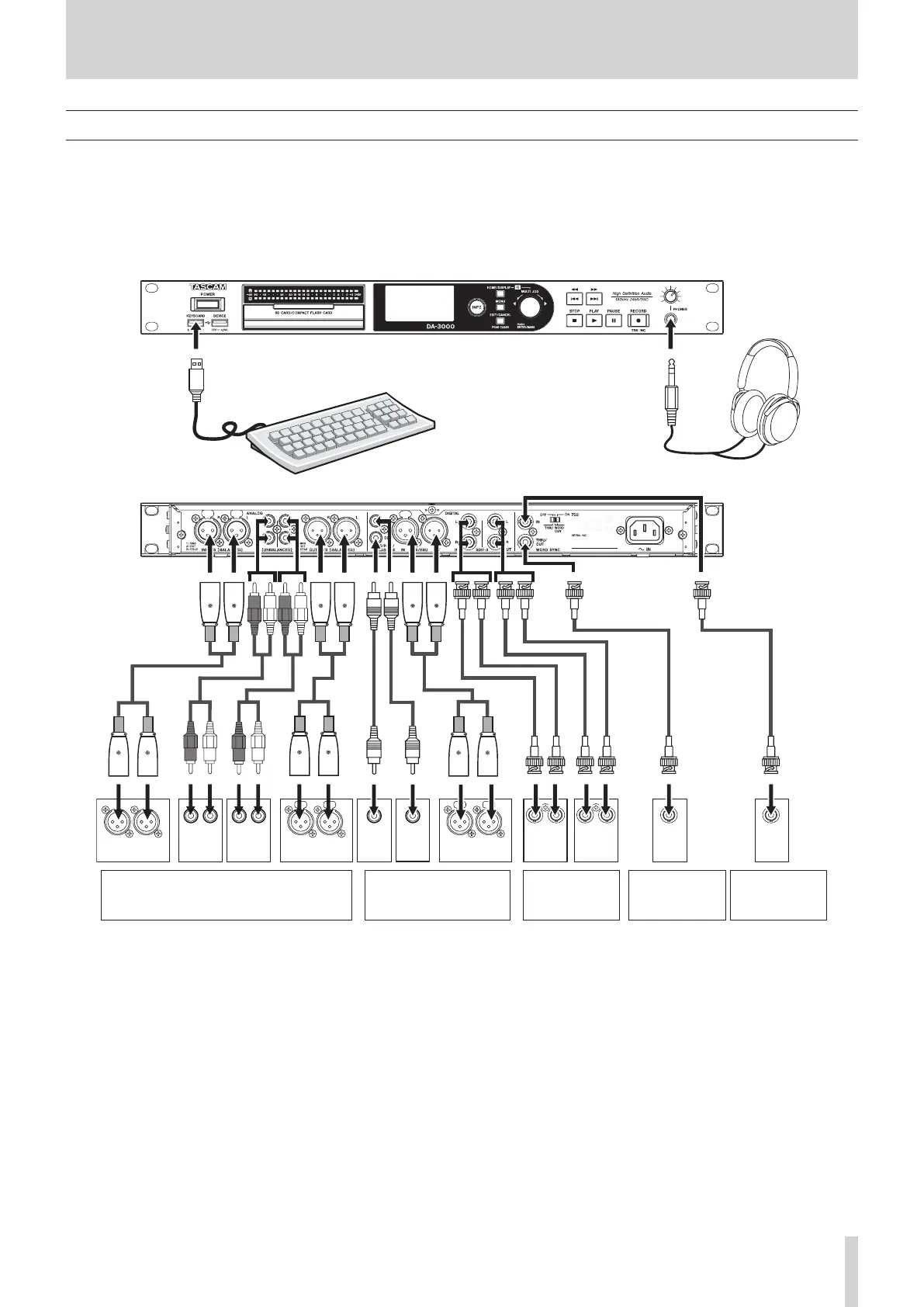

The following example shows connections with an DA-3000.
8
Precautions before making connections
•
Before making connections, read the operation manuals of the other equipment carefully and connect each one correctly.
•
Turn OFF (or put in standby) the power of this unit and all other devices before connecting them.
•
Connect all the devices to the same power supply line. When using a power strip, for example, use a thick cable with a high current
capacity to minimize variation in the power voltage.
Digital recorder,
or other device
Clock generator
or other device
ANALOG IN
(BALANCED)
LR
ANALOG OUT
(BALANCED)
LR
ANALOG
IN
(UNBALANCED)
LR
ANALOG
OUT
(UNBALANCED)
LR
DIGITAL
OUT
(S/PDIF)
DIGITAL
IN
(S/PDIF)
AES/EBU
IN OUT
SDIF-3 OUT
RL
SDIF-3 IN
RL
WORD
IN
WORD
OUT
USB keyboard
Headphones
Mixer, Recorder, Amplifier, or other device
Digital mixer, Digital
recorder, Digital amplifier,
or other device
External DAC or
other device
