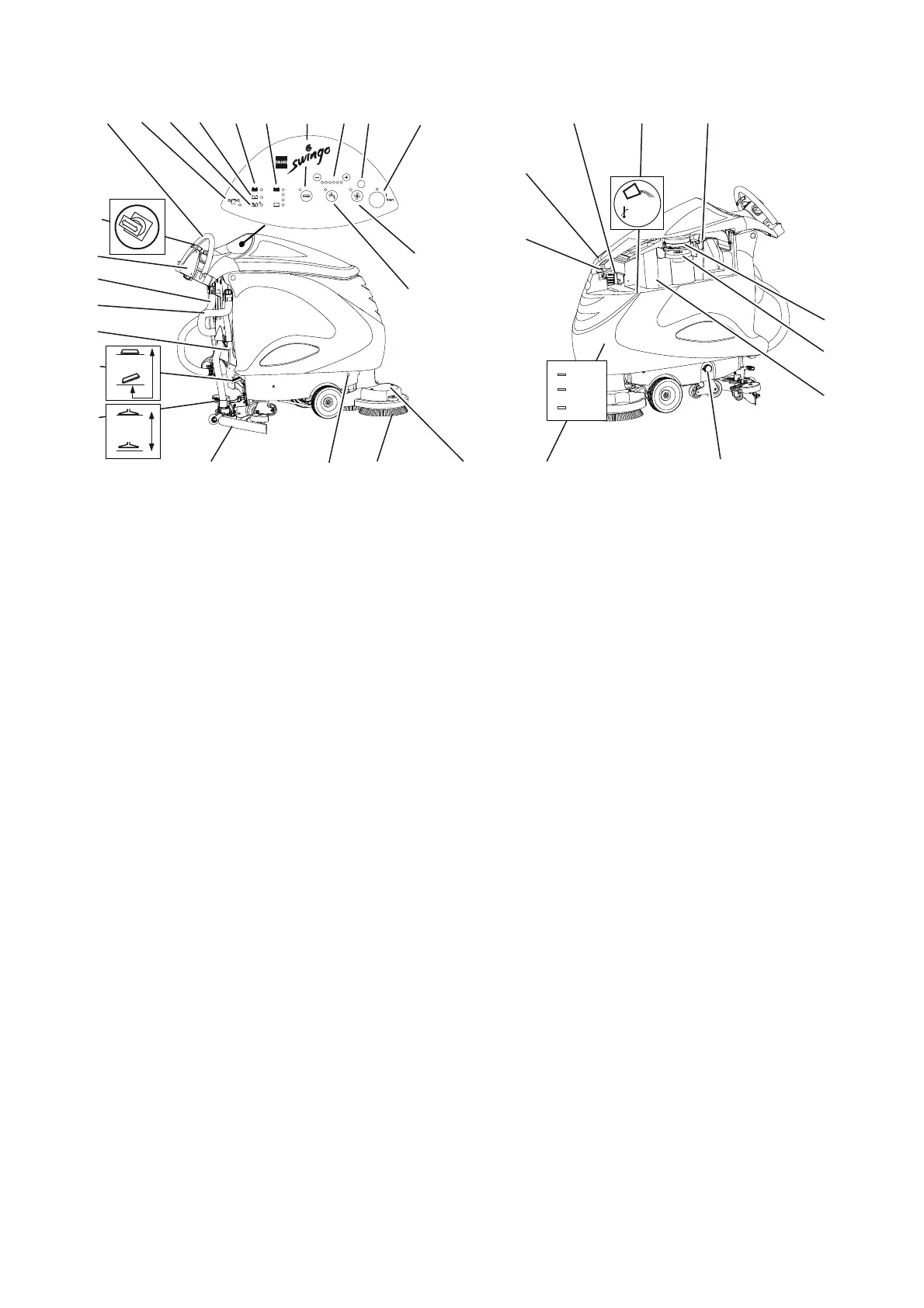

Driving switch
Operating hour counter (option)
Drain hose cleaning solution (blue cover)
Drain hose waste water (red cover)
Battery disconnection socket (coding)
Variant: Foot pedal tool
Foot pedal suction nozzle
Suction nozzle
Option: Lock battery compartment
Tools (brushes, pads, etc.)
Brush unit
Filling level indicator
Fresh water tank filter
Recovery tank
Float (Overfill protection recovery tank)
Suction filter
Dirt sieve
Fresh water tank
Dosage aid
Tank lid
Tank lid release
Cleaning solution supply button (ON/OFF)
Suction unit button (ON/OFF)
Key switch
ECO mode button (ON/OFF)
Cleaning solution supply amount button (+/-)
Tool drive button ON / OFF (only with 1255B EBU)
Battery level indicator
Battery display loaded
Battery display loading
Battery/PSU fault display
Service display
Driving handle
7
8910
6
3
4
5
33
1
293031 28 27 26 25
24
23
22
Eco
32
2
11 12
18 1719
13
14
15
16
21
20
max.60°C
max.140°F
MAX
3/4
1/2
