Blade change swingo 755
Blade change swingo 1255
Blade in the inner radius
Blade on the outer radius

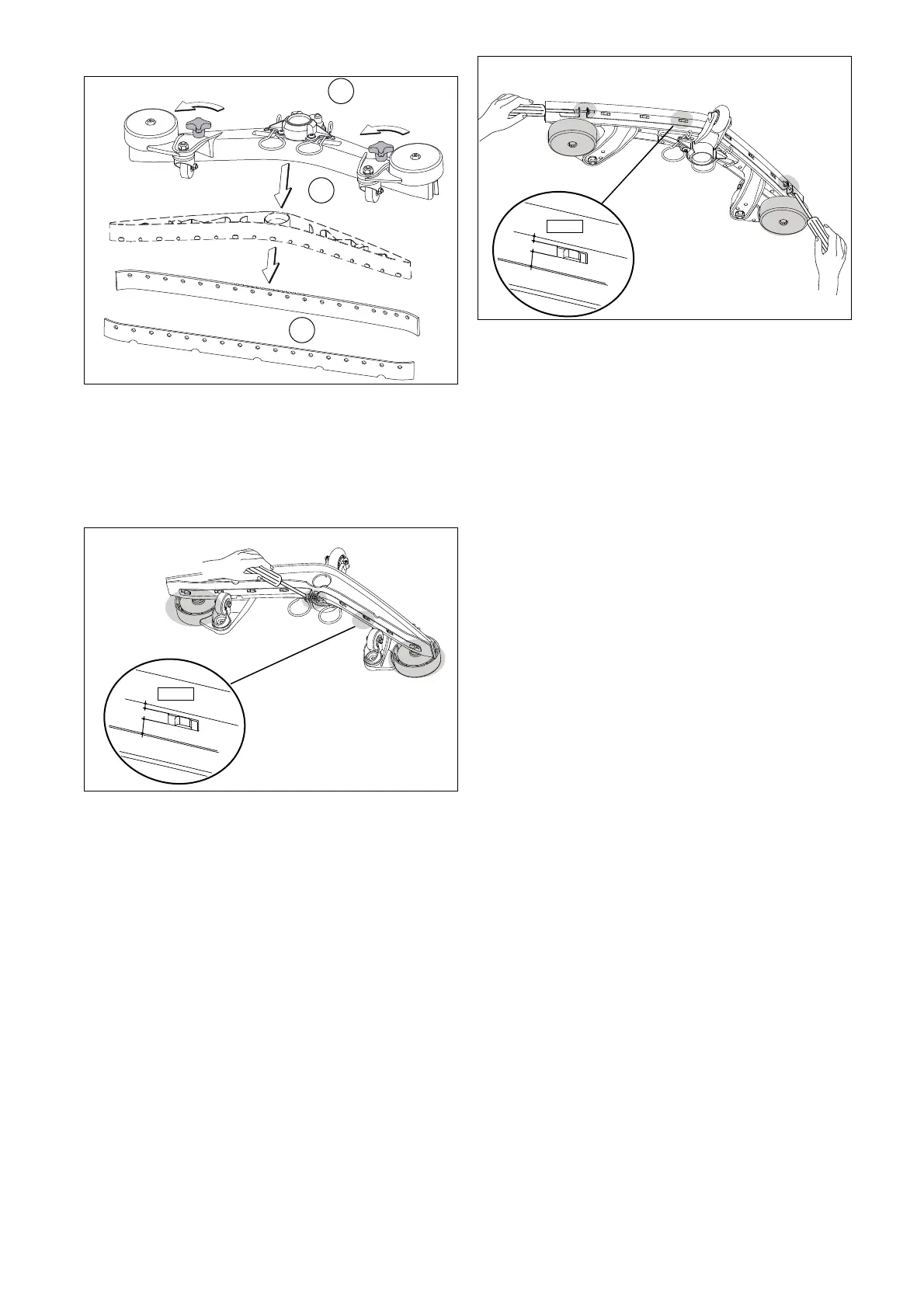

• Unscrew the star knobs (1), pull the blade body (2) out of
the squeegee body and remove the blades (3).
• Now you can turn the blades or replace them.
• Put the blade body (2) back in the squeegee body and
screw the star knobs (1) back on.
• Put the clean squeegee body with the rolls downward on a
solid surface (table, ground, etc.). (Detail I1)
• Loosen the screw (do not remove it completely) in the mid-
dle of the 2 parts of the tightening strap until the tightening
strap can be removed. (Detail I2)
• Clean squeegee body, blades and tightening strap under
running water with a brush.
• Mount the "turned" or new blade onto the squeegee body.
• Put the tightening strap in the right position on the blade
(Detail I3).
• Tension the tightening strap. (Detail I2)
3
1
2
I
I2
I1
I1
I3
X
X<
Y
Y
• Put the clean squeegee body with the rolls downward on a
solid surface (table, ground, etc.). (Detail A1)
• Loosen the screws (do not remove them completely) on the
left and right side of the 3-part tightening strap until the
tightening strap can be removed. (Detail A2)
• Clean squeegee body, blades and tightening strap under
running water with a brush.
• Mount the "turned" or new blade onto the squeegee body.
• Put the tightening strap in the right position on the blade
(Detail A3).
• Tension the tightening strap. (Detail A2)
A
A2
A2
A1
A1
A3
X
X<
Y
Y
