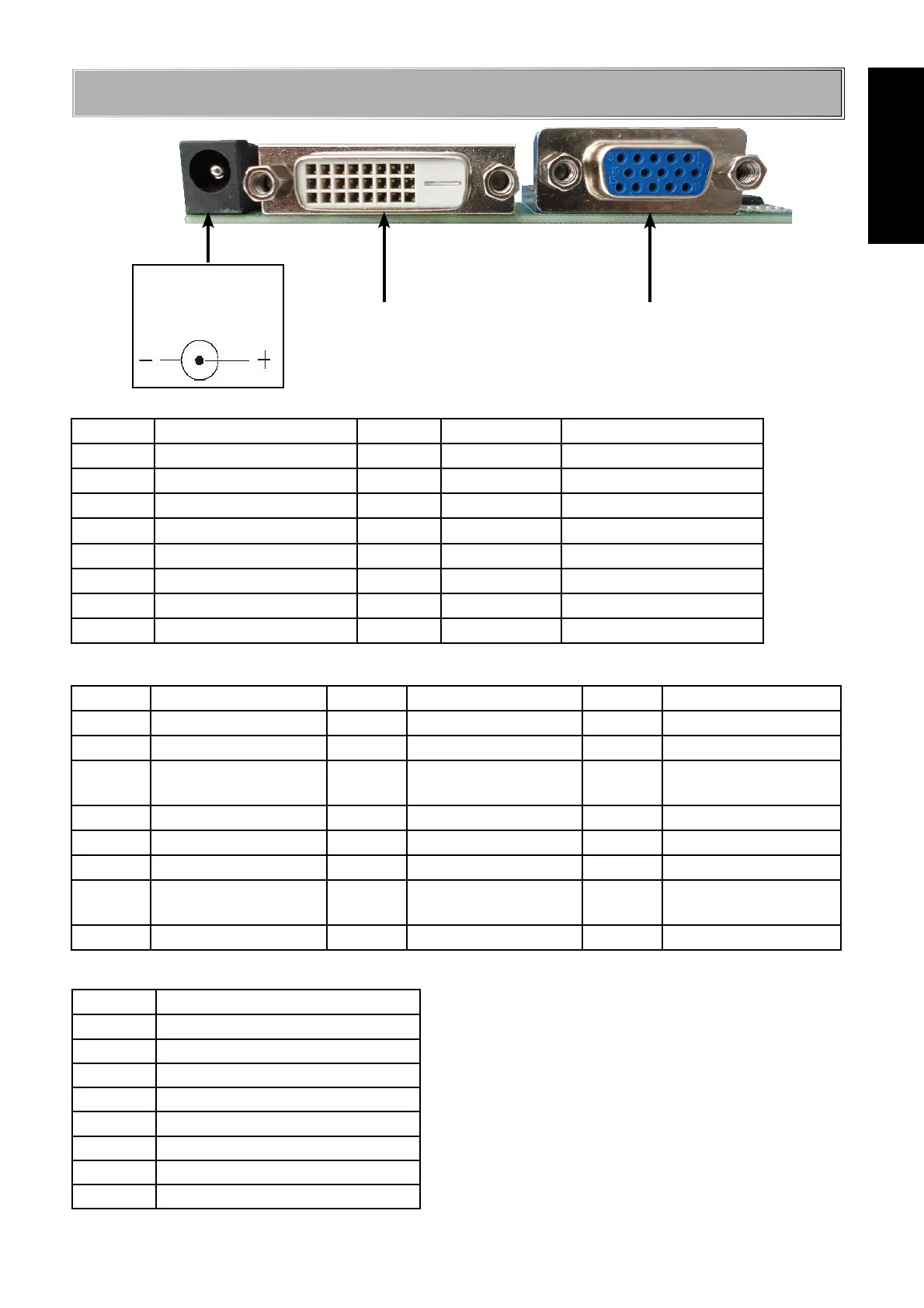

3 INPUT SOURCE
DVI-D Input
VGA Input
Power supply
Input
(12Vdc version)
VGA CONNECTOR:
Pin No. Description Pin No. Type Description
1 Analog Red 9 VGA 5Vdc + 5Vdc
2 Analog Green 10 SGND Sync GND
3 Analog Blue 11 NC No Connection
4 No Connection 12 SDA DDC Serial data
5 GND 13 HSYNC Horizontal sync
6 Red return 14 VSYNC Vertical sync
7 Green return 15 SCL DDC Data clock
8 Blue return
DVI-D CONNECTOR:
Pin No. Type Pin No. Type Pin No. Type
1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-
2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3 T.M.D.S. Data2/4
shield
11 T.M.D.S. Data1/3
shield
19 T.M.D.S. Data0/5
shield
4 T.M.D.S. Data4- 12 T.M.D.S. Data3- 20 T.M.D.S. Data5-
5 T.M.D.S. Data4+ 13 T.M.D.S. Data3+ 21 T.M.D.S. Data5+
6 DDC Clock 14 + 5V Power 22 T.M.D.S. Clock Shield
7 DDC Data 15 GND
(5V, H-Sync, V-Sync)
23 T.M.D.S. Clock+
8 Analog Vertical Sync 16 Hot Plug Detect 24 T.M.D.S. Clock-
SERIAL PORT CONNECTOR:
Pin No.
Type
1 DCD, Data carrier detect
2 RXD, Receive data
3 TXD, Transmit data
4 DTR, Data terminal ready
5 GND
6 RTS, Request to send
7 CTS, Clear to send
8 RI, Ring indicator
