8 MNL202.3
ENGLISH

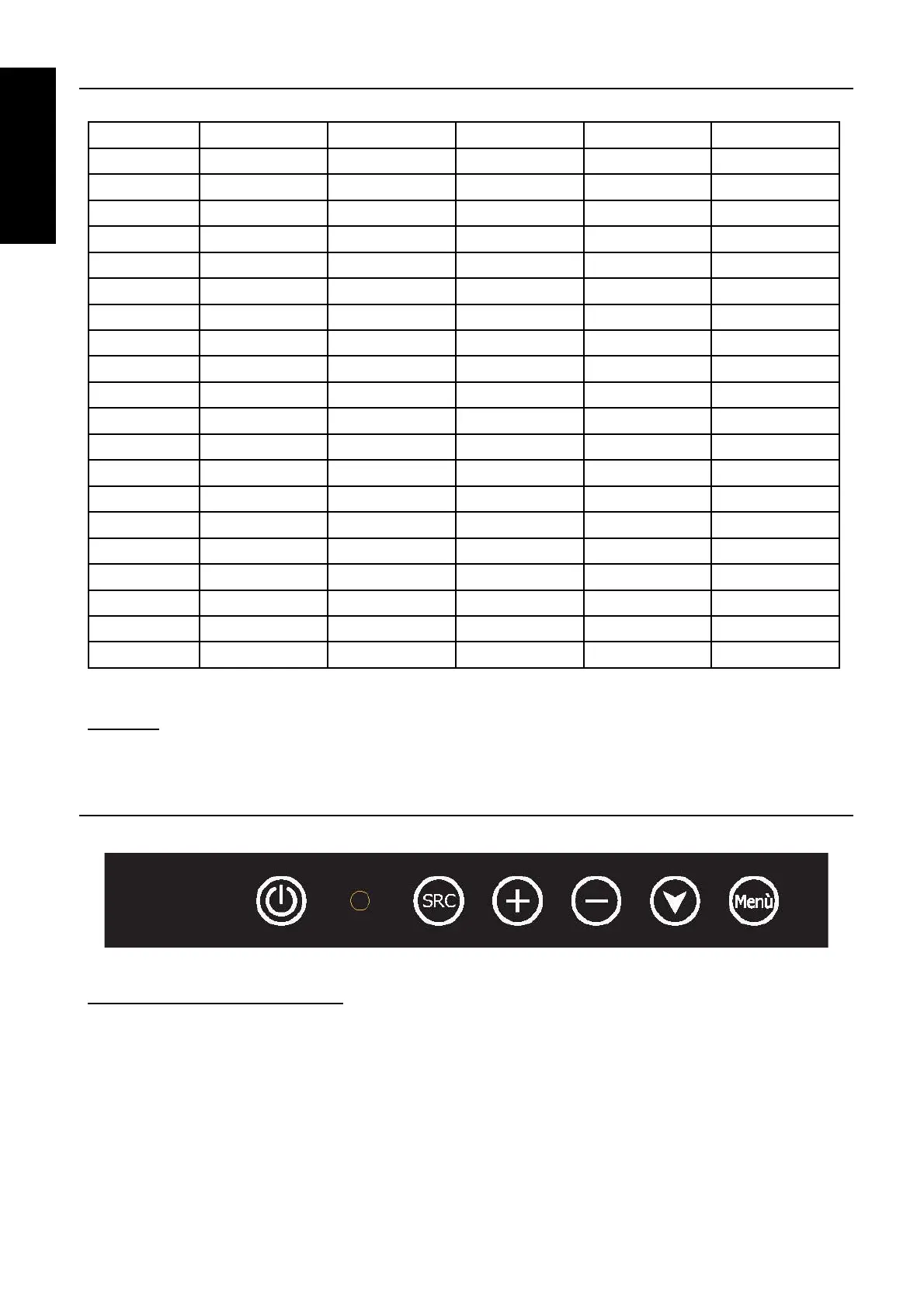

1.9 SUPPORTED INPUT FORMATS
Mode Resolution Refresh Rate H-Frequency Pixel freq. Remarks
VGA 640 X 350 70 Hz 31.47 KHz 25.175 MHz VESA STD
VGA 720 X 400 59.940 Hz 31.469KHz 25.175 MHz IBM VGA 3H
VGA 640 X 480 60 Hz 31.5 KHz 25.175 MHz Industry STD
VGA 640 X 480 72 Hz 37.9 KHz 31.5 MHz VESA STD
VGA 640 X 480 75 Hz 37.5 KHz 31.5 MHz VESA STD
SVGA 800 X 600 60 Hz 37.9 KHz 40 MHz VESA Guid.
SVGA 800 X 600 72 Hz 48.1 KHz 50 MHz VESA STD
SVGA 800 X 600 75 Hz 46.9 KHz 49.5 MHz VESA STD
XGA 1024 X 768 60 Hz 48.4 KHz 65 MHz VESA Guid.
XGA 1024 X 768 70 Hz 56.5 KHz 75 MHz VESA STD
XGA 1024 X 768 75 Hz 60 KHz 78.75 MHz VESA STD
SXGA 1280 X 1024 60 Hz 64 KHz 108 MHz VESA STD
SXGA 1280 X 1024 75 Hz 80 KHz 135 MHz VESA STD
WXGA 1280 X 768 60-75 Hz 47.7-65 KHz 80.14 MHz NOT STD
WXGA 1366 X 768 60-75 Hz 47.7-65 KHz 80 MHz NOT STD
WSXGA 1440 X 900 60-75 Hz 65 KHz 150 MHz NOT STD
WSXGA 1680 X 1050 60 Hz 70 KHz 150 MHz NOT STD
UXGA 1600 x 1200 60 Hz 75 KHz 162 MHz NOT STD
* FULL HD 1920 x 1080 60 Hz 69 KHz 138 MHz NOT STD
* WUXGA 1920 x 1200 60 Hz 69 Hz 154 MHz NOT STD
Table 1
* NOTE:
Available for the second version only
1.10
NAVIGATION KEY
Use of external OSD keyboard:
• “Menu/ enter”= Menu & Enter Key;
• “Down” = Down Key / Auto confi g;
• “ - ”= Decrease Key / Left Key;
• “+”= Increase Key / Right Key;
• “SRC / Exit”= Source Select / Exit;
• “Power”= ON / ST-by Monitor.
Osd menu function
Press “MENU” button on navigation key, set rear the monitor to display OSD Menù on screen.
