Taurus X71 - Page 13

13

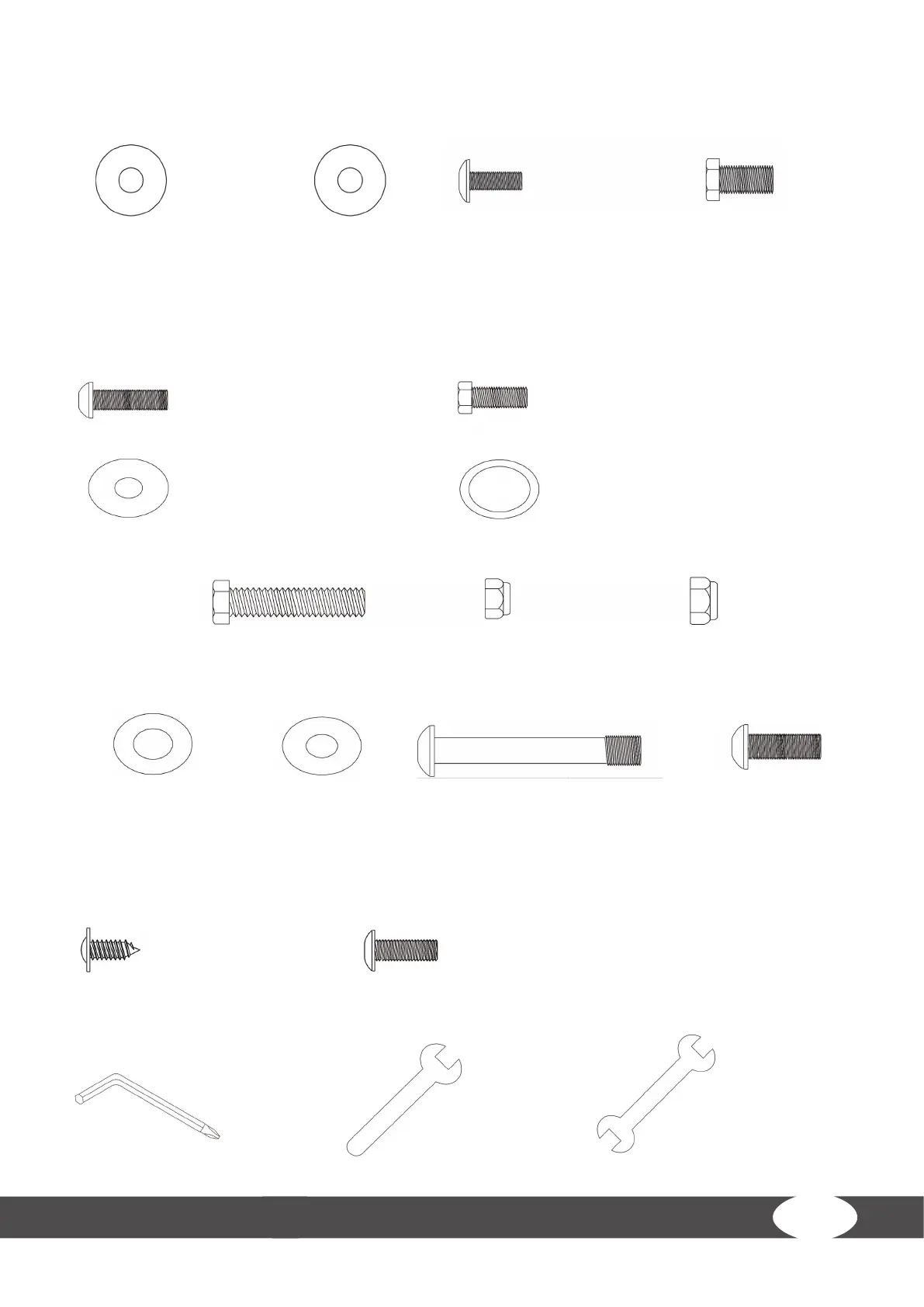

Screws and tools
Step 1:
5/16“x 23 x 1.5T
washer (97) 4x
5/16“x 23 x 2T curved
washer (102) 2x
M5 x 10mm
screw (78) 4x
(pre-mounted on
the back of the
console)
5/16“ x 15mm
screw (70) 6x
5/16“ x 15mm screw
(75) 6x
5/16“x 23 x 1.5T washer
(97) 2x
5/16“ x 15mm hexagon
screw (70) 2x
Ø 17 wavy washer (101) 2x
5/16“ x 32mm hexagon
screw (71) 2x
5/16“ x 7T nylon nut
(105) 2x
3/8“ x 7T nylon nut (89)
2x
3/8“ x 19 x 1.5T washer
(94) 2x
5/16“ x 20 x 1.5T
washer (98) 4x
3/8 x 2-1/4“ screw
(77) 2x
5/16 x 3/4“ screw (76)
2x
Ø3.5 x 12mm screw
(84) 8x
M5 x 15mm screw (79)
8x
M5 Alen key/
screwdriver (108)
1x
12mm wrench (110)
1x
13/14 mm
wrench (111)
2x
Step 2:
Step 3:
Step 4:
Tools
