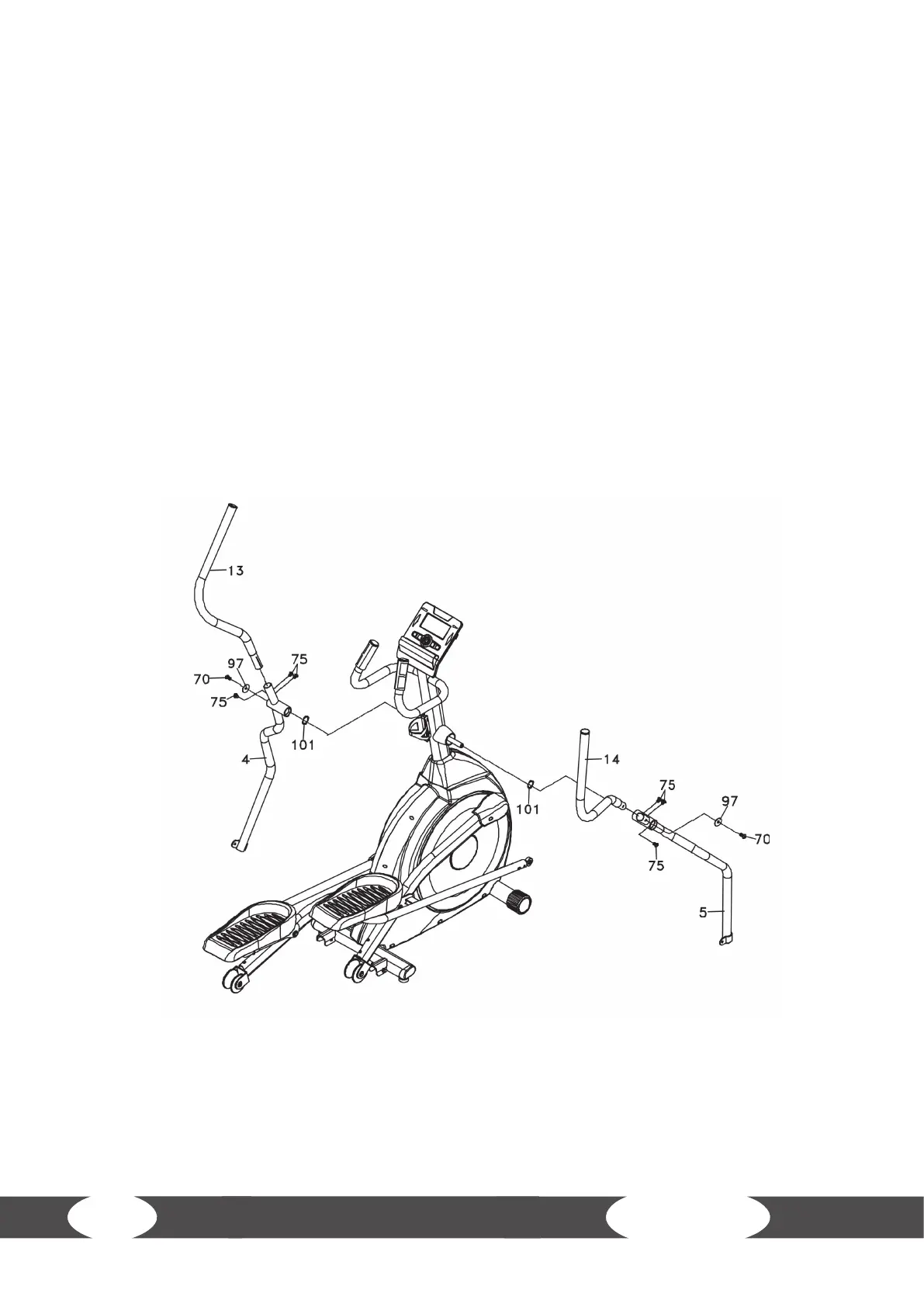

Step 3: Assembly of the handles
1. Fasten the two washers (101) on the right and left side of the handle axles.
2. Slide the lower left and right side of the handles (4 and 5) on the corresponding side of the axle.
3. Place the two at washers (97) on the two hexagonal screws (70) and fasten them on the thread
holes on the end of the axle.
4. Fasten the left and right handles (13 and 14) on the lower left and right handles (4 and 5) with
six screws (75).
5. Tighten all screws with the tool.
