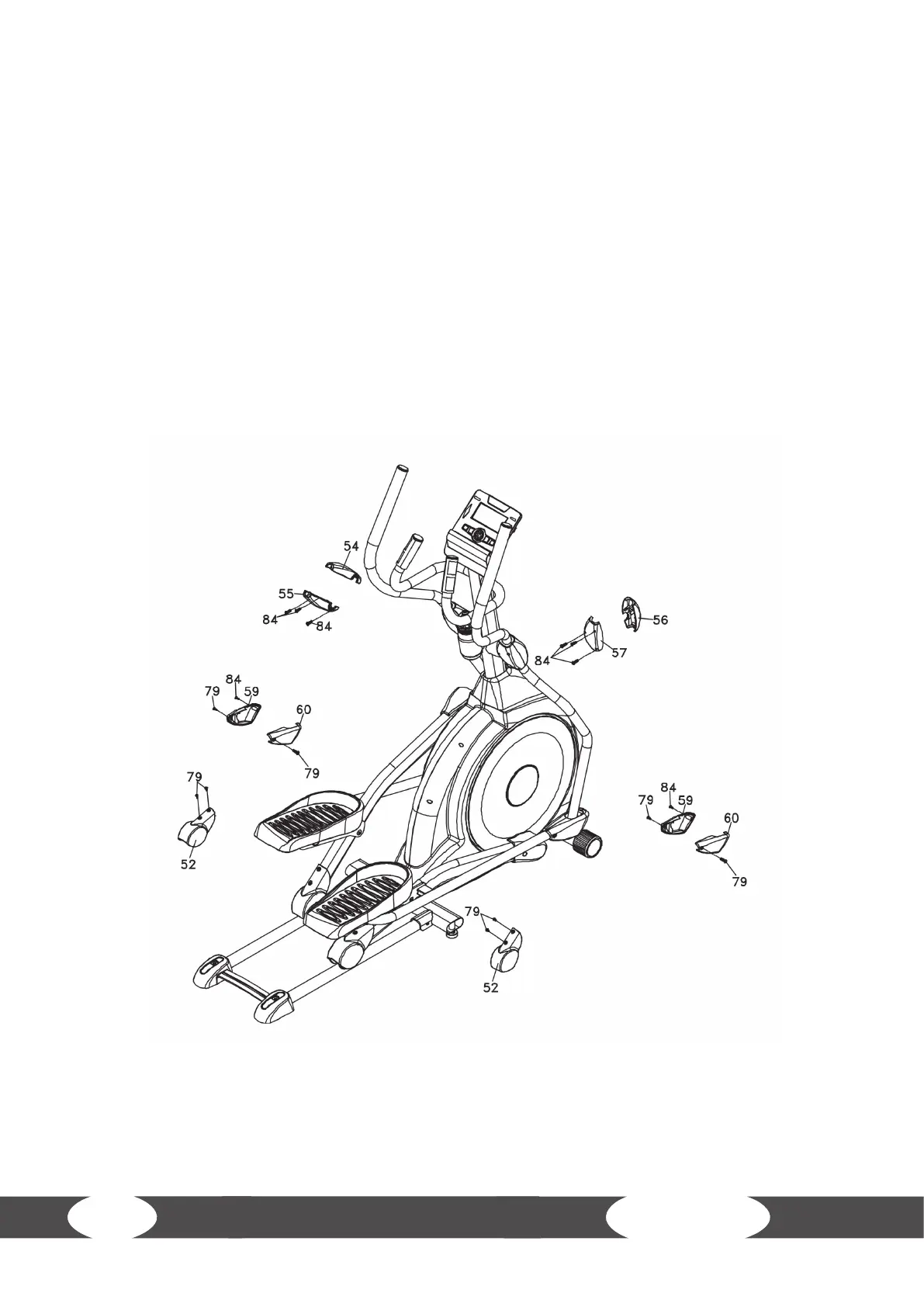

Step 5: Assembly of the covers
1. Mount the covers for the connection arms (L (59) and R (60)) through the connection between
the end of the bar and the lower handles (L (4) and R (5)) with four screws (79) and two screws
(84).
2. Mount the two wheel covers (52) with four screws (79).
3. Mount the front handle covers (L (54) and R (56)) and the rear handle covers (L (55) and R (57))
through the handle axle connections with six screws (84).
4. Check that all previous screws are tightened and re-tighten them with the tool if necessary.
