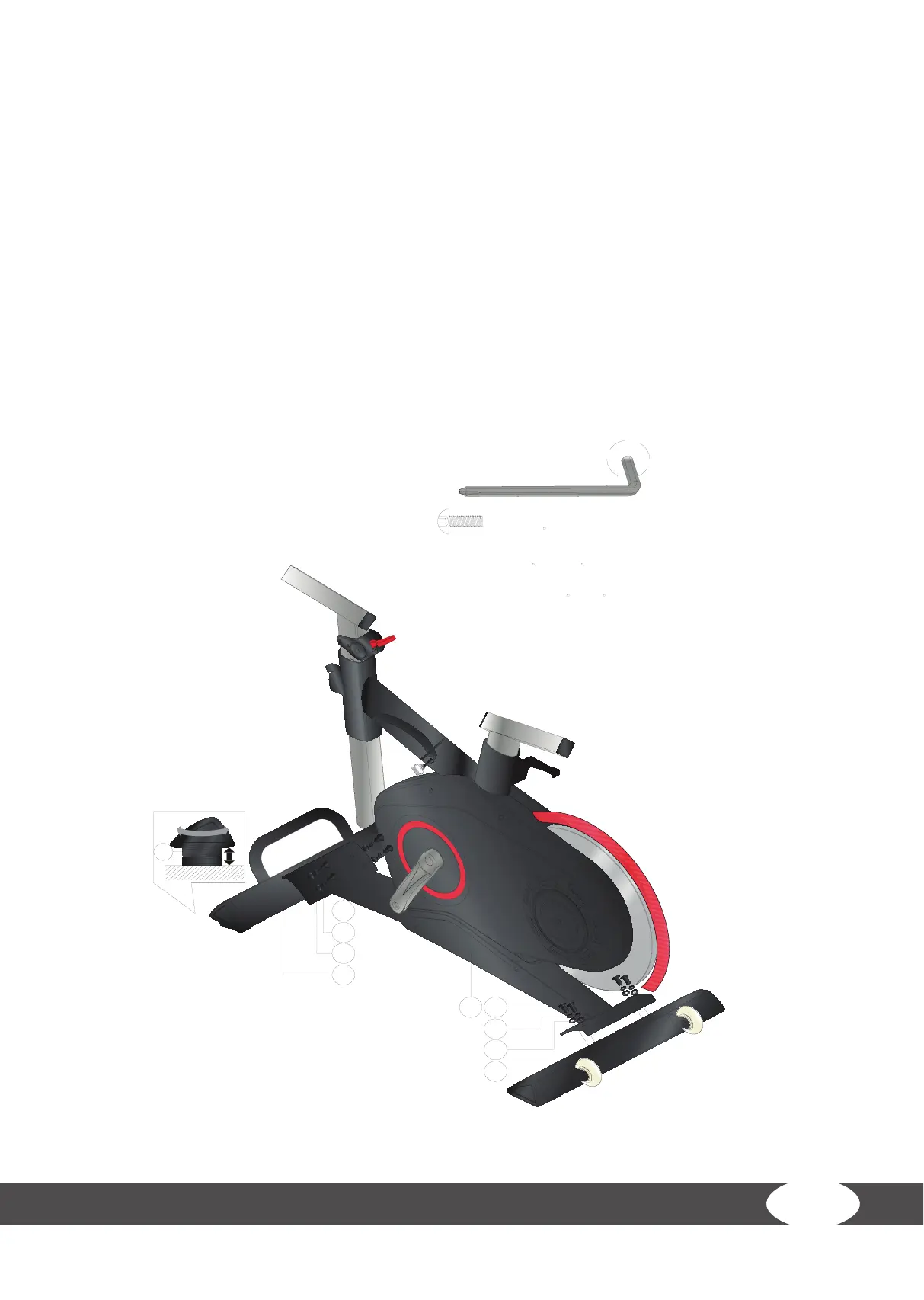

Step 1: Mounting the front and rear base
(1) Mount the rear base (3) to the main frame (1) with Allen screws (5), washers (7), and spring washers.
Make that the transport wheels point outwards or away from the equipment.
(2) Mount the front base (2) to the main frame with Allen screws (5), washers (7), and spring washers.
(3) Level out possible unevenness with the adjusting screws (59) on the front and rear base.
1)
2)
M8*1.25*20L
(x8)
D15.4*D8.2*2T
D16*D8.
5*1.2T
(x8)
(x8)
Step-1
5
6
7
2
1
5
6
7
3
5
6
7
59
