Taurus Z9 - Page 12

Z9
12

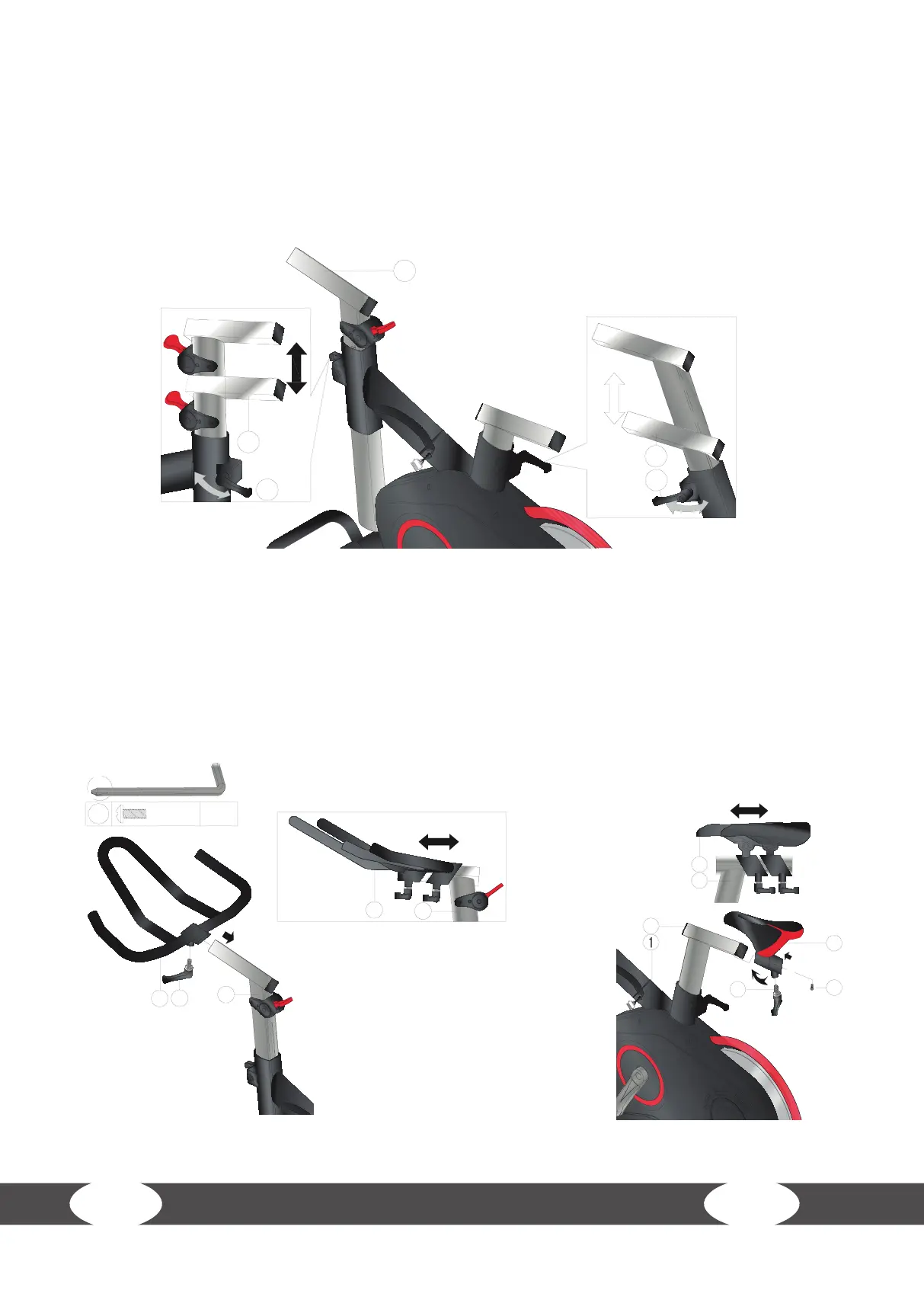

Step 2: Mounting the handlebar and the saddle
The connecting rod (8) and the saddle post (9) are already pre-mounted and both can be innitely adjusted
in height with the knob.
Pay attention to the fact that the safety lines on connecting rod (handlebar) and saddle post must
not be exceeded when adjusting.
Step 3: Mounting the handlebar and the saddle
(1) Mount the handlebar (13) to the handlebar post with the adjusting knob (12).
(2) Mount the seat (10) to the saddle post (9) with the adjusting knob (12) and a screw (97).
1)
Step- 2
8
DOWN
UP
DOWN
UP
8
9
22
22
1)
Step-3
13
8
9
9
13
8
M5*10L
97
(x1)
12
10
12
10
97
1)
Step- 3
13
8
9
9
13
8
M5*10L
97
(x1)
12
10
12
10
97
