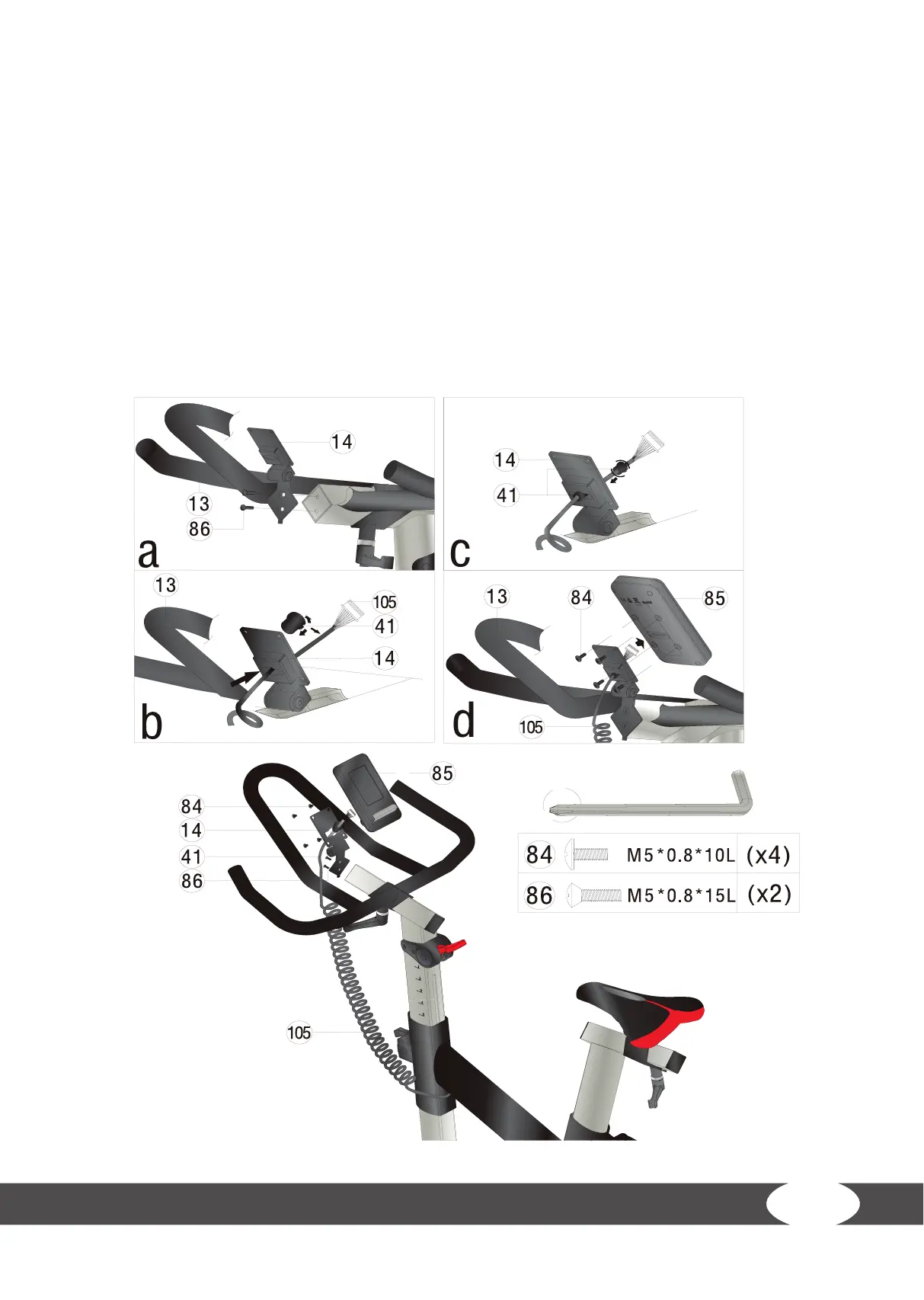

Step 4: Mounting the console
(1) Mount the console mount (14) to the connecting rod (handlebar) with a screw (86) (g. a).
(2) Insert the console cable (105) through the hole of the console mount (g. b).
(3) Connect the cable (41) (g. c).
(4) Mount the console (85) to the mount with a screw (84) (g. d).
